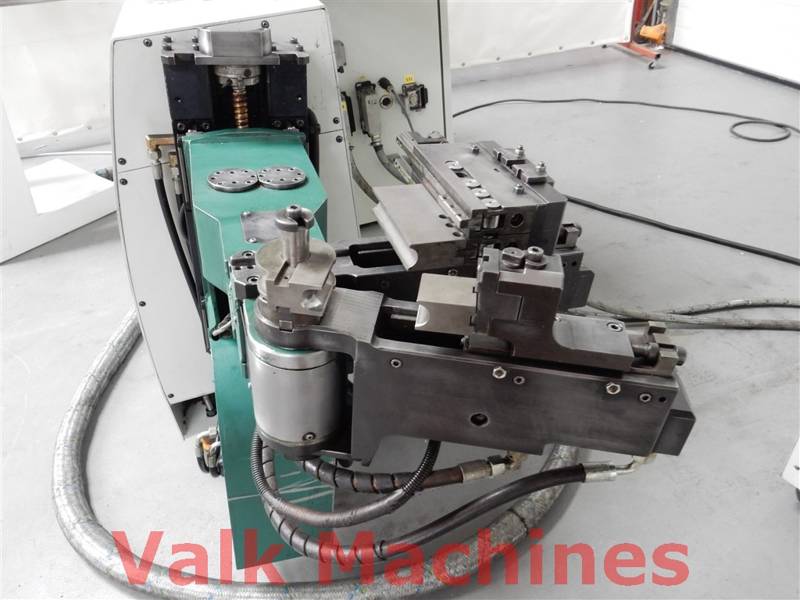

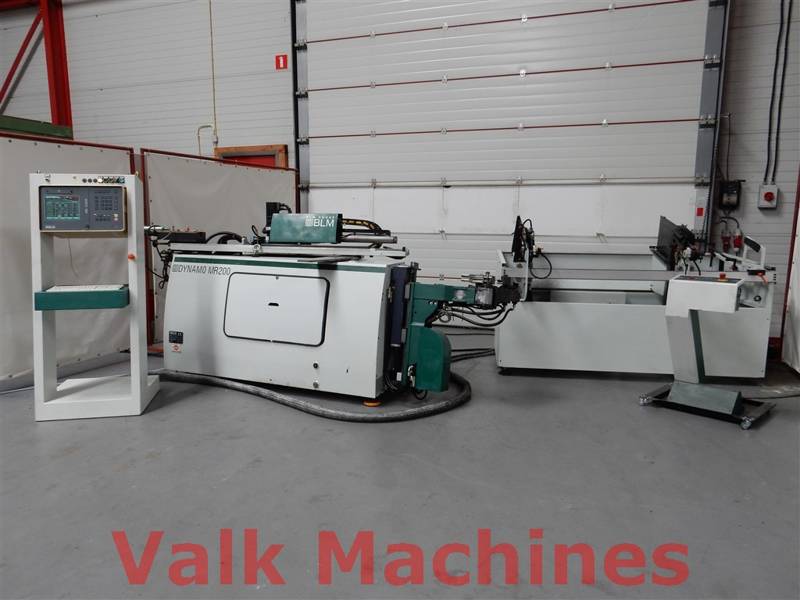

5-axis CNC pipe bendingmachine BLM

TECHNICAL SPECIFICATIONS

Bending capacity:
Tube R=45 kg/mm2:  Min. 4 mm
Max. 18 x 1,5 mm
Tube R = 35kg/mm2:  Min. 4 mm
Max. 20 x 1,2 mm
Tube Brass / Alu / Copper: Min. 4 mm
Max. 25,4 x 1,2 mm

Positioning speed X-axis: 2000 mm/sec.
Bending speed Y-axis: 400°/sec.
Rotation speed Z-axis: 900°/sec.
Rotation speed Q-axis: 100°/sec.
Positioning speed T-axis: 500 mm/sec.

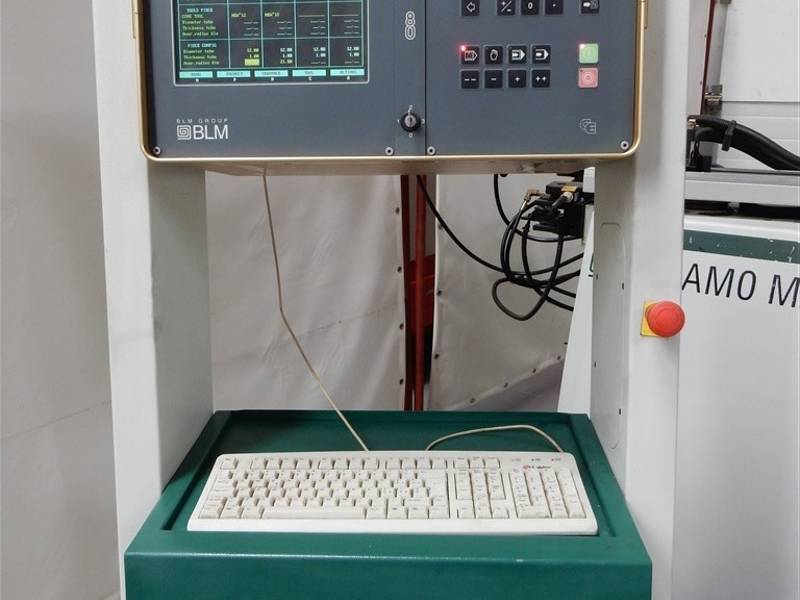

Controller: Cybelec DNC 80

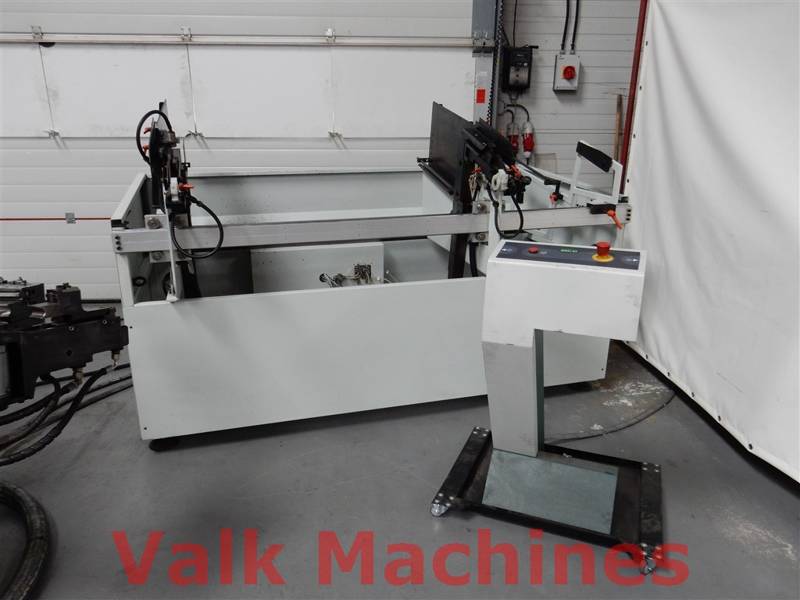

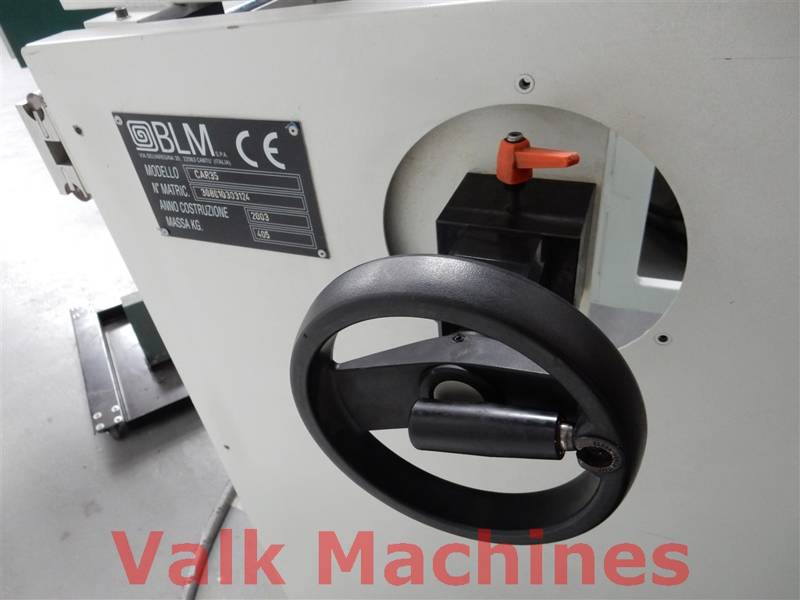

Tube feeder/bunker: BLM CAR 35
Max. tube diameter feed: 35 mm
Max. tube length feed: 2000 mm

Hydraulic pressure: 120 bar
Country of origin Italy
Machine LxWxH: mm
Machine weight: 3000 kg

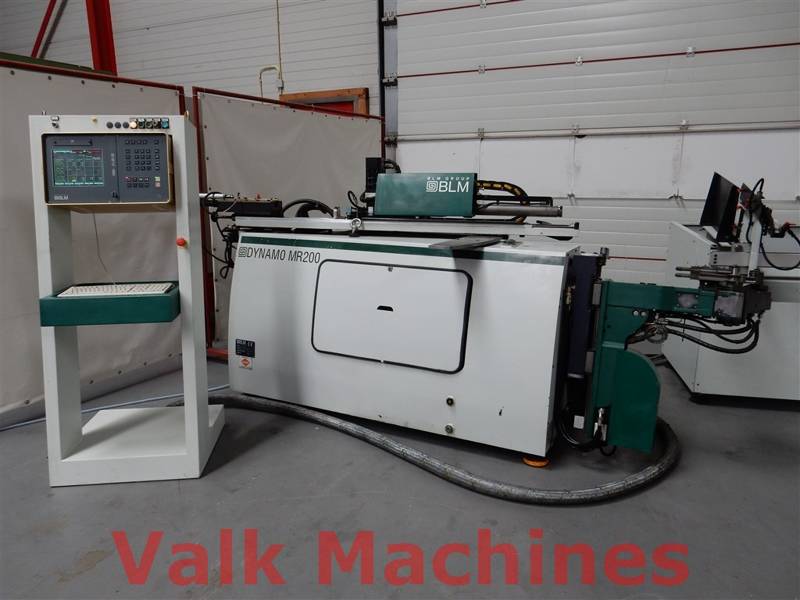

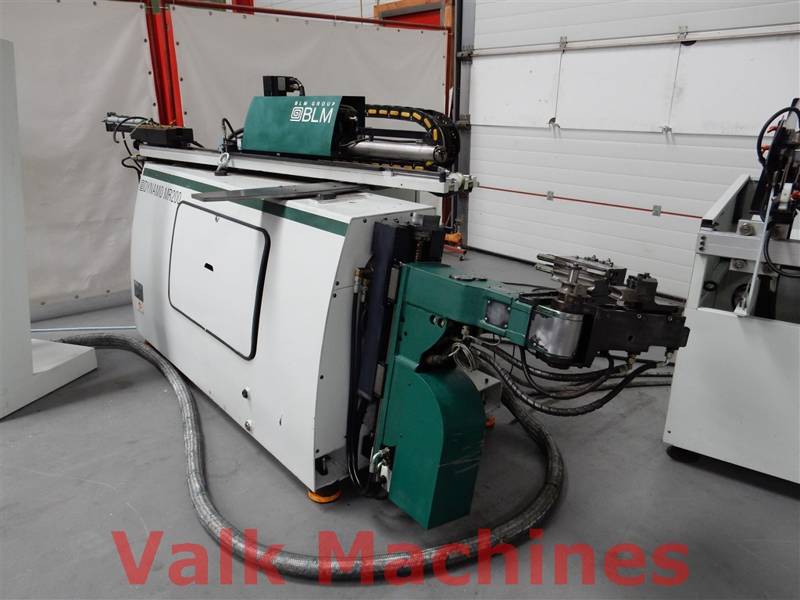

5-axis CNC pipe bendingmachine BLM

Manufacturer:BLM
Type:Dynamo MR200
Year:07/2003
PRICE REQUEST DOWNLOAD SPECIFICATIONS
