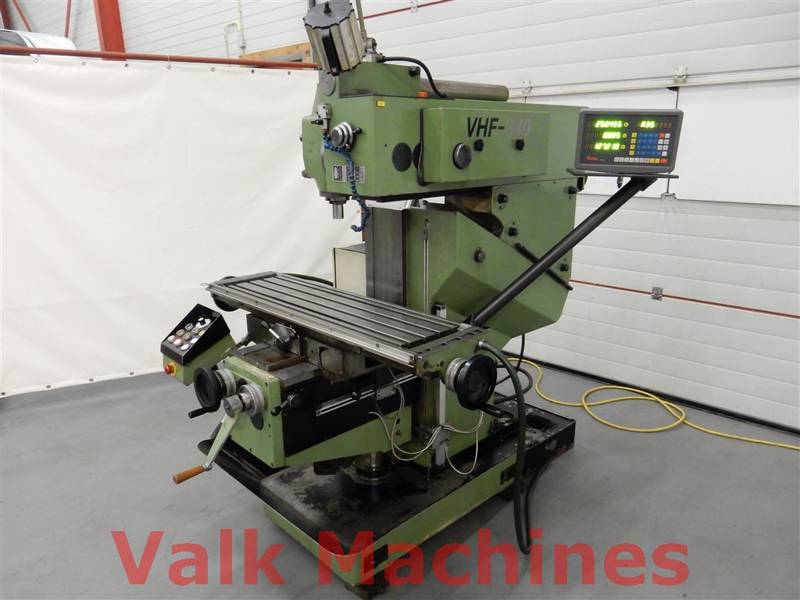

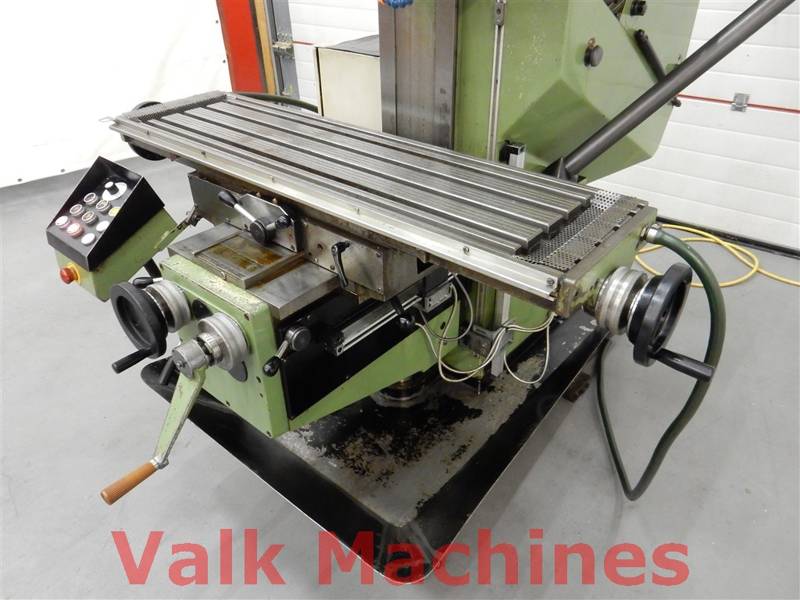

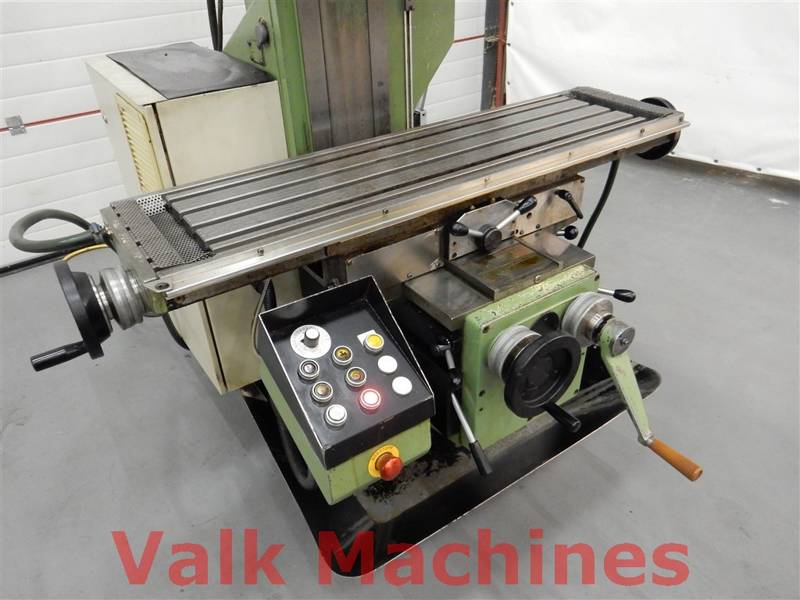

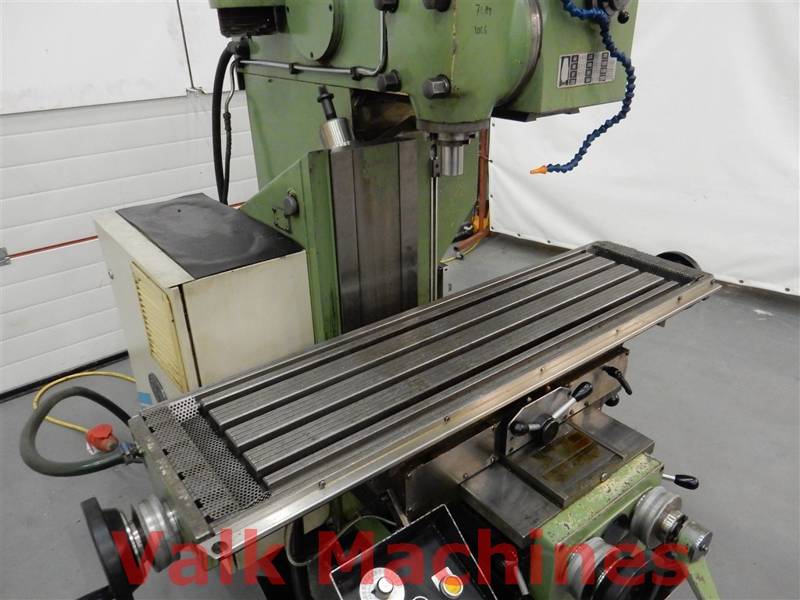

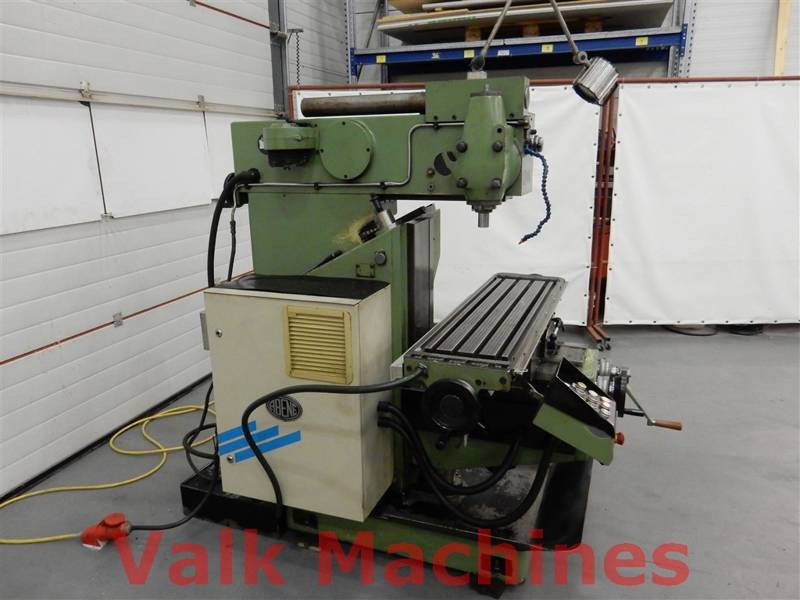

Milling machine Abene VHF 340
TECHNICAL SPECIFICATIONS
| X-axis: | 700 mm |
| Y-axis: | 200 mm |
| Z-axis: | 330 mm |
| Table size: | 320 x 1030 mm |
| Spindle nose: | ISO 40 |
| Spindle speeds: | 44 - 2000 rpm |
| Spindle stroke: | 70 mm |
| Feed on X/Y/Z-axis: | 0 - 2380 mm/min. Variomatic |

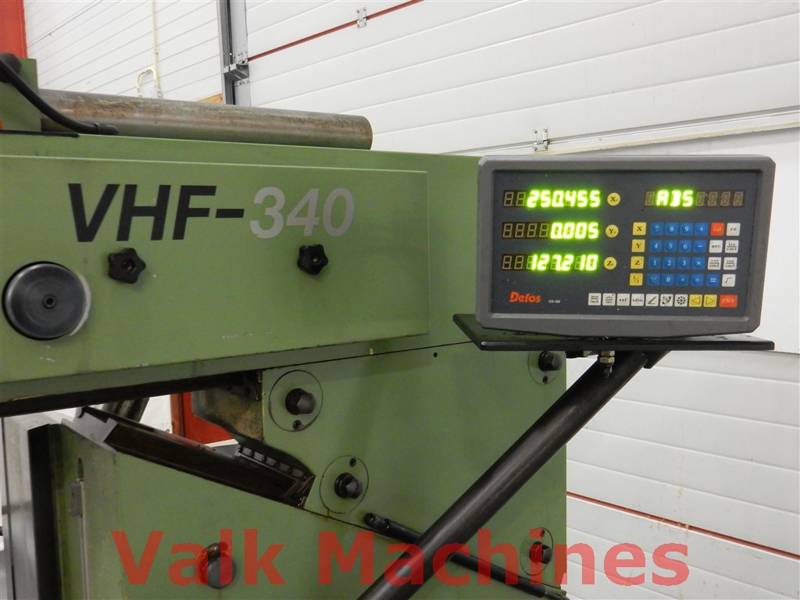

| Delos Digital readout: | On all 3-axis |

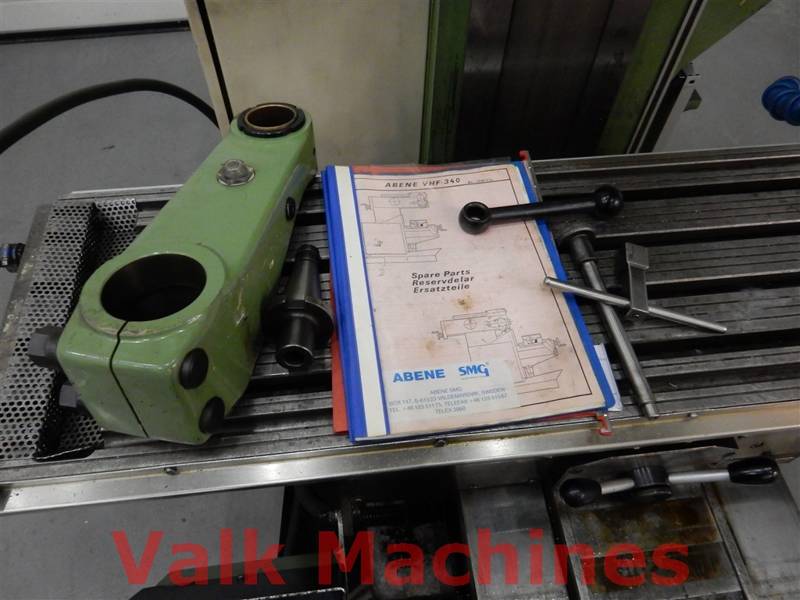

| Featured with: | - Horizontal milling toolholder - Cooling unit - 2 Pcs ISO40 holder |
| Country of origin: | Schweden |
| Main engine power: | 7,5 kW |
| Machine LxWxH: | |
| Machine weight: | 2500 kg |
