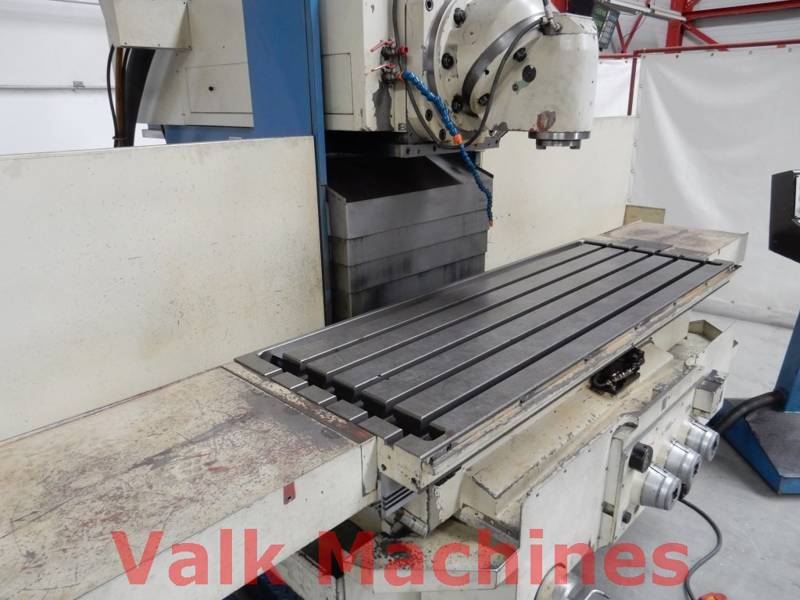

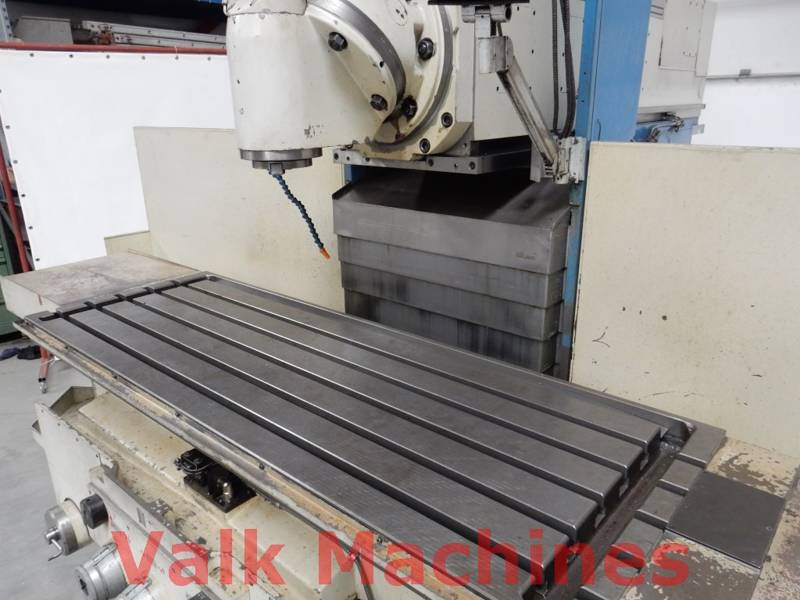

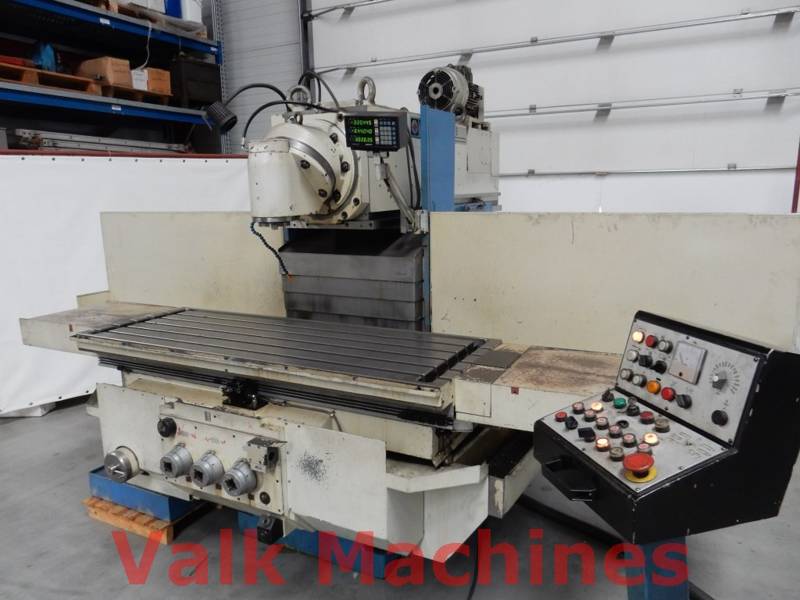

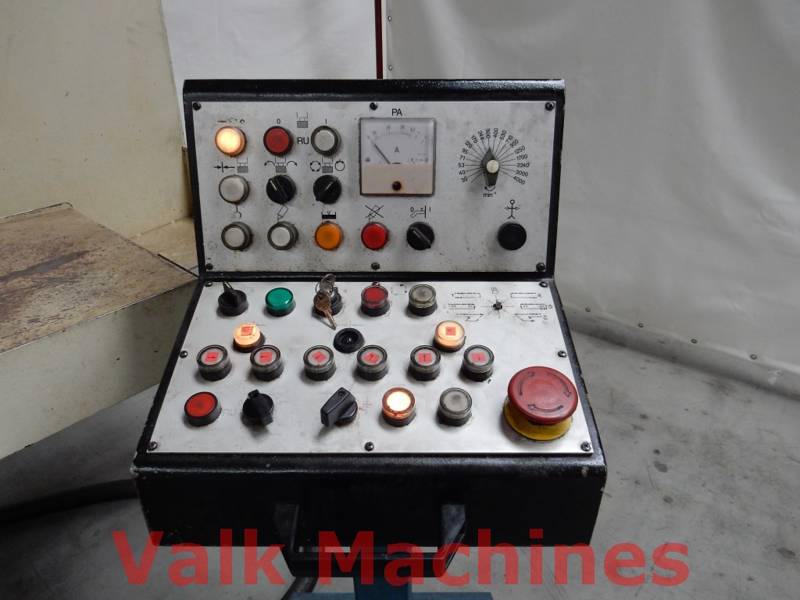

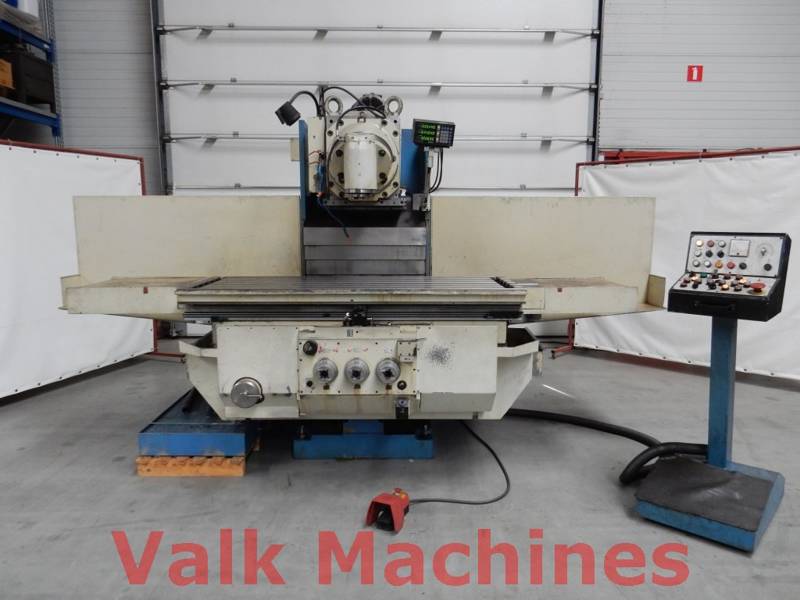

Millingmachine Tos FGS 63B
TECHNICAL SPECIFICATIONS
| X-axis: | 1.400 mm |
| Y-axis: | 700 mm |
| Z-axis: | 500 mm |
| Table size: | 1.800 x 630 mm |
| 3-axis DRO: | Sony |
| Spindle taper: | ISO 50 |
| Spindle speeds: | 30 - 4000 Rpm |
| Feed on XY: | 10 - 1.800 mm/min |
| Feed on Z: | 2,5 - 450 mm/min. |
| Rapid feed on XY: | 4.000 mm/min. |
| Rapid feed on XY: | 1.000 mm/min. |
| Featured with: | - Hydraulic clamping - User Manual |
| Country of origin: | Czech Republic |
| Machine weight: | 6.800 kg |
| Machine LxWxH: | 3700 x 4500 x 2500 mm |
