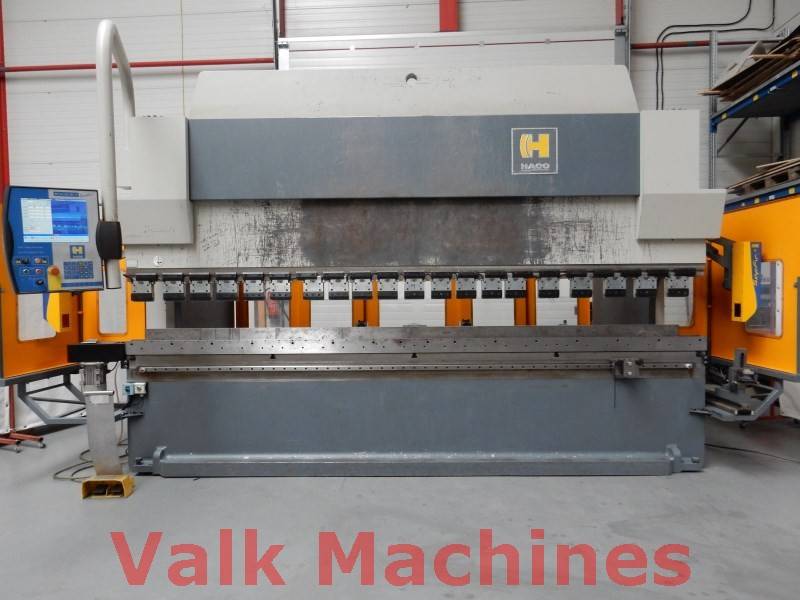

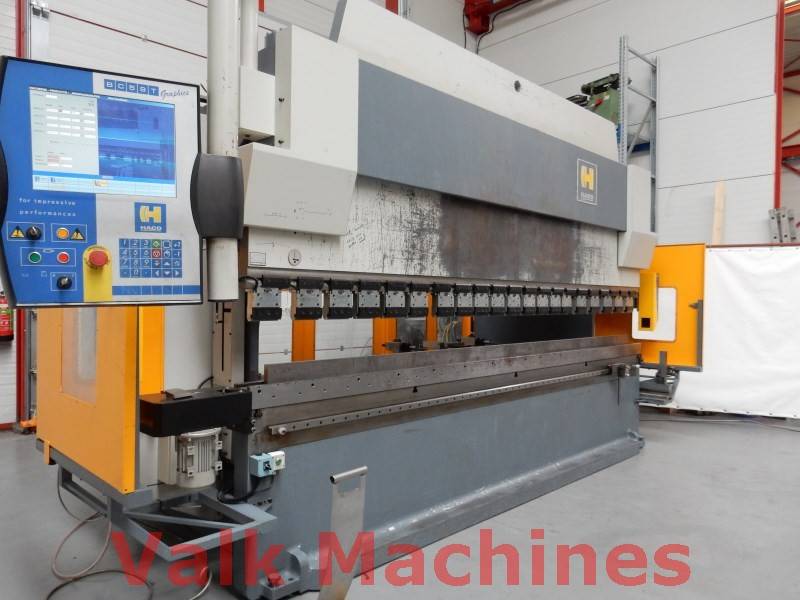

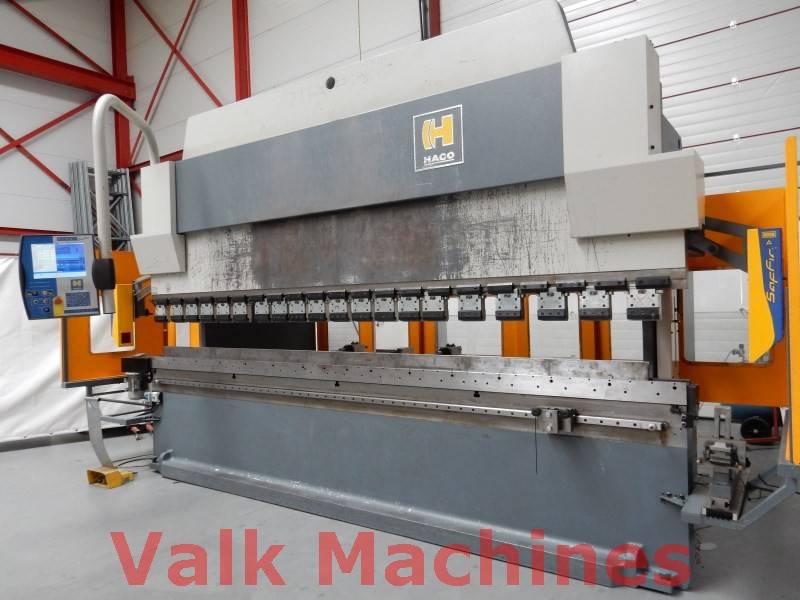

CNC Pressbrake Haco 4.300 mm x 220 Ton
CNC Pressbrake Haco
6-axis controlled
| Bending length:: | 4.300 mm |
| Capacity: | 220 Ton |

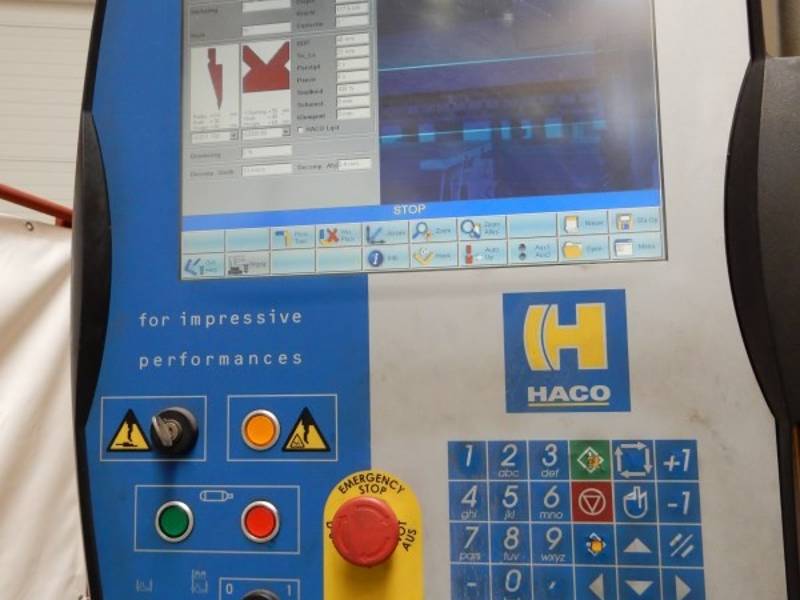

| CNC control: | BC 59T Graphics |
| CNC axis: | Y1, Y2, X, Z, R + V |
| Between housing: | 3.750 mm |
| Throat: | 330 mm |
| Stroke: | 250 mm |
| Approach speed: | 65 mm/sec. |
| Work speed: | 10 mm/sec. |
| Return speed: | 80 mm/sec. |

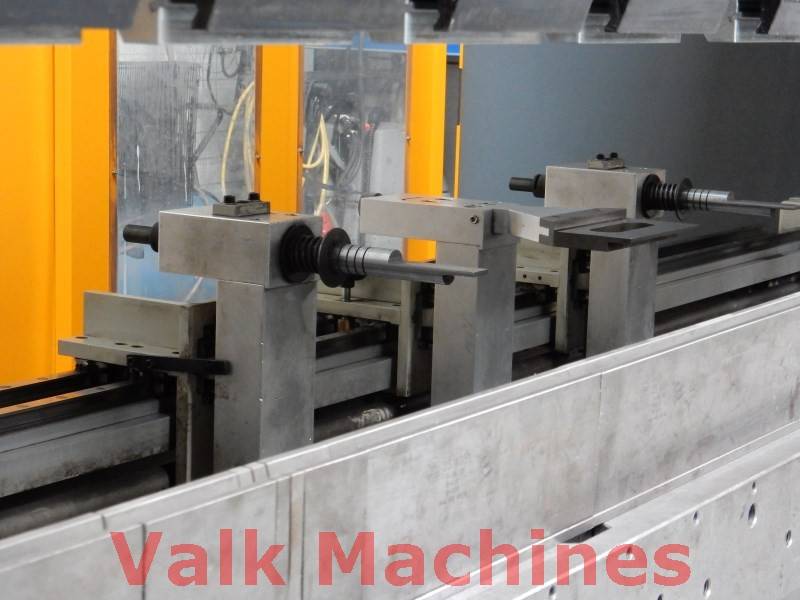

| Back gauge: | 600 mm |
| Featured with: | - Pneum. toolclamping |
| - Crowning (V-axis) | |

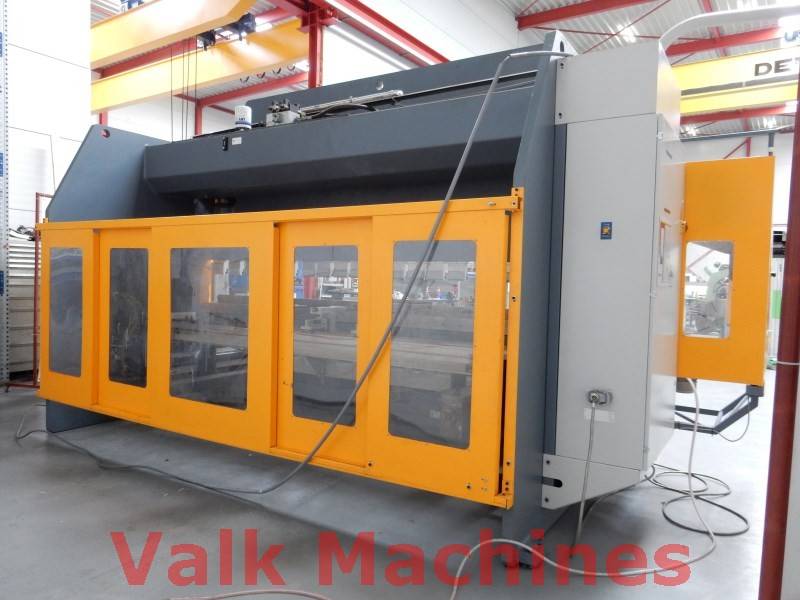

| - Backside safety | |
| - Sidepanel safety | |
| - Set upper + lower tooling | |
| - Sheetsupport frontside | |
| - Footcontrol | |
| - User Manuals | |
| Country of Manufacture: | Belgium |
| Motor power: | 18,7 kW |
| Machine weight: | 16.000 kg |
| Machine LxWxH: | mm |
CNC Pressbrake Haco 4.300 mm x 220 Ton
