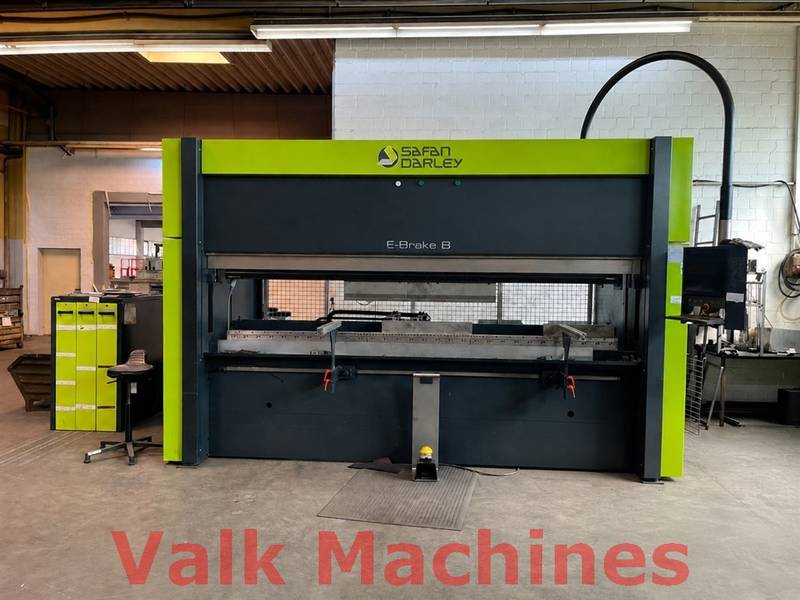

Safan Darley E-Brake 3100 mm x 100 Ton
TECHNICAL SPECIFICATIONS
| Bending capacity: | 100 Ton |
| Bending length: | 3100 mm |

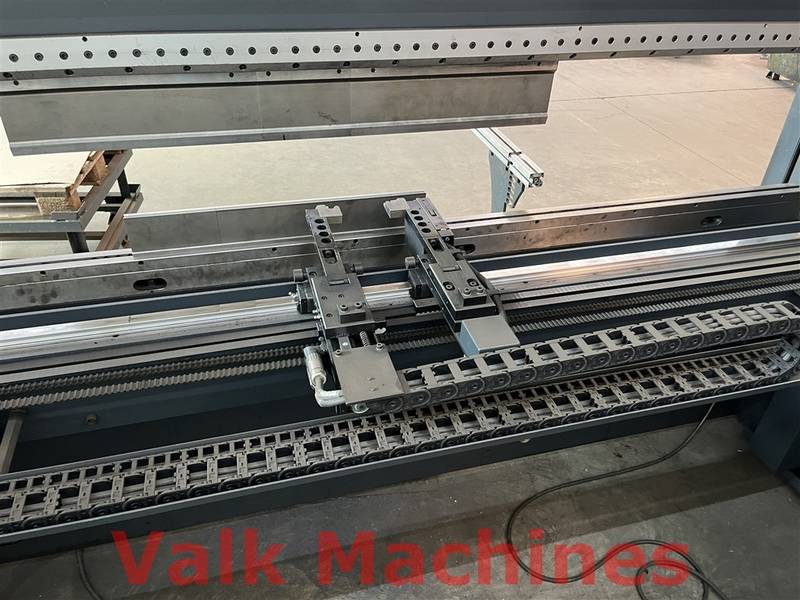

| Backgauge: | 550 mm |
| Stroke length: | 300 mm |
| Bending speed: | 10 mm/sec |

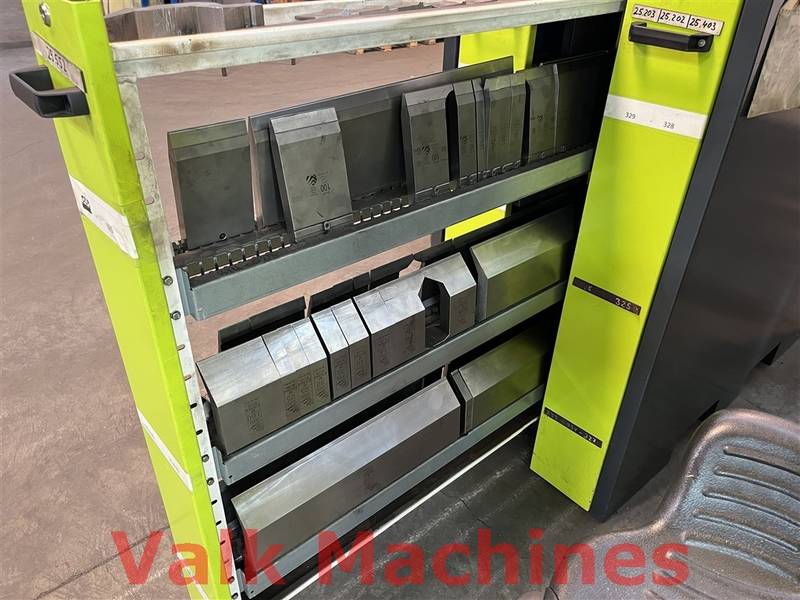

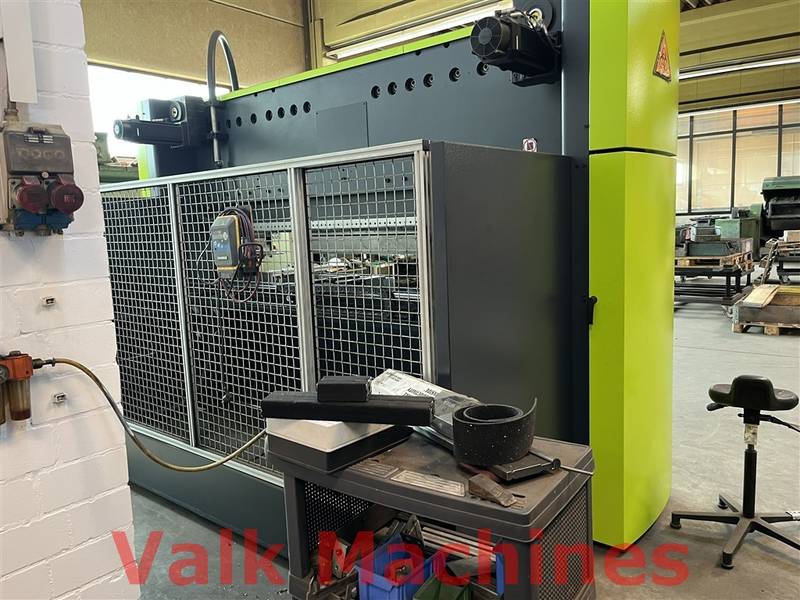

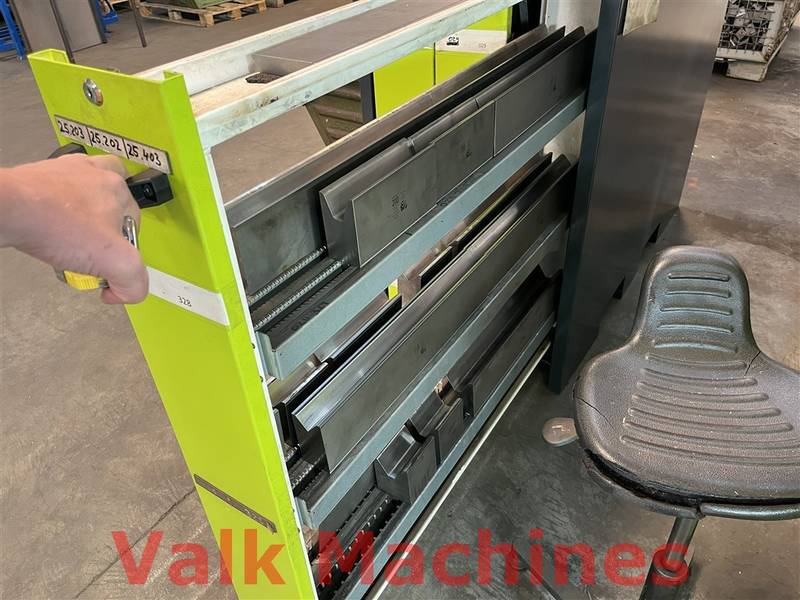

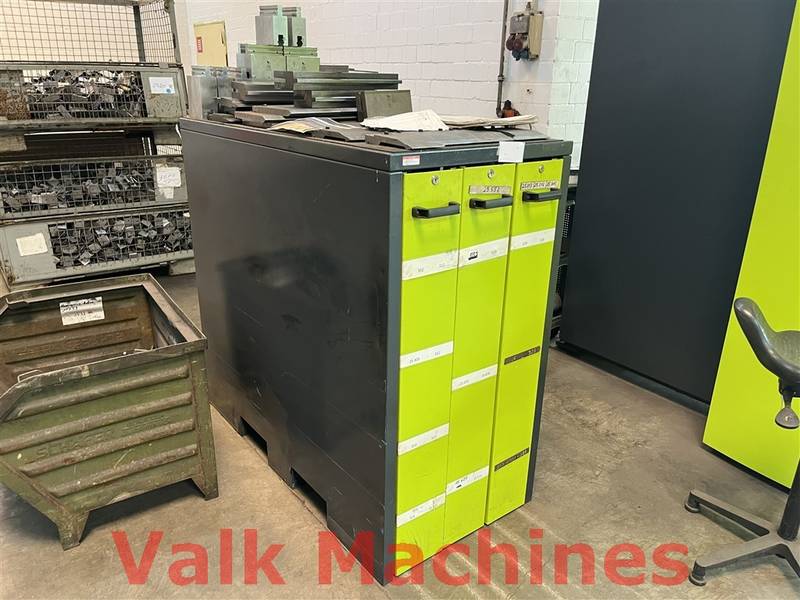

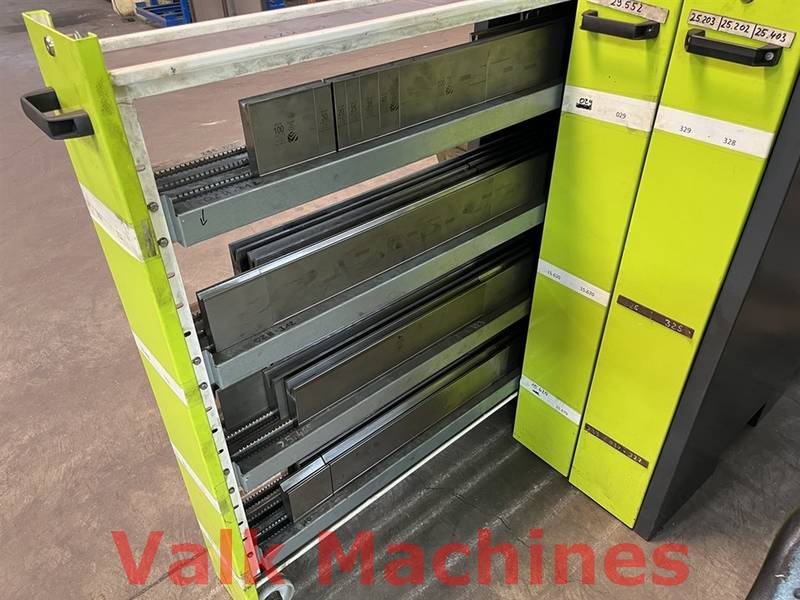

| Supplied with: | - 2 support arms - Integrated safetyscreen - 6 axis controlled Y1, Y2, X, R, Z1, Z2 - Cabinet with many tools - User manuals |
| Country of origin: | Netherlands |
| Motor power: | 11 kW |
| Machine (L×W×H): | 400 x 230 x 290 cm |
| Machine weight: | 6350 kg |
Safan Darley E-Brake 3100 mm x 100 Ton
| Manufacturer: | SafanDarley |
| Type: | E-Brake B100-3100 |
| Year: | 2017 |
PRICE REQUEST
