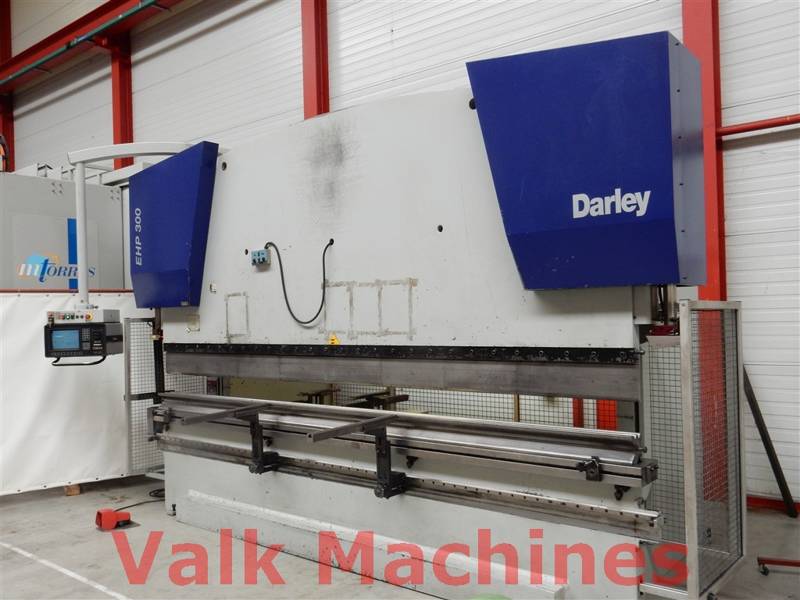

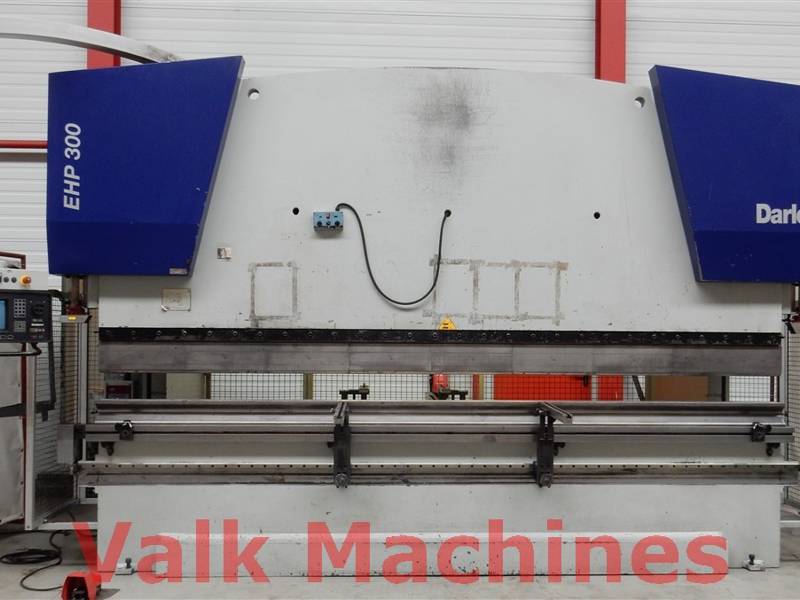

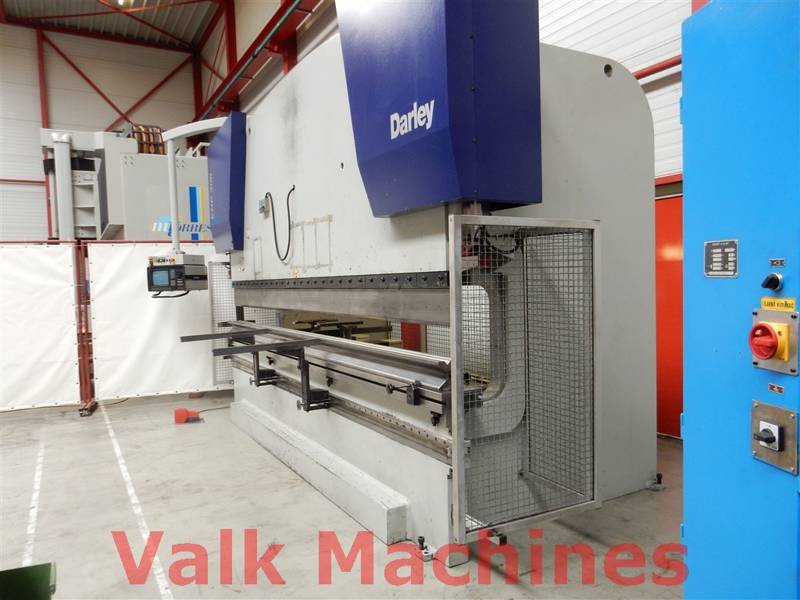

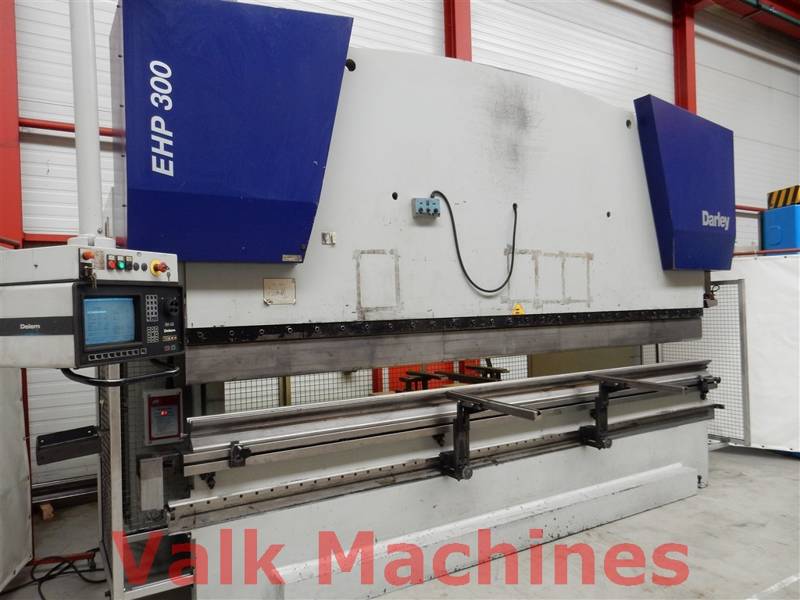

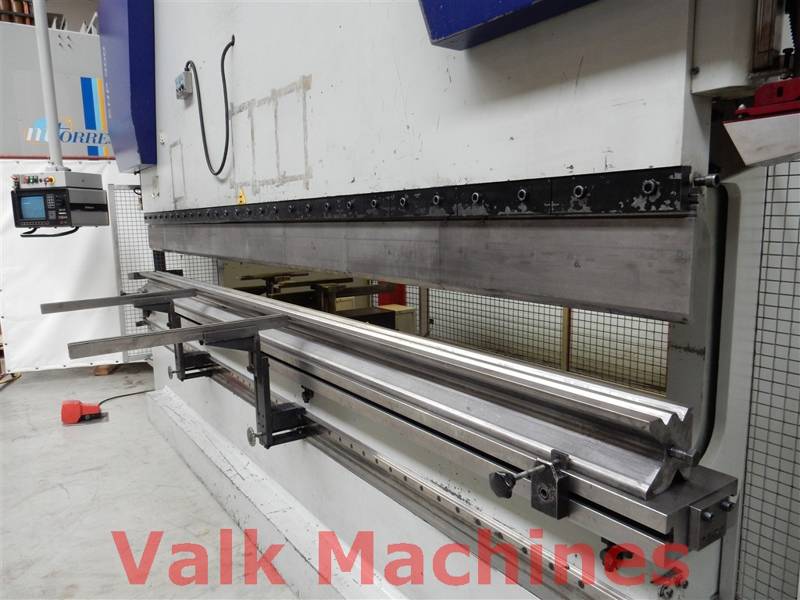

Darley 4.300 mm x 300 Ton
TECHNICAL SPECIFICATIONS
| Bending capacity: | 300 Ton |
| Bending length: | 4.300 mm |
| Distance between columns: | 3.700 mm |

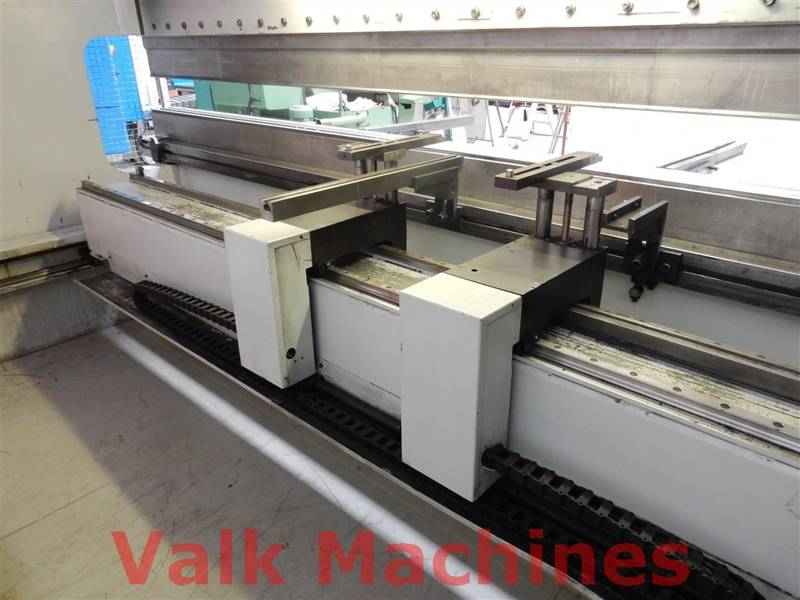

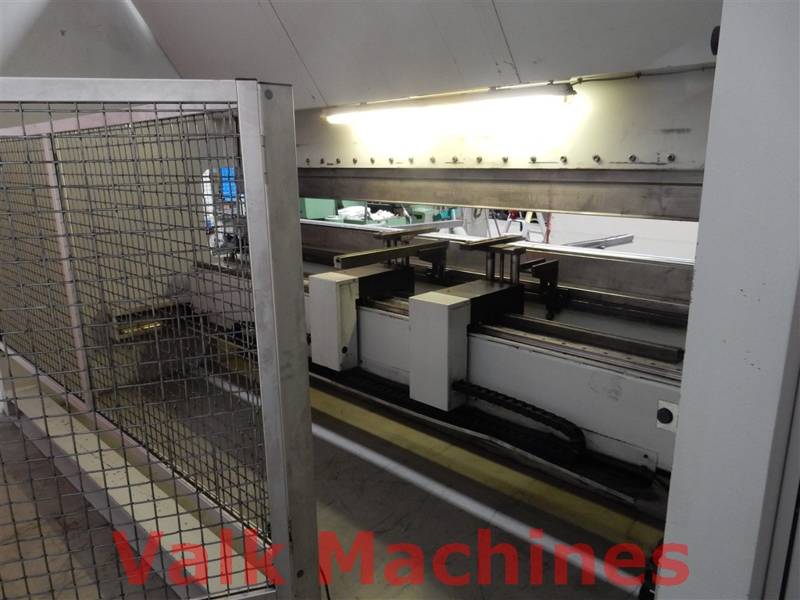

| Back gauge: | 550 mm |
| Stroke length: | 300 mm |
| Throat: | 450 mm |
| Rapid approach speed: | 120 mm/sec. |
| Bending speed: | 10 mm/sec. |
| Return speed: | 120 mm/sec. |

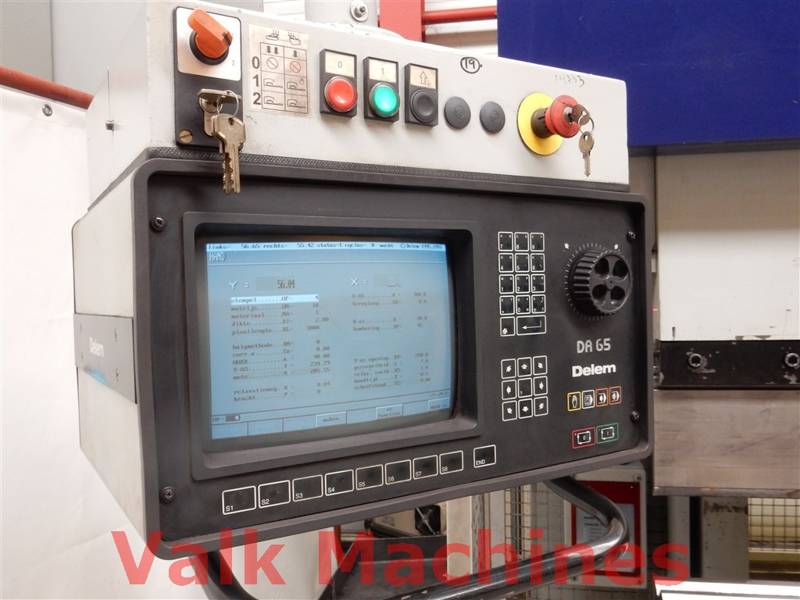

| Controller: | Delem DA65 |

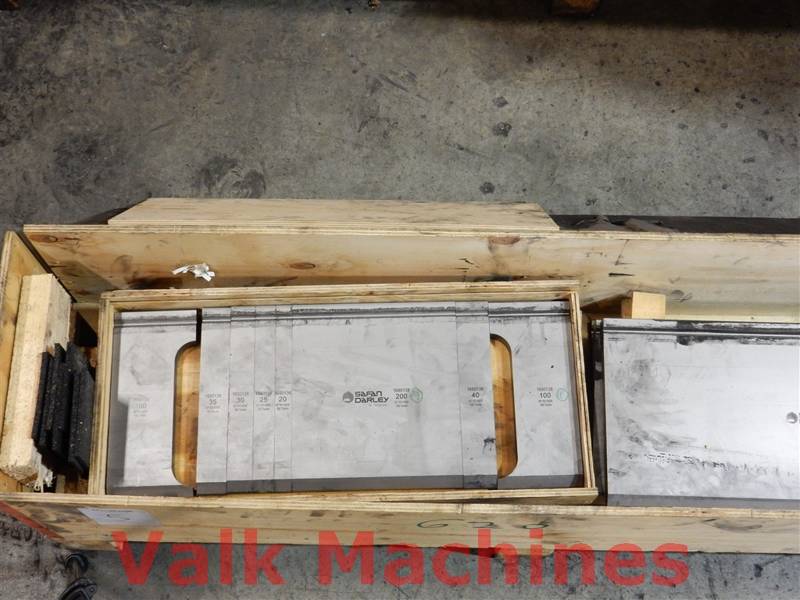

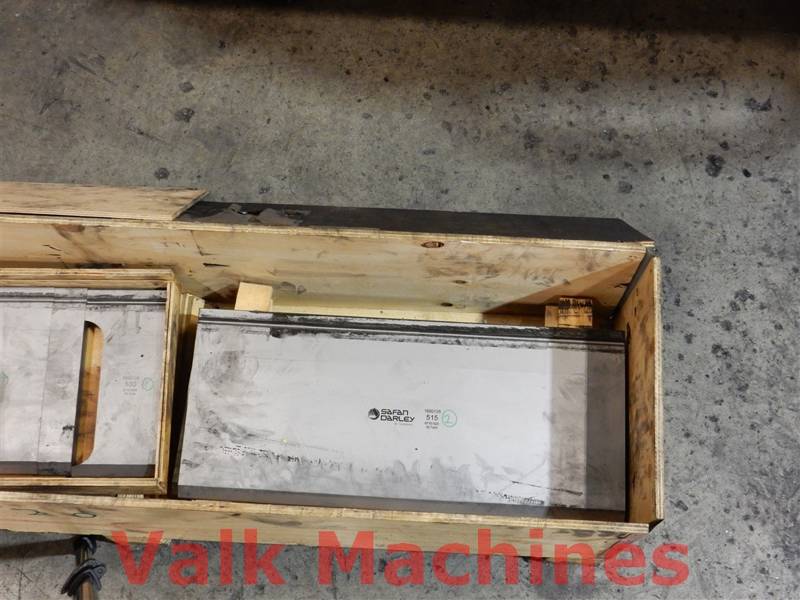

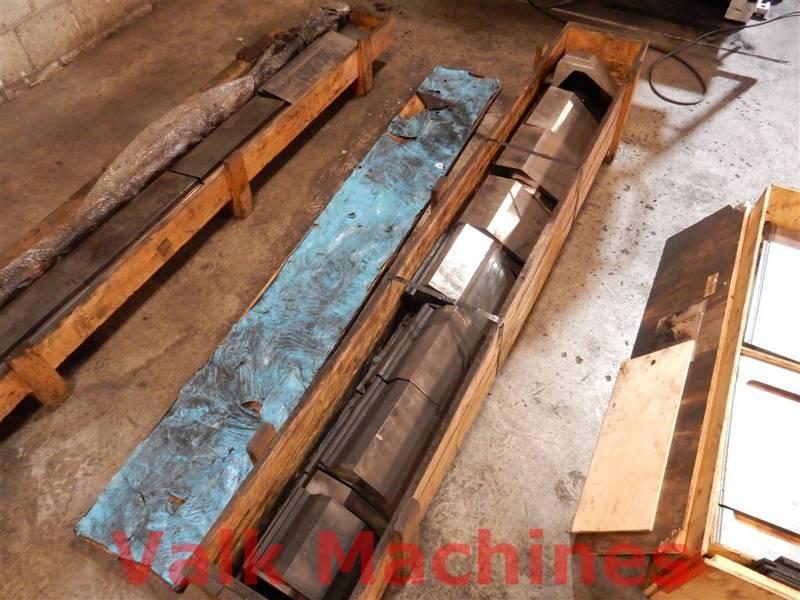

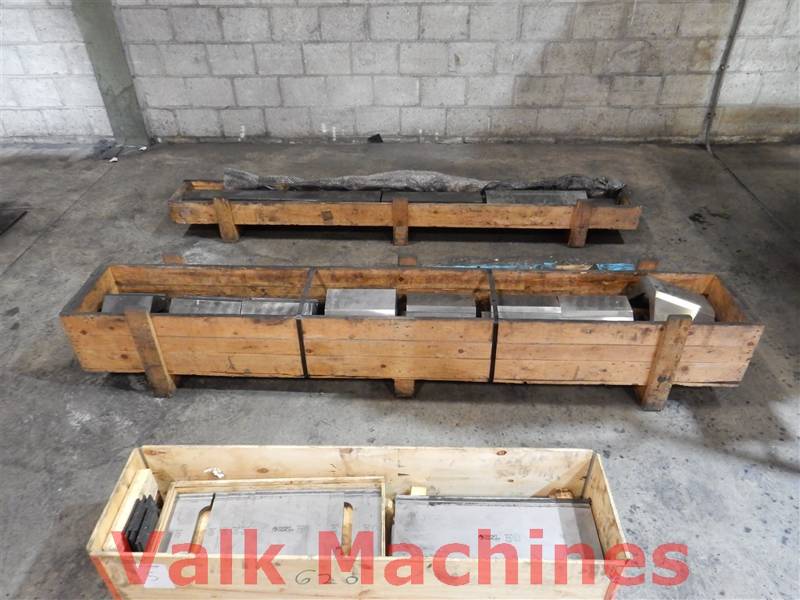

| Featured with: | - Y1, Y2, X & R-axis controlled - CNC Hydraulic crowning - Various sets of bending tools - Laser safe curtain Lazer Safe - Machine manual and documentation |
| Country of origin: | The Netherlands |
| Motor power: | 30 kW |
| Machine LxWxH: | 510 x 200 x 330 cm |
| Machine weight: | 21.500 kg |
Darley 4.300 mm x 300 Ton
| Manufacturer: | Darley |
| Type: | EHP-LS 300.43/37 |
| Year: | 2003 |
PRICE REQUEST
