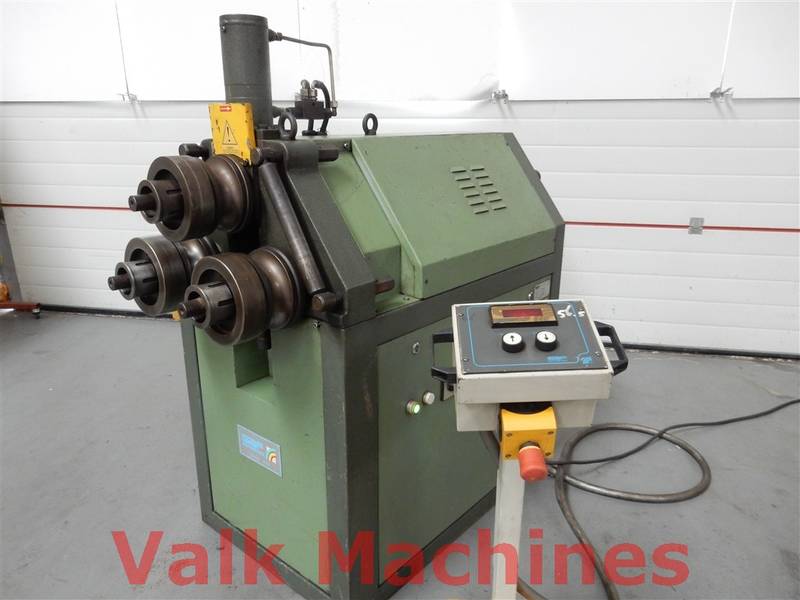

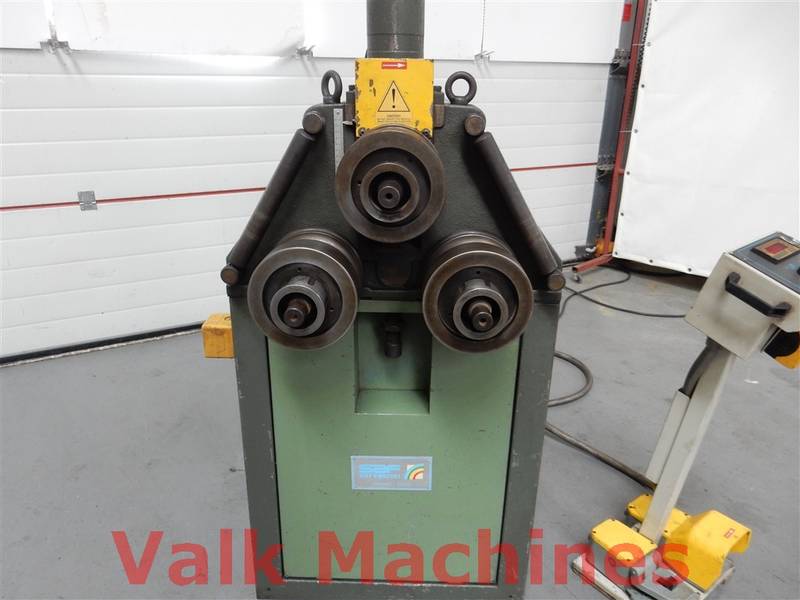

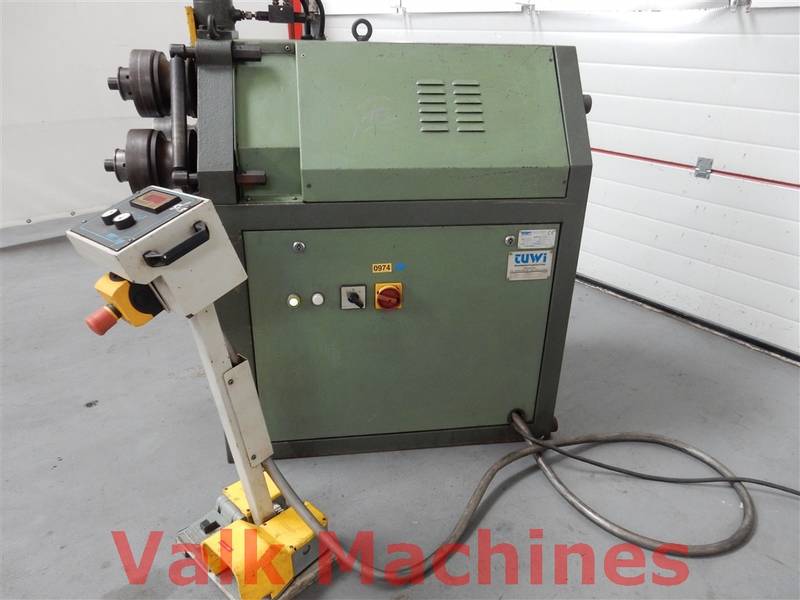

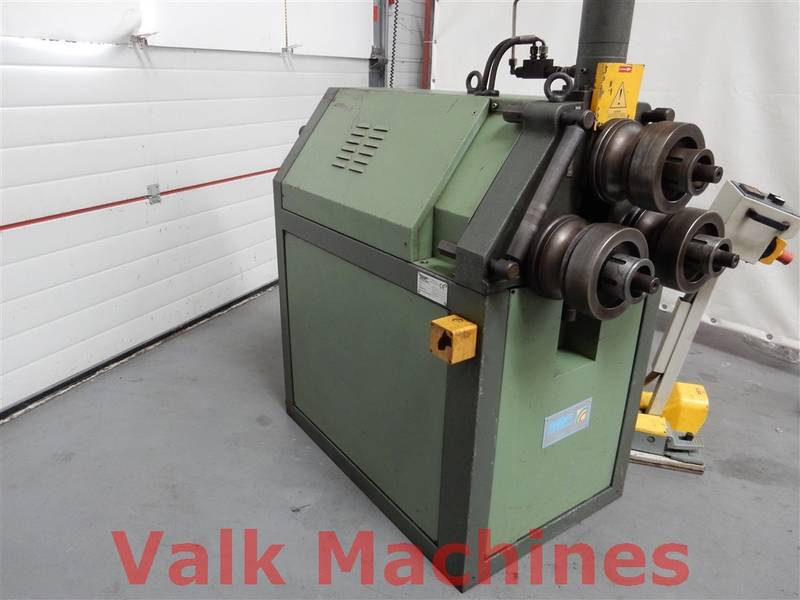

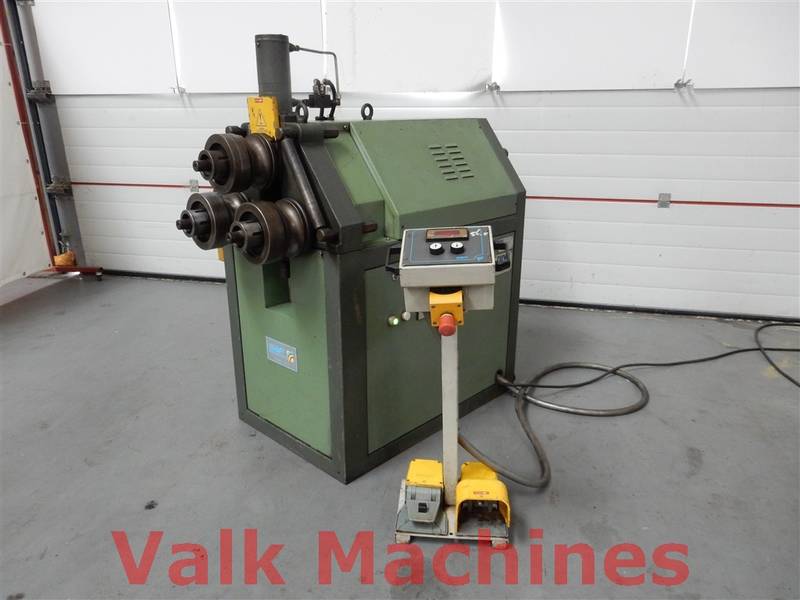

Section bendingmachine Saf Curvatrici
TECHNICAL SPECIFICATIONS
| Max capacity flat bar: | 60 × 12 mm |
| Max capacity tube: | ø 60,3 × 3,2 mm |
| Max capacity angle: | 60 × 60 × 3 mm |
| Shaft diameter: | ø 50 mm |
| Shaft length: | 115 mm |
| Driven rolls: | 3 |
| Top roll diameter: | ø 175 mm |
| Bottom rolls diameter: | ø 115 mm |
| Hoogte verstelling bovenrol: | 85 mm |
| Shaft speed: | 8–16 min-1 |

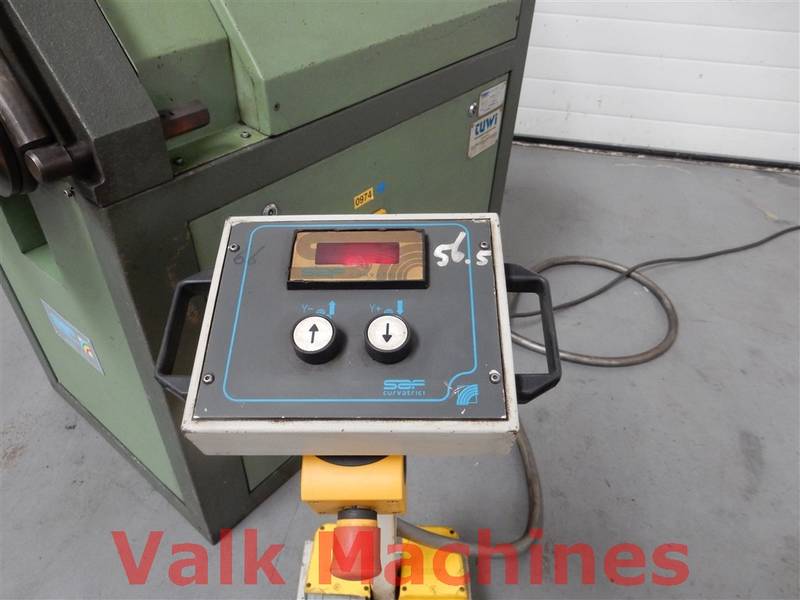

| Control: | HV control with digital readout |
| Featured with: | - Tubeset for ø50 mm - Machine user manuals |
| Country of origin: | Italy |
| Motor power: | 4 kW |
| Machine (L×W×H): | 125 × 77 × 140 cm |
| Machine weight: | 490 kg |
Section bendingmachine Saf Curvatrici
