Webster Bennett Ø2100 x 1750mm / Ø 84" x 69.½"

CNC VTL Webster Bennet

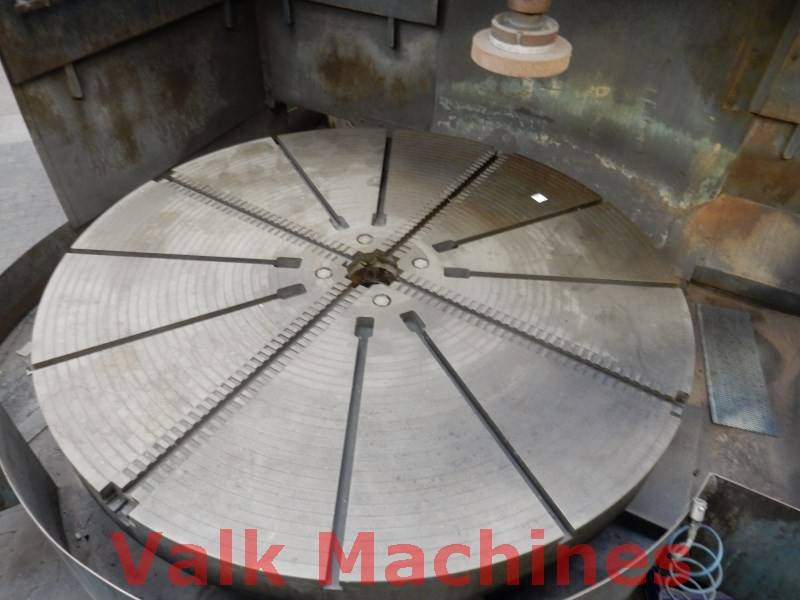

Table size: Ø 1.800 mm / 72"
Swing max: Ø 2.100 mm / 84"

Workpiece height: 1.750 mm / 69.½"
Vertical stroke turret slide: 965 mm / 38"
Vertical stroke ram: 1.220 mm / 48"

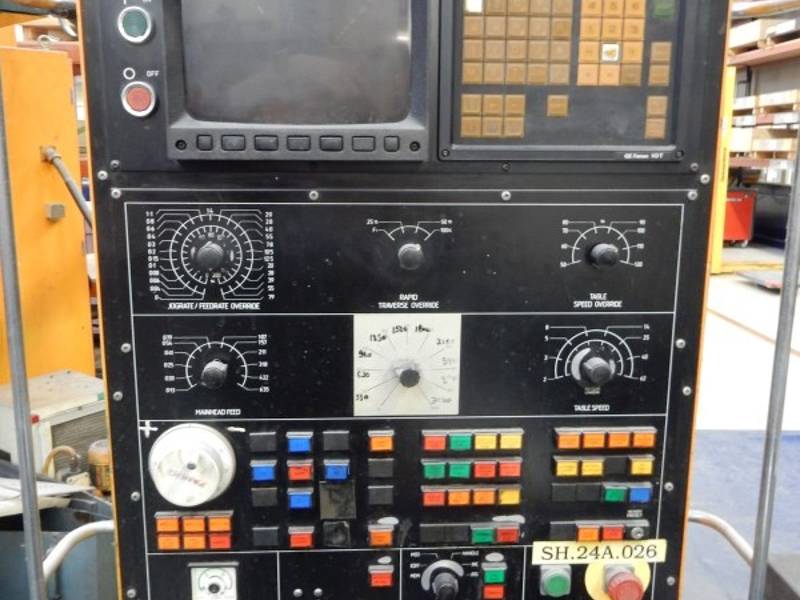

CNC control: Fanuc 10TA
Load on table max: 13.600 kg
Table speeds: 1 - 275 rpm.

Feeds: 0,1 - 5.000 mm/min.
Rapid traverses: 10.000 mm/min.

Featured with: - 2 driven grindingspindles
  - Documentation
  - Filter unit

Motor power: 30 kW
Machine LxWxH: 440 x 440 x 520 cm
Machine weight: 16,5 Ton

Webster Bennett Ø2100 x 1750mm / Ø 84" x 69.½"

Manufacturer:Webster & Bennett
Type:T-series 72"TE
Year:
