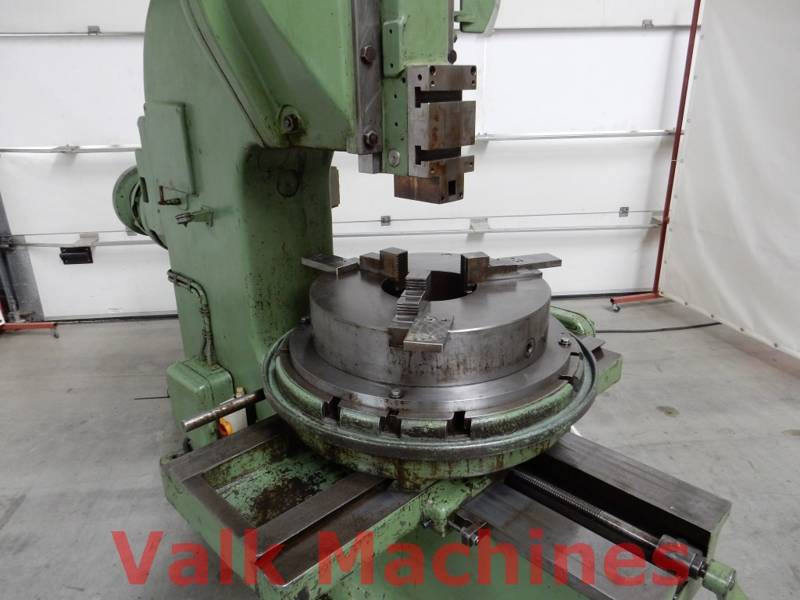

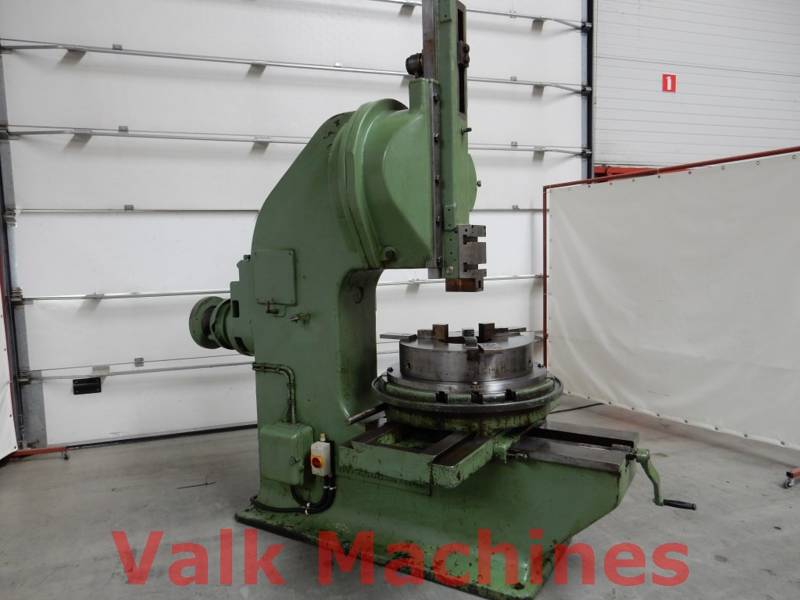

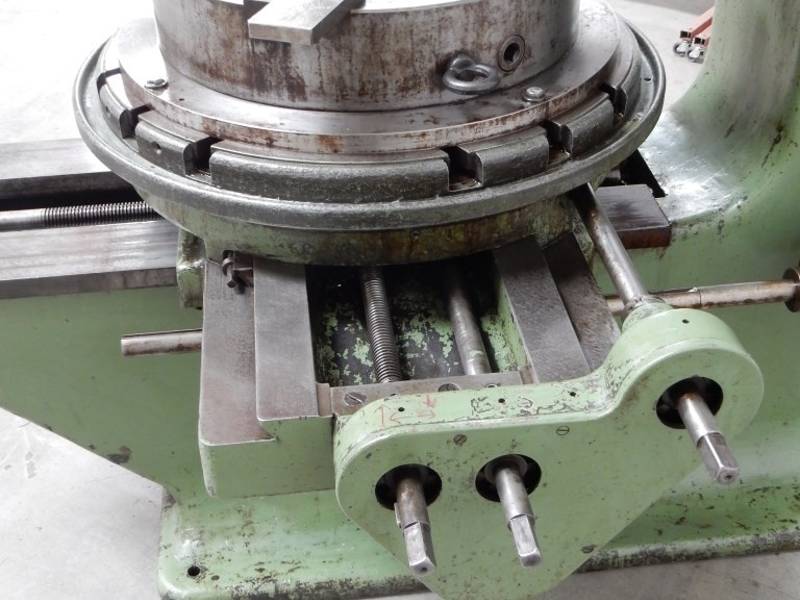

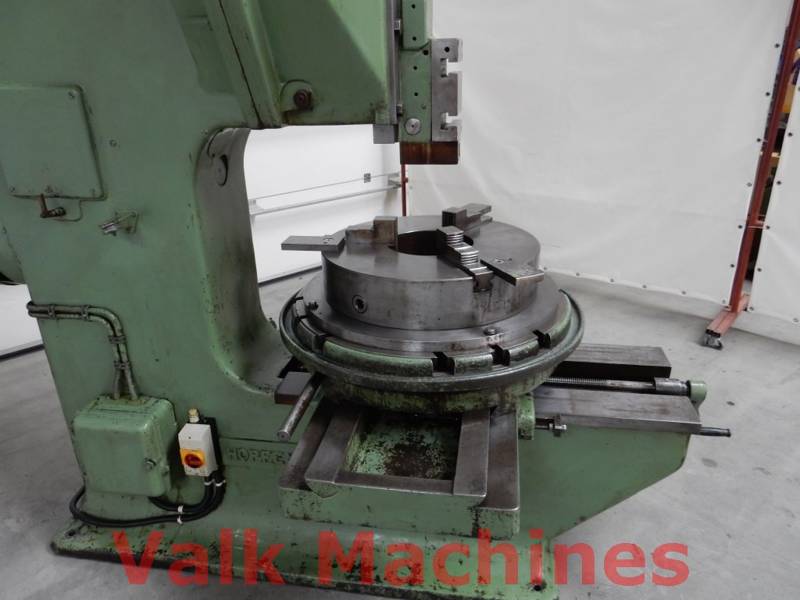

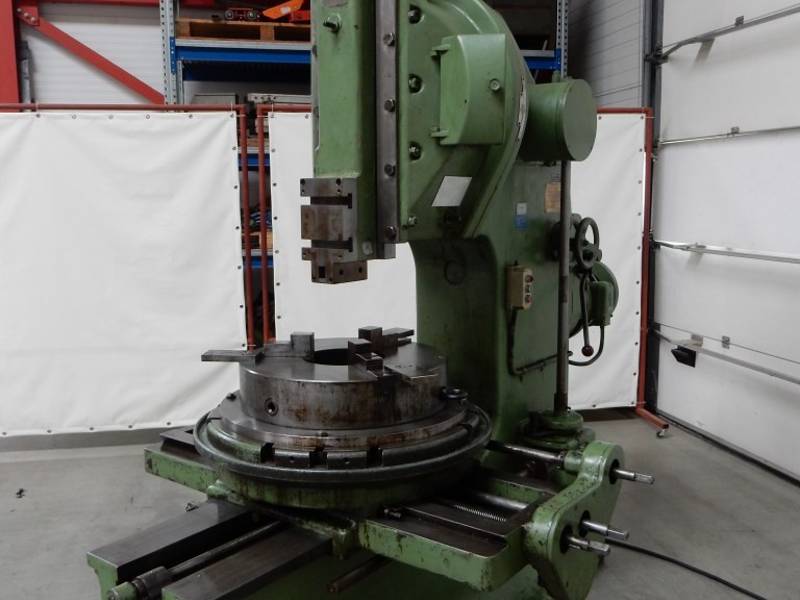

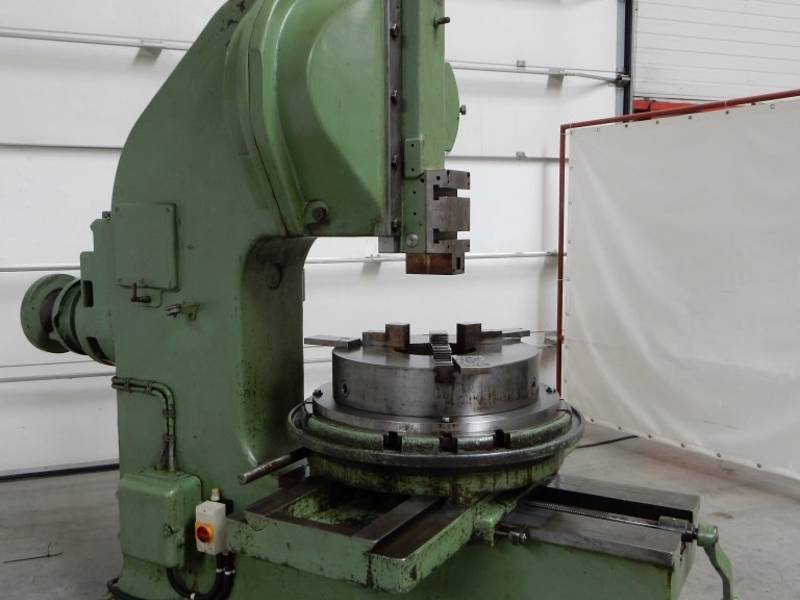

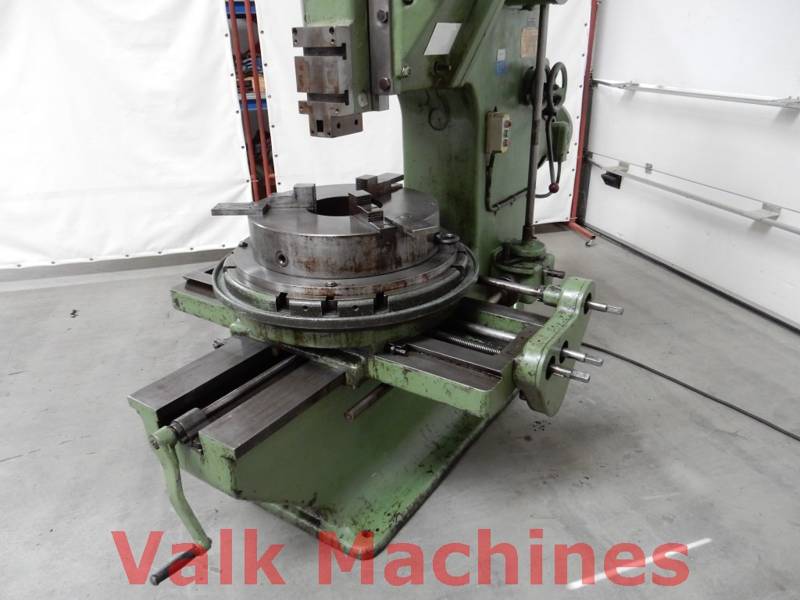

Slottingmachine Hopfengärtner STE80
TECHNICAL SPECIFICATIONS
| Tablediameter: | 800 mm |
| Y-axis movement: | 800 mm |
| X-axis movement: | 800 mm |
| Throat: | 700 mm |
| Stroke length: | 40 - 210 mm |
| Ram adjustment: | 350 mm |
| Stroke speed: | 10 - 56 p/min. |
| Tilting head: | 10˚ left/right |
| Daylight: | 500 mm (from tablel) |
| 3-jaw chuck diameter: | 700 mm |
| Motor power: | 4,4 kW |
| Country of origin: | Germany |
| Transportsize LxWxH: | 2700 x 1700 x 2450 mm |
| Machine Gewicht: | 4500 kg |
