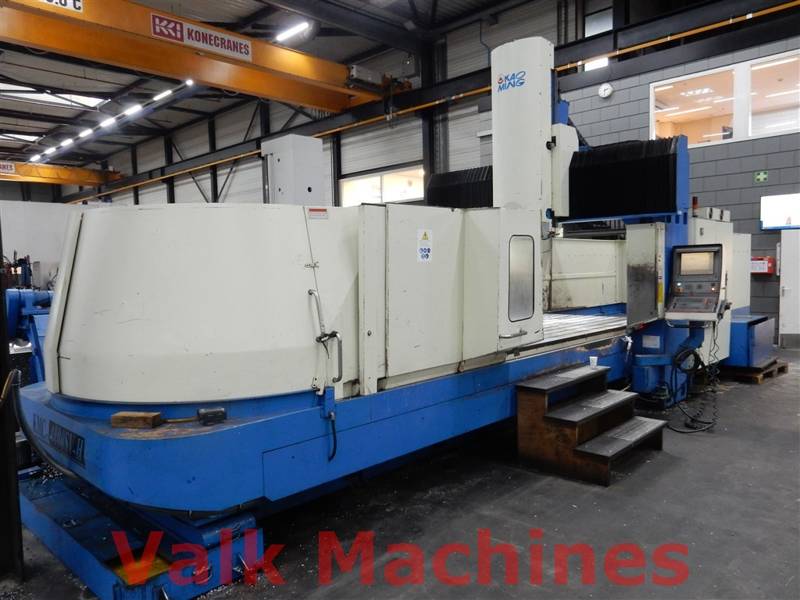

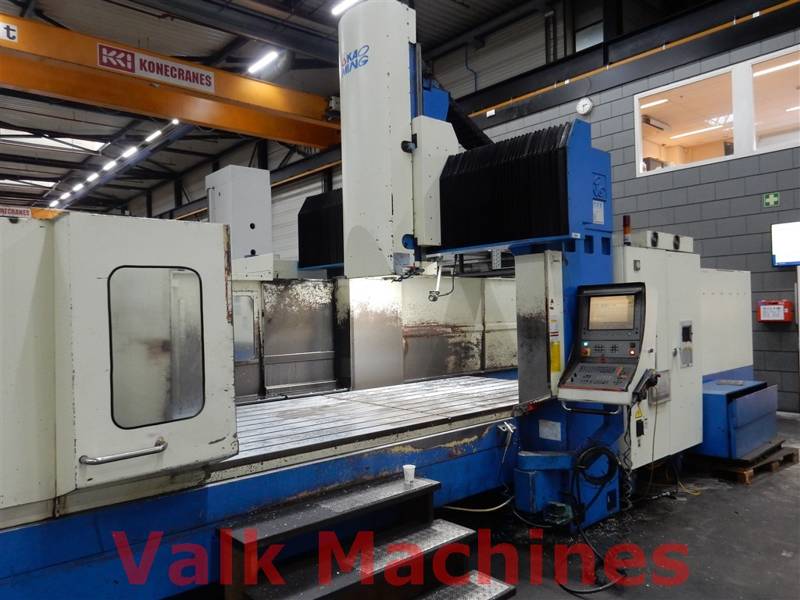

Portalmillingmachine Kao Ming X: 4000mm
TECHNICAL SPECIFICATIONS
| X-axis: | 4.230 mm |
| Y-axis: | 2.100 mm |
| Z-axis: | 850 mm |

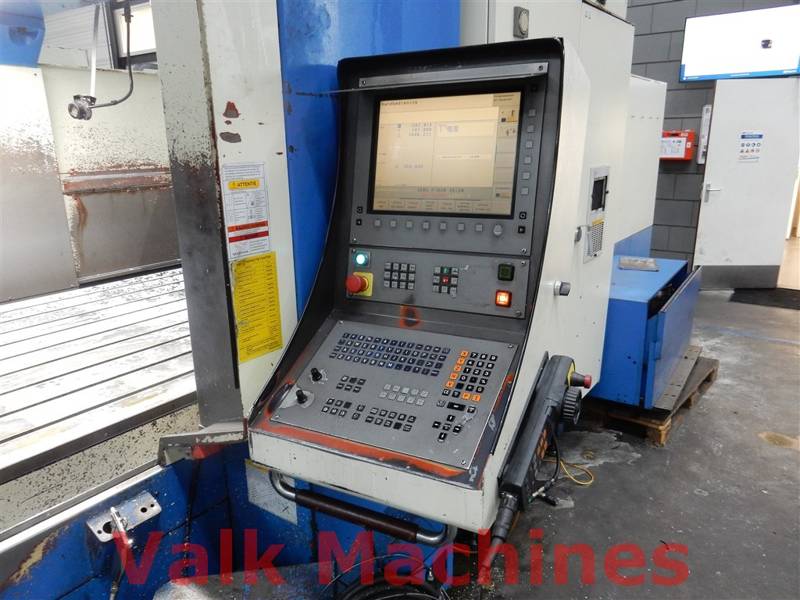

| CNC Controller: | Heidenhain iTNC 530 |
| Spindle nose: | ISO 50 |
| Spindle speed: | 6.000 Rpm |
| Toolchanger: | 30 pockets |

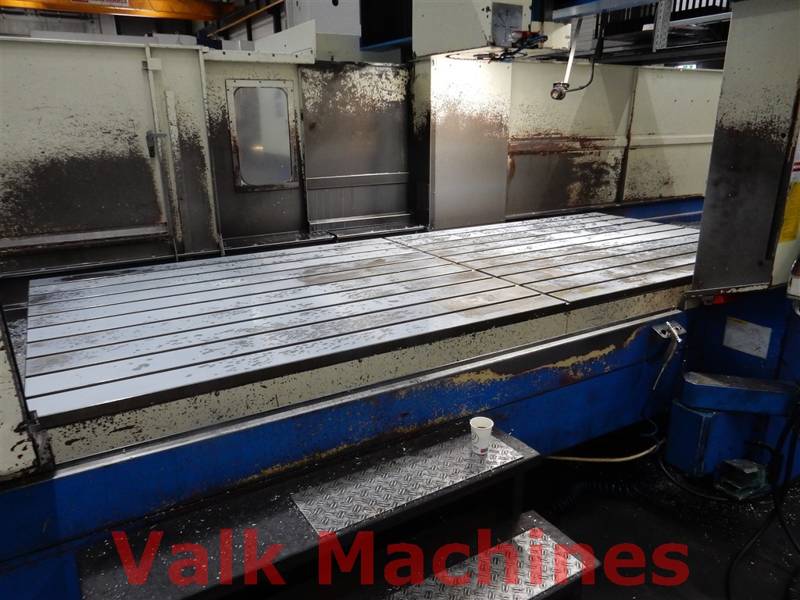

| Table size: | 4.000 x 1.650 mm |
| Distance between columns: | 2.300 mm |

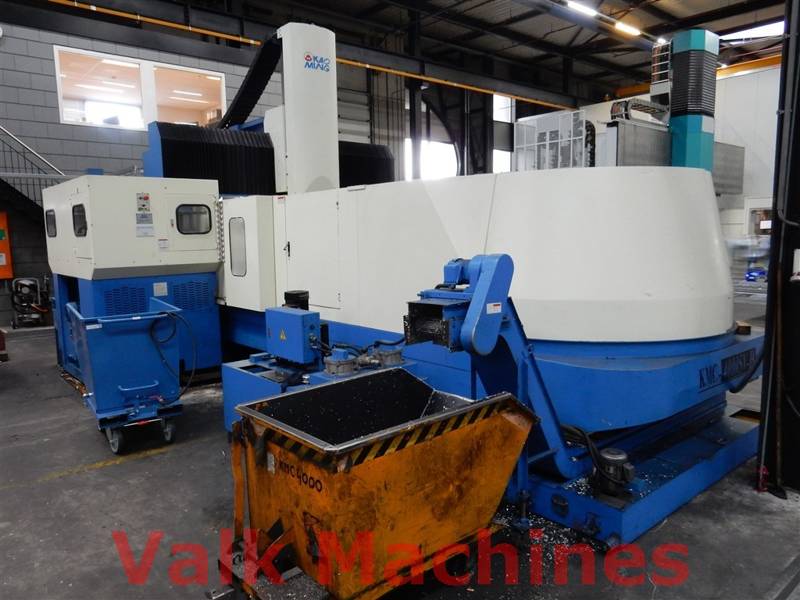

| Featured with: | - Vertical milling head attachement - Touch probe - Cooling throught spindle - Double chip conveyor - Cooling unit - Machine manuals |
| Country of origin: | Taiwan |
| Machine LxWxH: | 9000 x 3500 x 4000 mm +/- |
| Machine weight: | 30.000 kg |
Portalmillingmachine Kao Ming X: 4000mm
| Manufacturer: | Kao Ming |
| Type: | KMC-4000SVH |
| Year: | 2004 |
