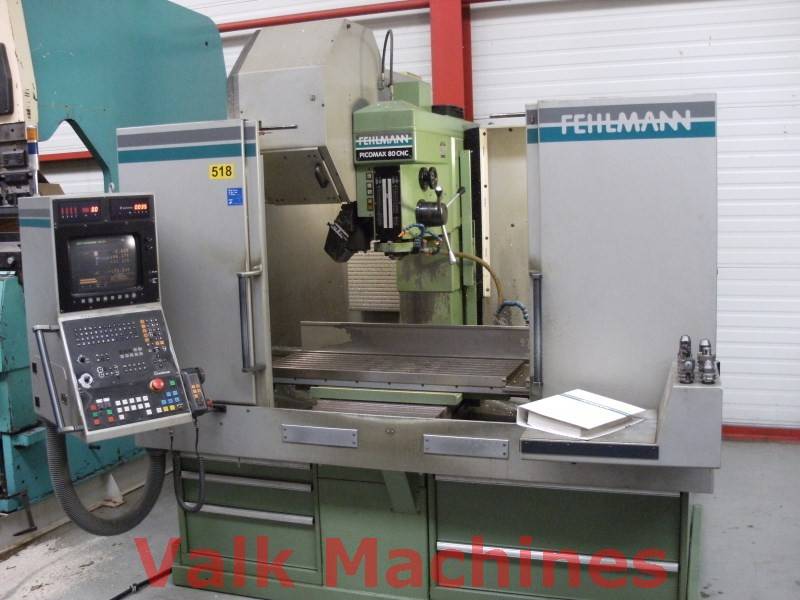

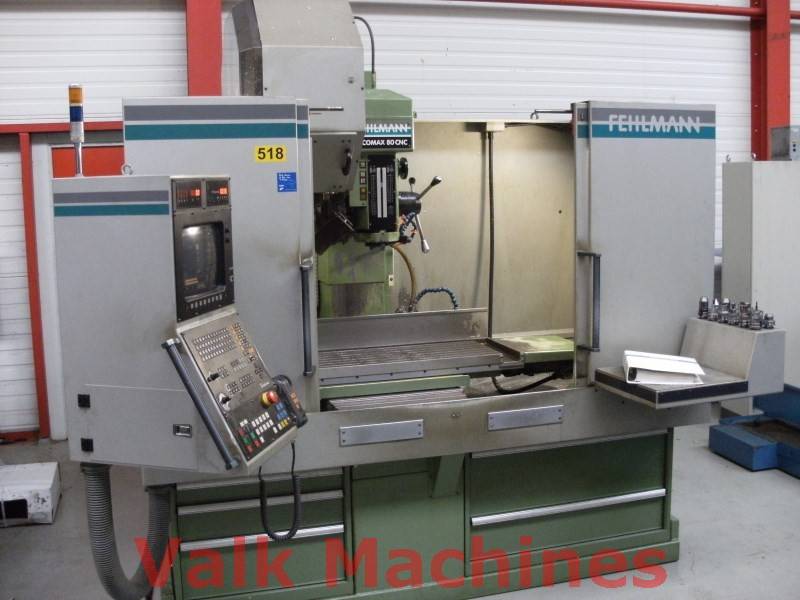

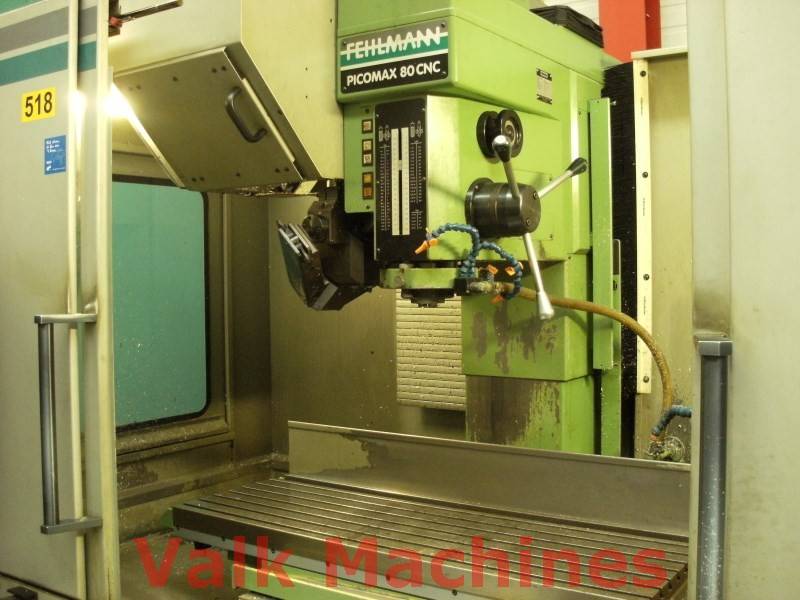

CNC VMC Fehlmann Picomax 80

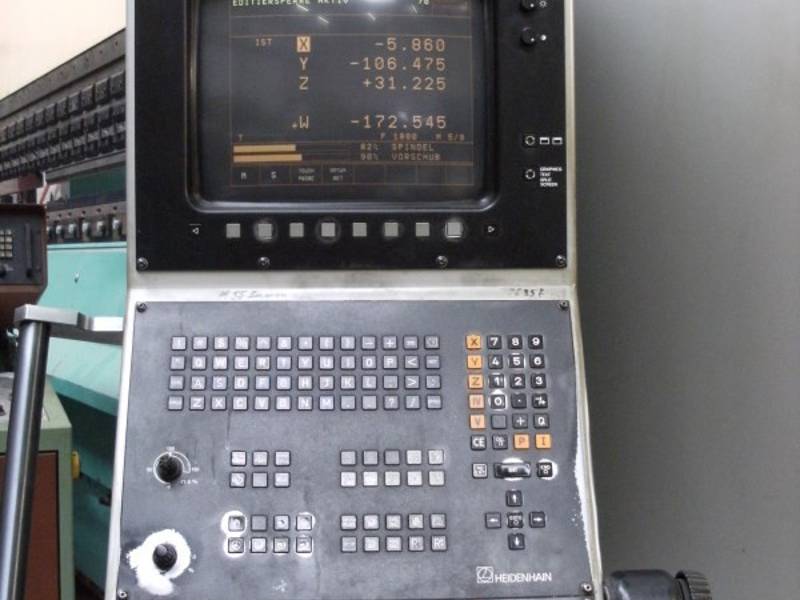

Control: Heidenhain TNC 415

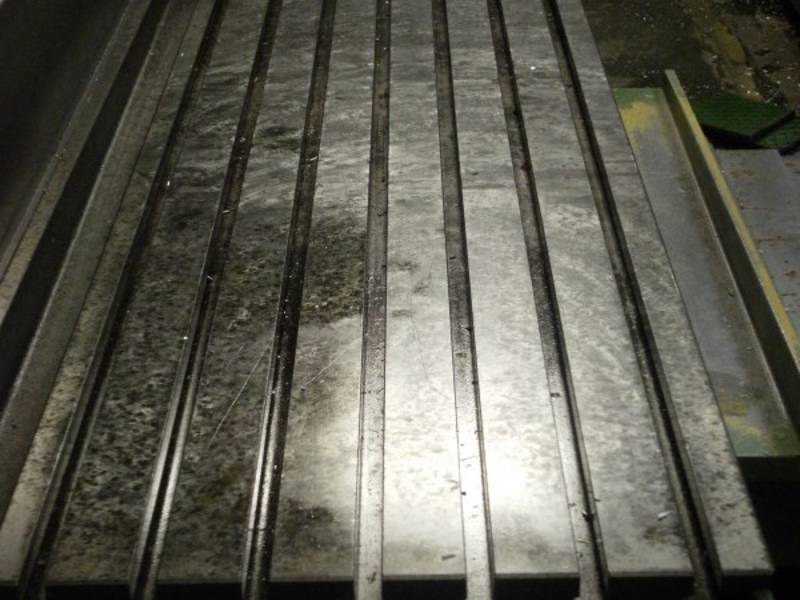

Tablesize: 1.230 x 410 mm
X-travel: 700 mm
Y-travel: 315 mm
Z-travel: 180 mm
W-travel: 495 mm
Speeds variomatic: 50 - 9.200 Rpm
Spindle taper: SK 30

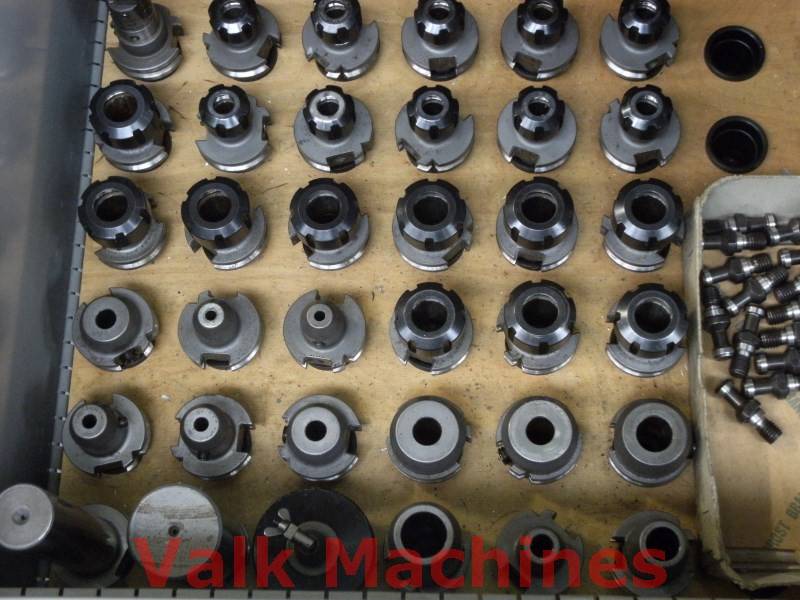

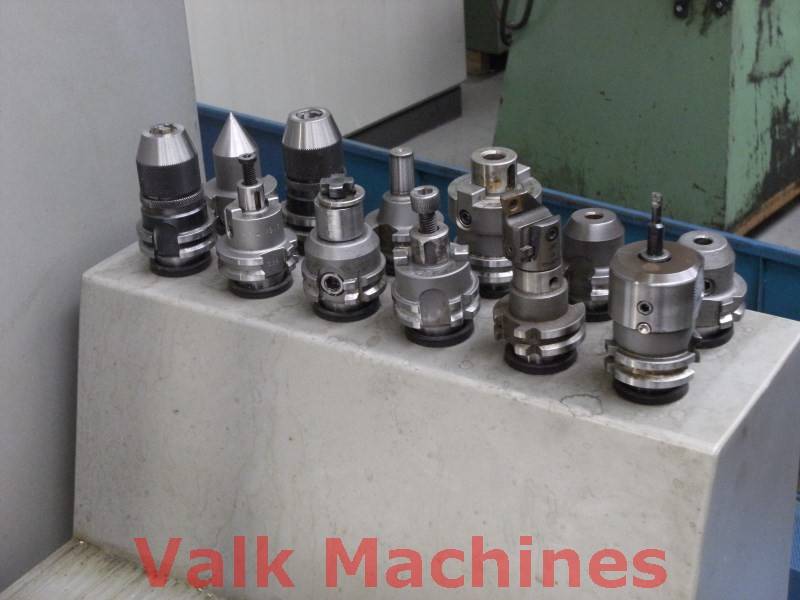

Toolchanger: 32 places
Drilling capacity: Ø 30 mm
Milling capacity: 100 cm?/min.
Thread to: M24
Power: 16 kW
TECHNICAL SPECIFICATIONS
| Control: | Heidenhain TNC 415 |
| Tablesize: | 1.230 x 410 mm |
| X-travel: | 700 mm |
| Y-travel: | 315 mm |
| Z-travel: | 180 mm |
| W-travel: | 495 mm |
| Speeds variomatic: | 50 - 9.200 Rpm |
| Spindle taper: | SK 30 |
| Toolchanger: | 32 places |
| Drilling capacity: | Ø 30 mm |
| Milling capacity: | 100 cm?/min. |
| Thread to: | M24 |
| Power: | 16 kW |
CNC VMC Fehlmann Picomax 80
| Manufacturer: | Fehlmann |
| Type: | Picomax 80 W 2/3 |
| Year: | 1993 |
PRICE REQUEST
