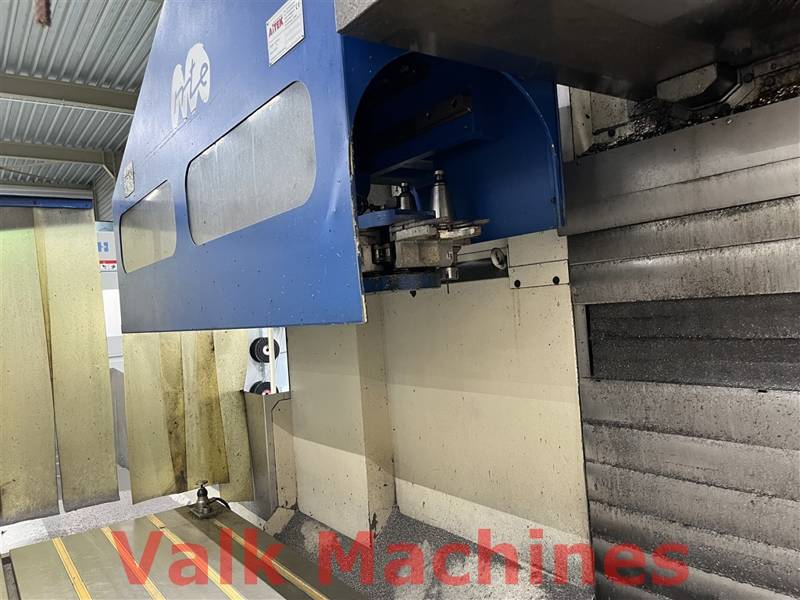

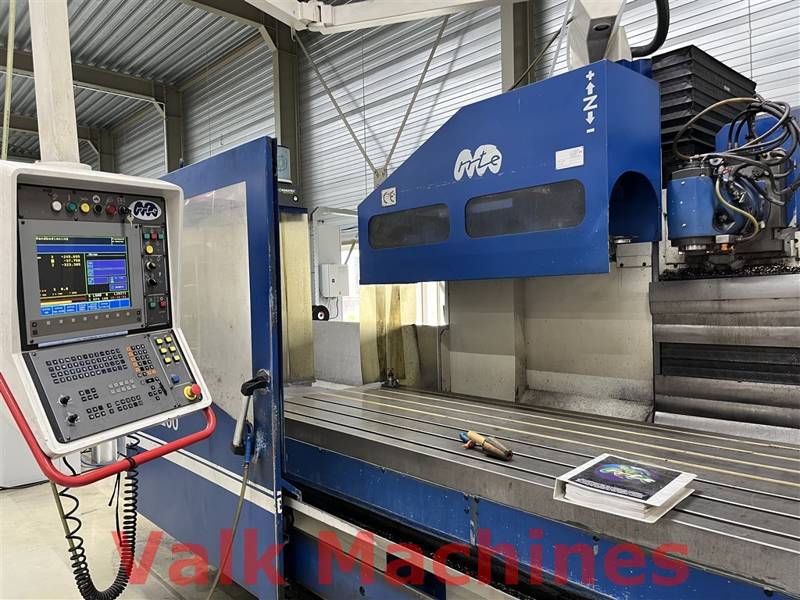

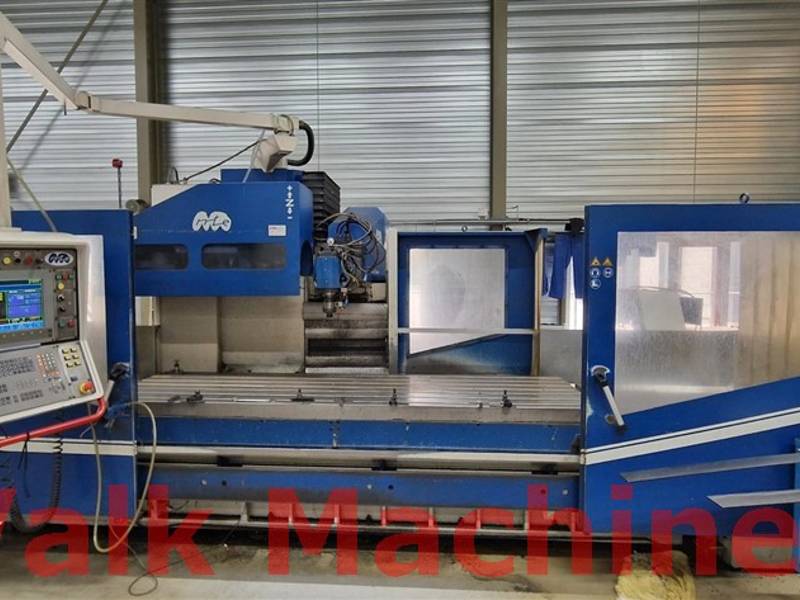

CNC Bedmillingmachine MTE X: 3.000 mm
TECHNICAL SPECIFICATIONS

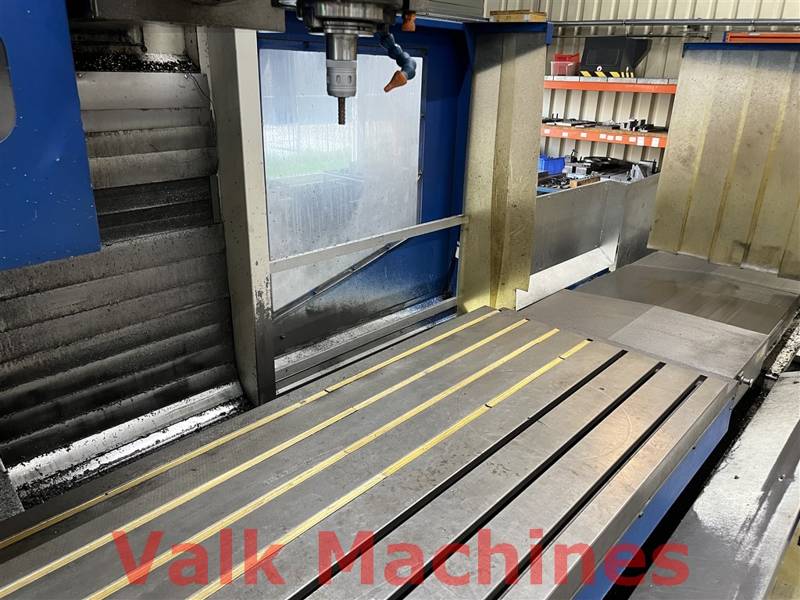

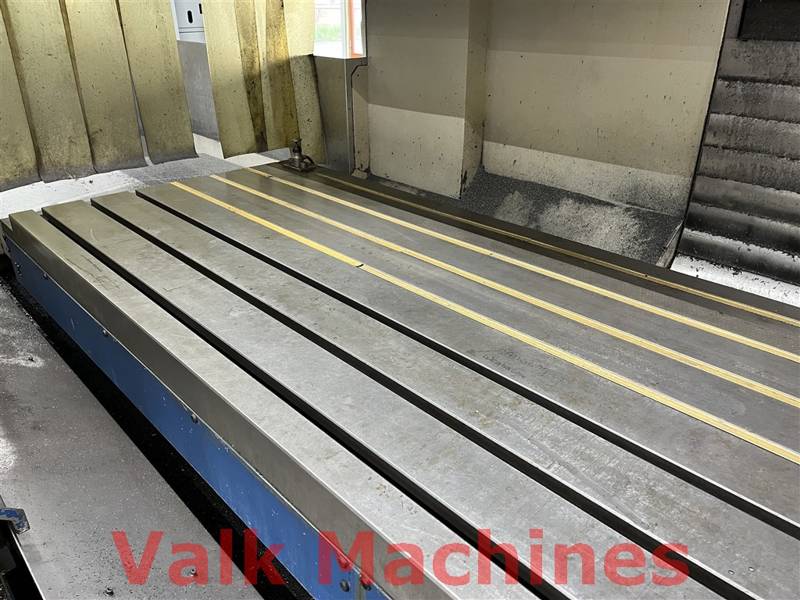

| Table size: | 3.200 x 1.000 mm |
| X-axis: | 3.000 mm |
| Y-axis: | 1.000 mm |
| Z-axis: | 1.000 mm |
| Max. load on table: | 11.000 kg |

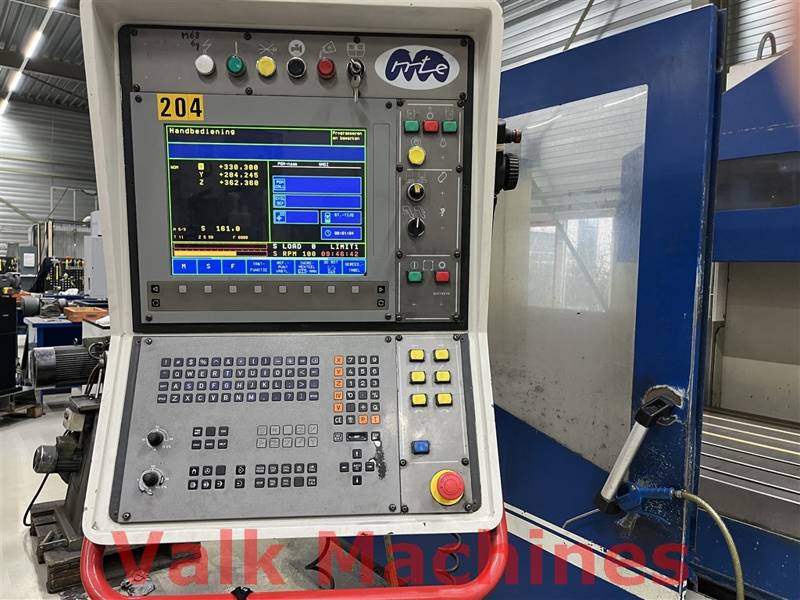

| Controller: | Heidenhain TNC 430 |

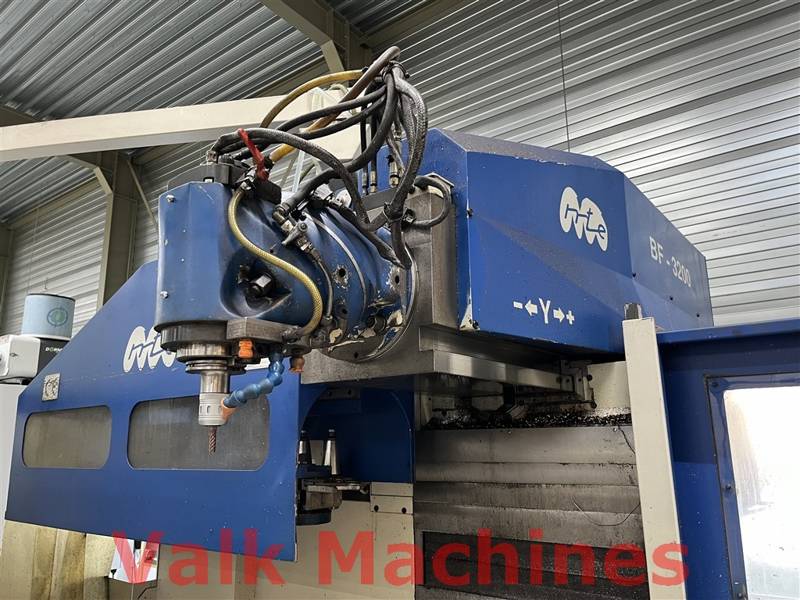

| Spindle nose: | ISO 50 |
| Spindle speed: | 3.000 Rpm |
| Toolchanger: | 13 pockets |
| Featured with: | - Cooling unit - Chipconveyor - ISO tools - Touch probe - Machine manuals |
| Country of origin: | Spain |
| Motor power: | 40 kW |
| Machine LxWxH: | 750 x 400 x 320 cm |
| Machine weight: | 18.500 kg |
CNC Bedmillingmachine MTE X: 3.000 mm
