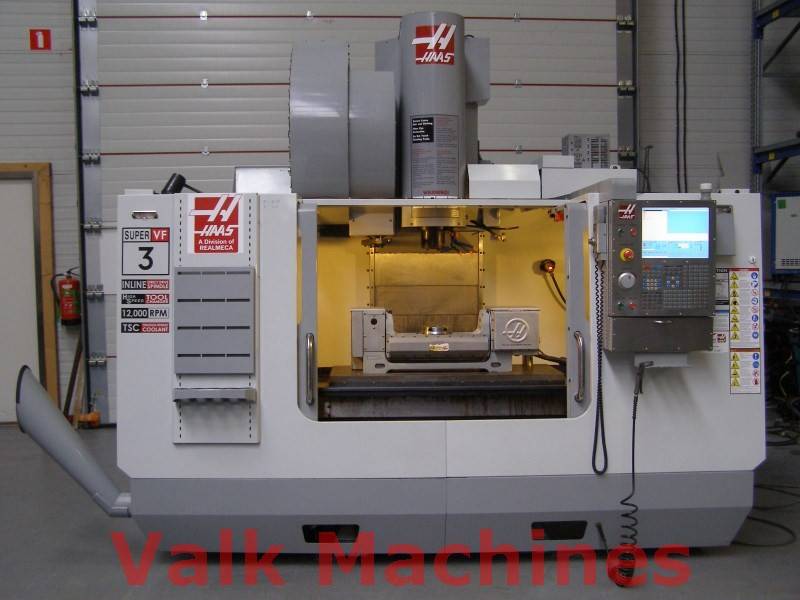

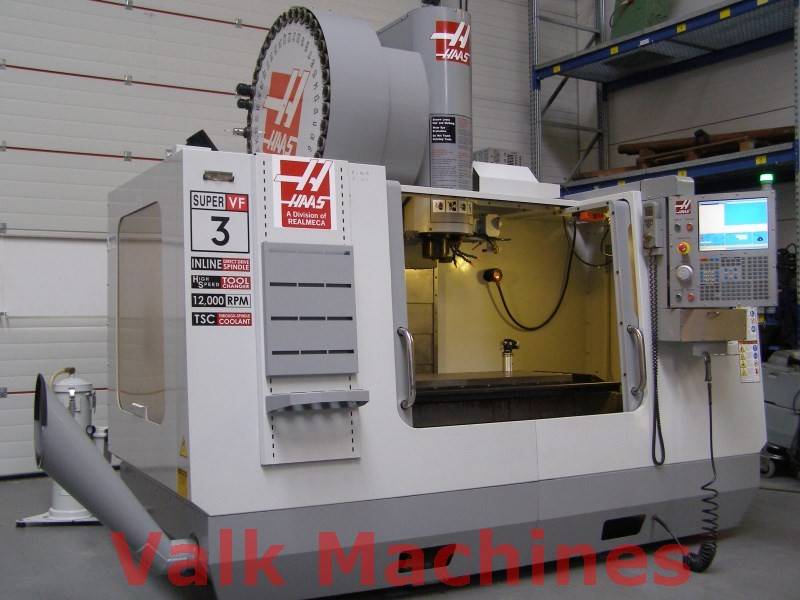

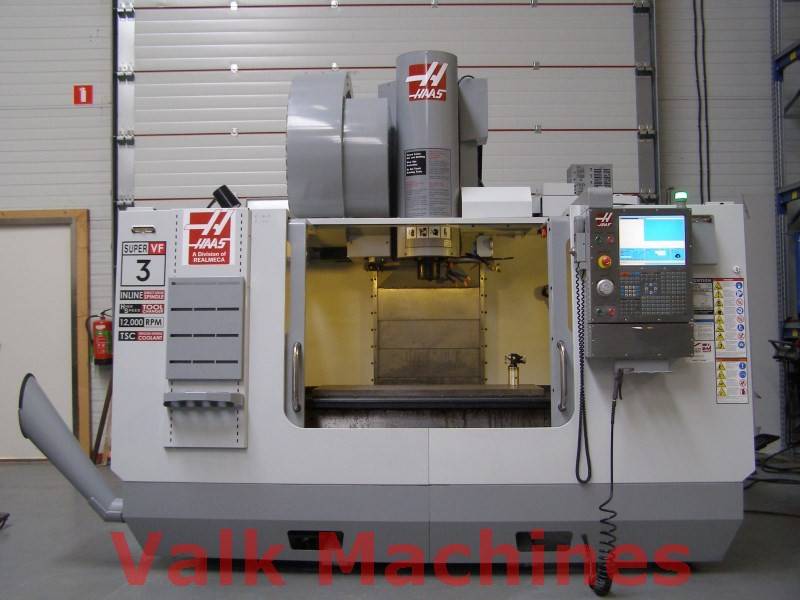

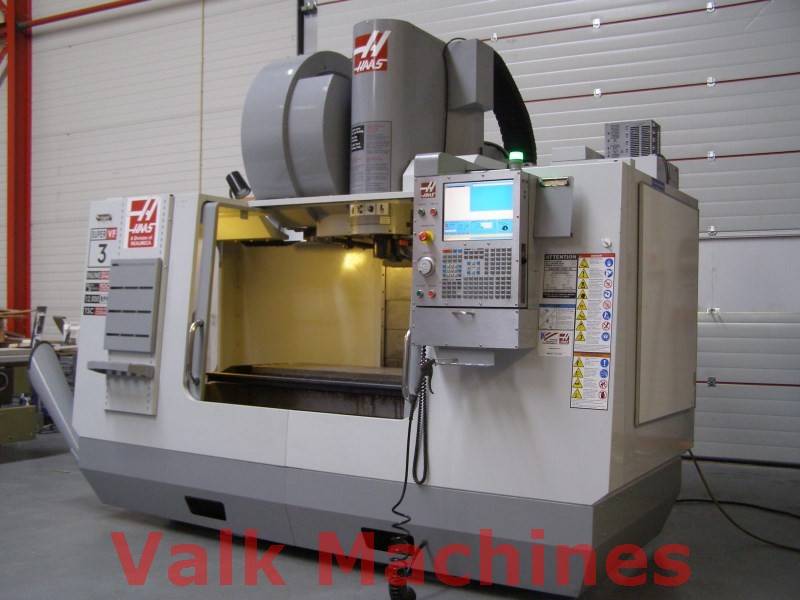

CNC Vertical Haas VF-3 5-axis
5-Axis Vertical Machining Center Haas
| X-axis: | 1.016 mm |
| Y-axis: | 508 mm |
| Z-axis: | 635 mm |
| CNC Controll: | Haas CNC |

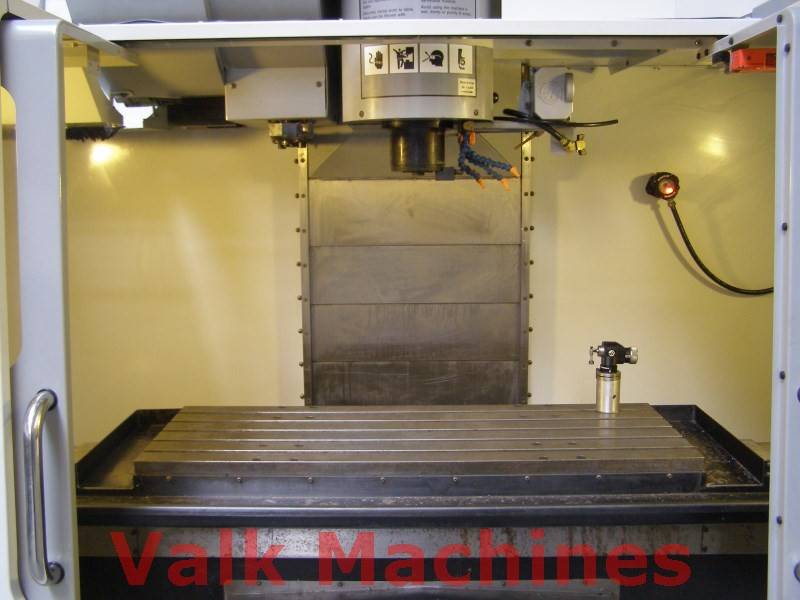

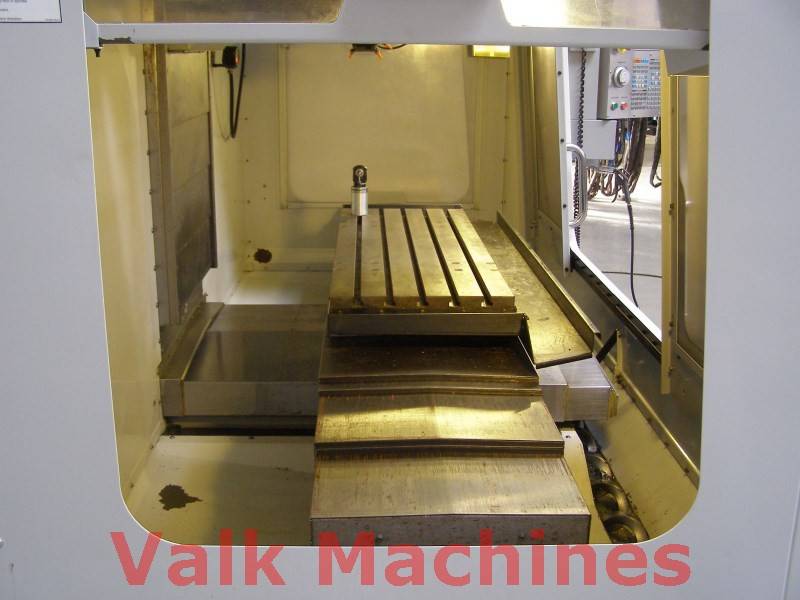

| Table size: | 1.219 x 457 mm |
| Rapid feed X/Y/Z-axis: | 35,6 m/min |
| Spindle speed max: | 12.000 Rpm |
| Spindle taper: | ISO 40 |
| Distance spindle - table min/max: | 102/737 mm |

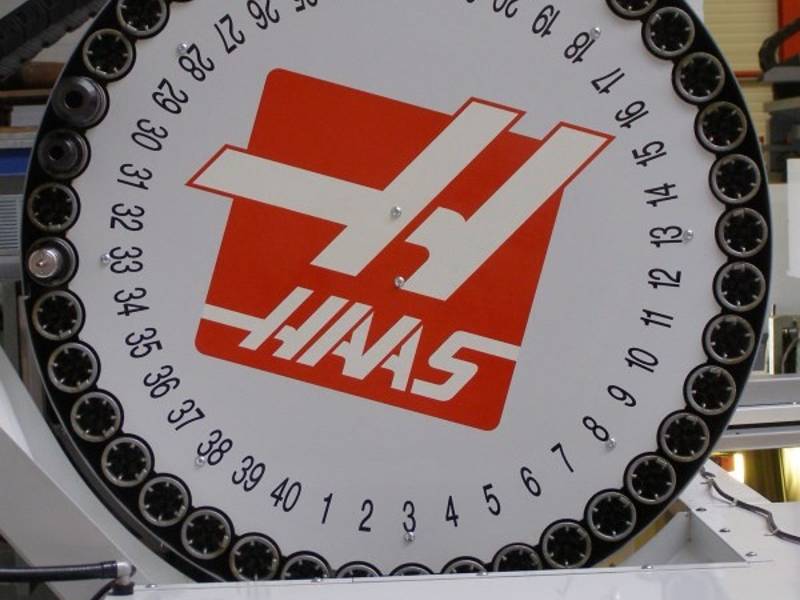

| Tool changer: | 40 positions |

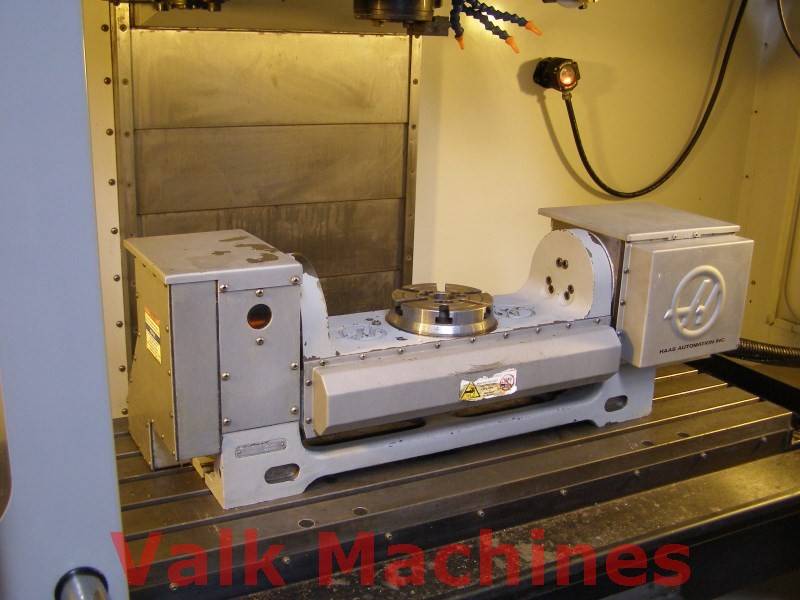

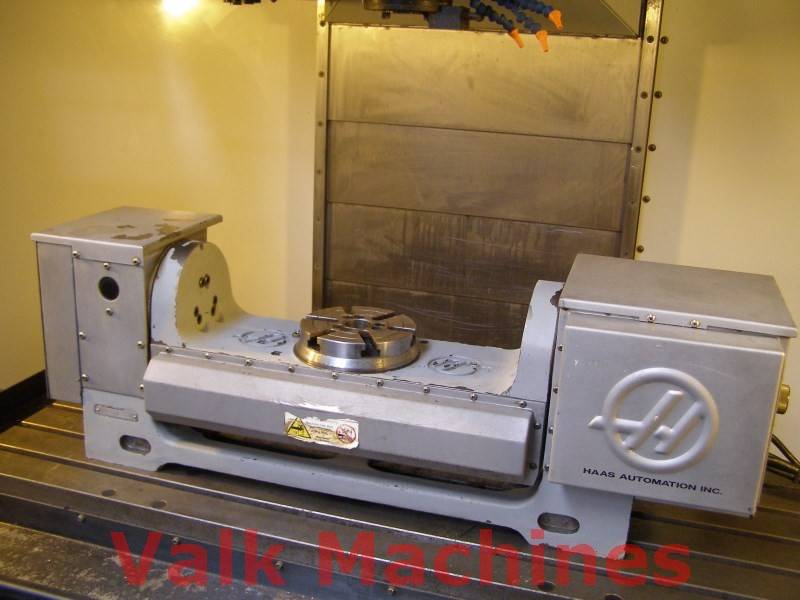

| 4e/5e axis rotary table: | Haas TR160 |
| Rotary: | 999.999º |
| Rotary speed: | 0.001 - 80 º/sec. |
| Tilting: | 120º |
| Tilting speed: | 0.001 - 80 º/sec. |
| Featured with: | - Coolant thought spindle |

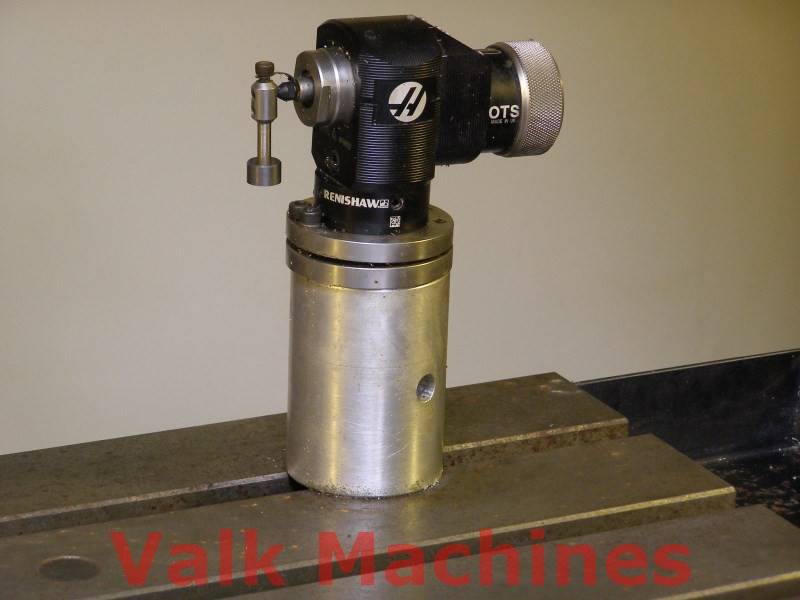

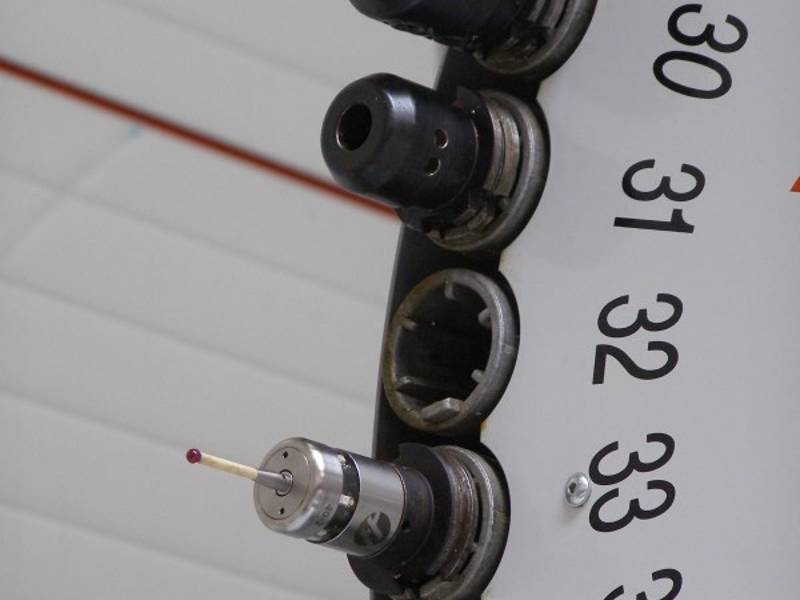

| - Renishaw 3D transmission probe | |

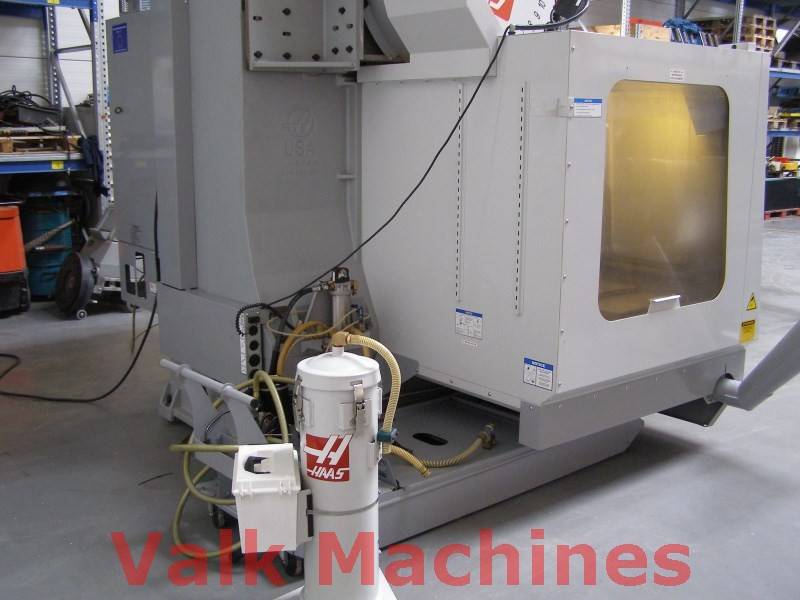

| - Chipconveyor | |
| - Remote Jog handle | |
| - Documentation | |
| Country of origin: | USA |
| Engine power: | 22 HP |
| Machine weight: | 8.000 kg |
| Machine LxWxH: | 4.000 x 2.450 x 2.900 mm |
