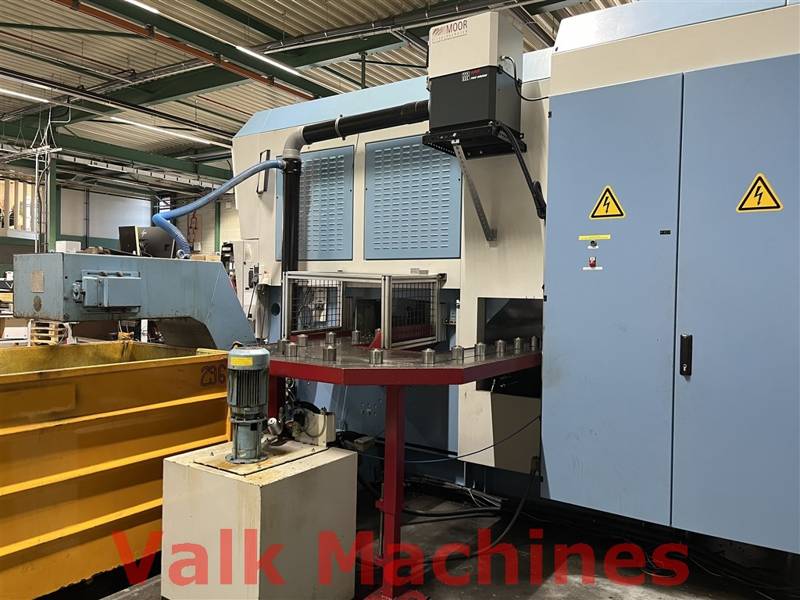

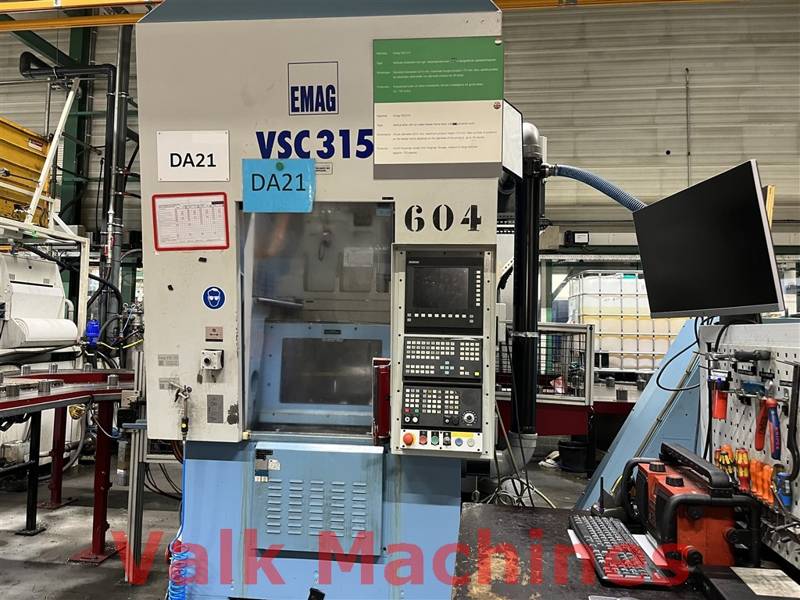

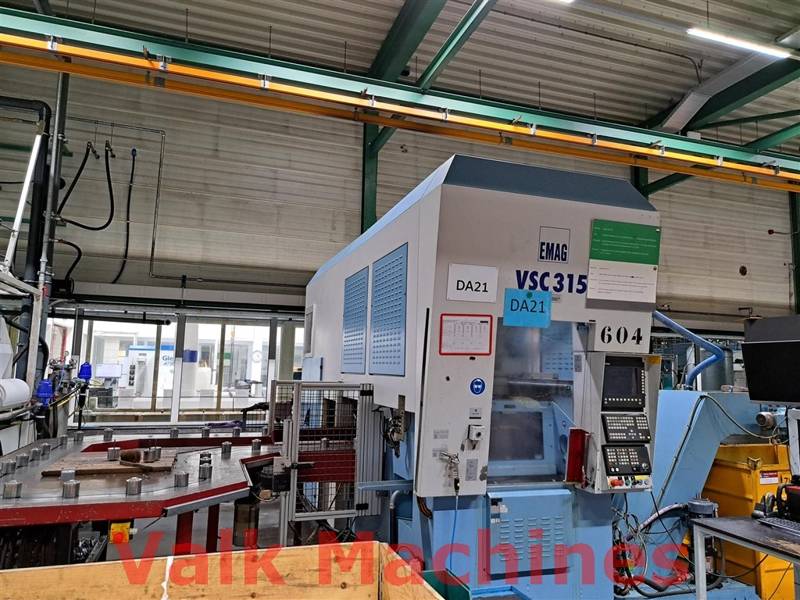

Emag vertical turning centre VSC 315
TECHNICAL SPECIFICATIONS
| Turning diameter: | 340 mm |
| Turning length: | 125 mm |
| Chuck: | Ø 315 mm |
| Spindle bearing: | Ø 120 mm |
| Spindle speed: | 4300 Rpm |
| X-axis movement: | 850 mm |
| Z-axis movement: | 250 mm |
| Rapid feed X-axis: | 45 m/min. |
| Rapid feed Z-axis: | 30 m/min. |

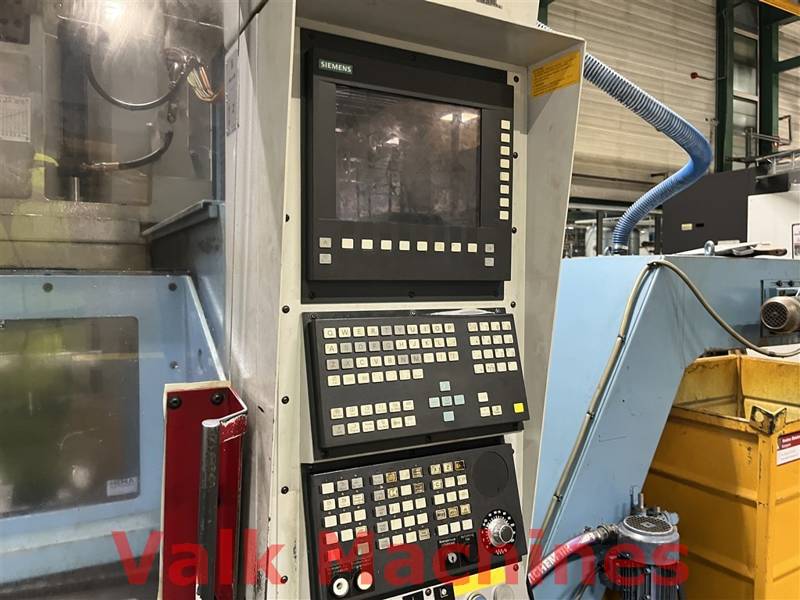

| CNC Controller: | Siemens 840D |
| Tool turret: | 12-fold with driven tools |

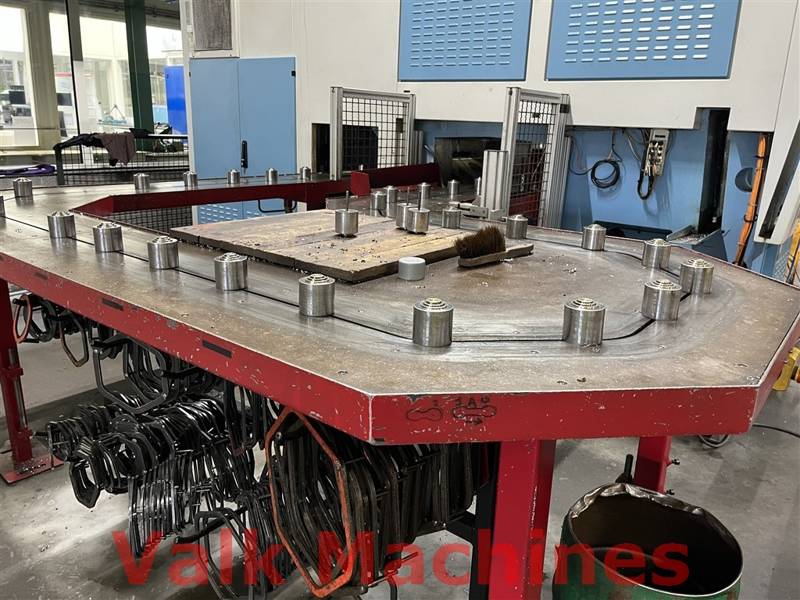

| Workpiece conveyor: | suitable for 38 pieces |
| Workpiece size: | Ø220 mm x 125 mm |
| Workpiece change: | 4 Sec. |
| Fearred with: | - Cooling unit - Chipconveyor - Drive tools - User Manuals |
| Motor power: | 43 kW |
| Machine LxWxH: | 3.700 x 1.450 x 2.950 mm |
| Machine weight: | 11.000 kg |
Emag vertical turning centre VSC 315
