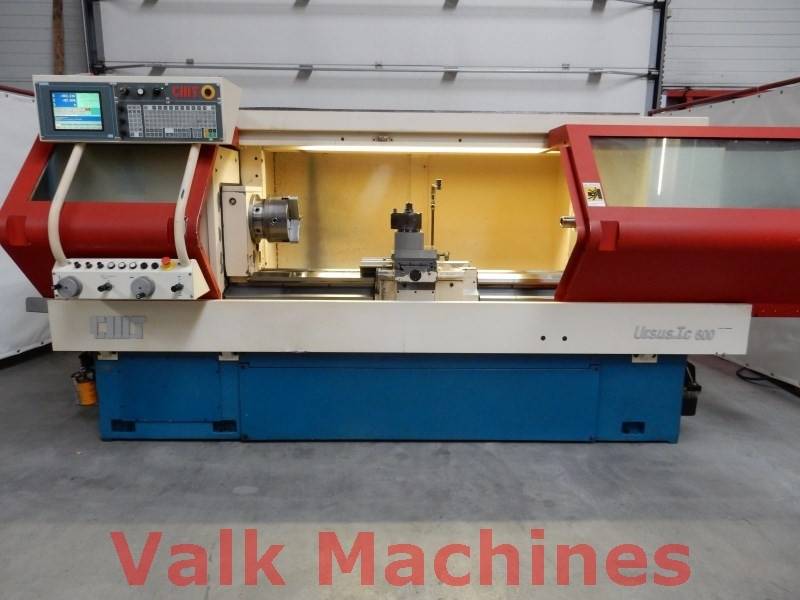

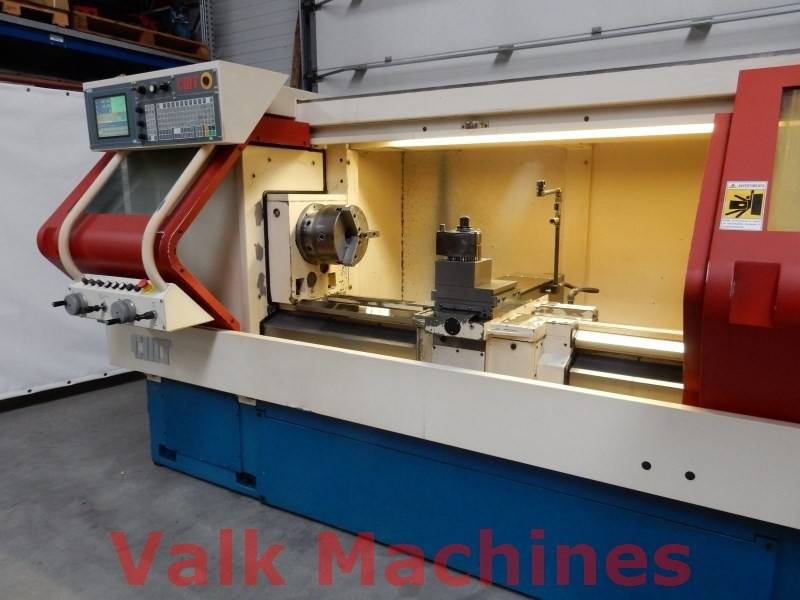

CNC Lathe CMT Ursus TC 600 x 1.500 mm
CNC Lathe CMT Ursus
| Centre distance: | 1.500 mm |
| Turning diameter: | 600 mm over bed |
| 365 mm over cross slide | |

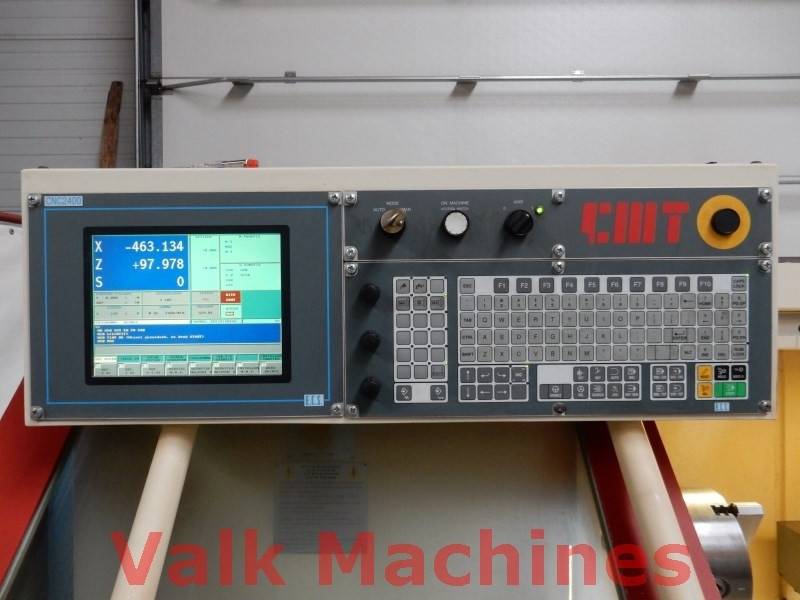

| Controll: | Ursus CMT ECS 2400 |
| Spindle speeds: | 0 - 2.000 Rpm |
| Spindle bore: | 105 mm |
| Feed: | 0 - 5.000 mm/omw. |
| Travel cross slide: | 250 mm |
| Featured with: | - Various chuck jaws |
| - Multifix toolholders | |
| - Users manual | |
| Country of origin: | Italy |
| Motor power: | 15 kW |
| Machine weight: | 3.000 kg |
TECHNICAL SPECIFICATIONS
| CNC Lathe CMT Ursus | |
| Centre distance | 1.500 mm |
| Turning diameter | 600 mm over bed 365 mm over cross slide |
| Controll | Ursus CMT ECS 2400 |
| Spindle speeds | 0 - 2.000 Rpm |
| Spindle bore | 105 mm |
| Feed | 0 - 5.000 mm/omw. |
| Travel cross slide | 250 mm |
| Featured with | - Various chuck jaws - Multifix toolholders - Users manual |
| Country of origin | Italy |
| Motor power | 15 kW |
| Machine weight | 3.000 kg |
CNC Lathe CMT Ursus TC 600 x 1.500 mm
