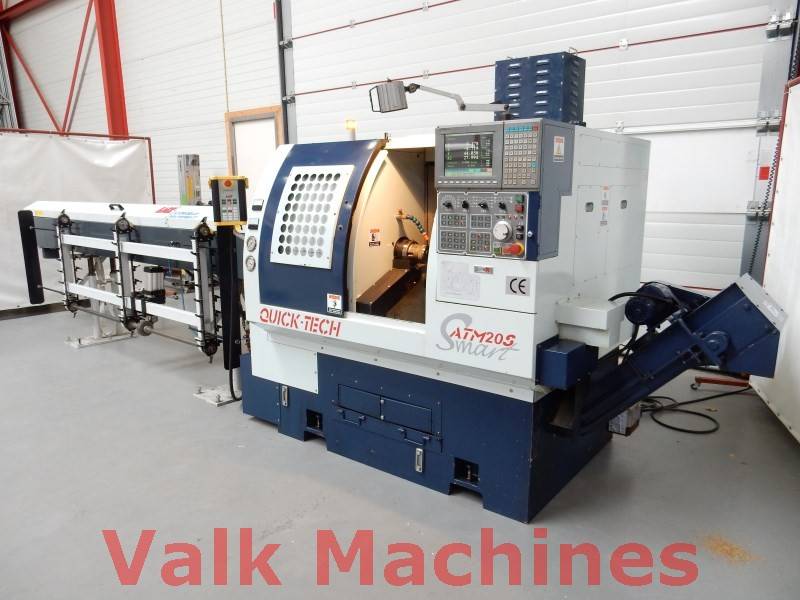

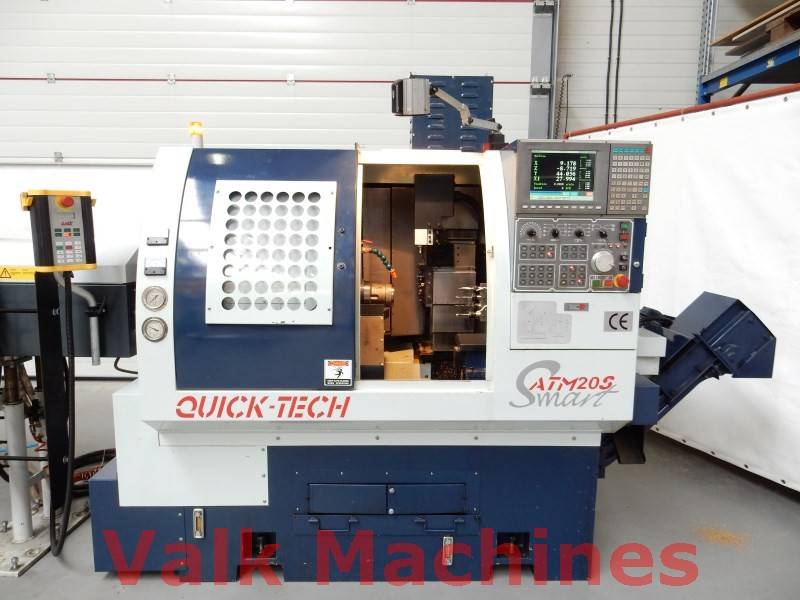

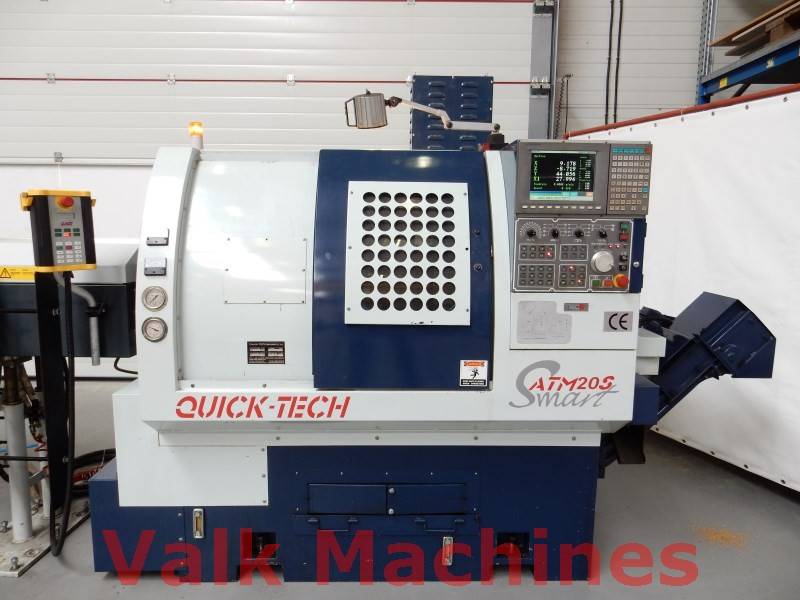

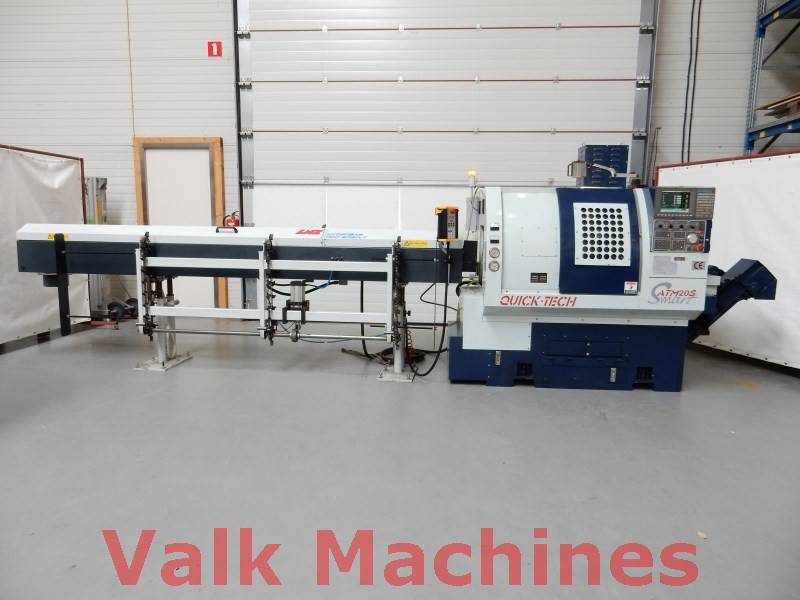

CNC Lathe Quick-Tech ATM120S
CNC Lathe Quick-Tech
| Turning diameter: | 42 mm |
| Turning length: | 225 mm |

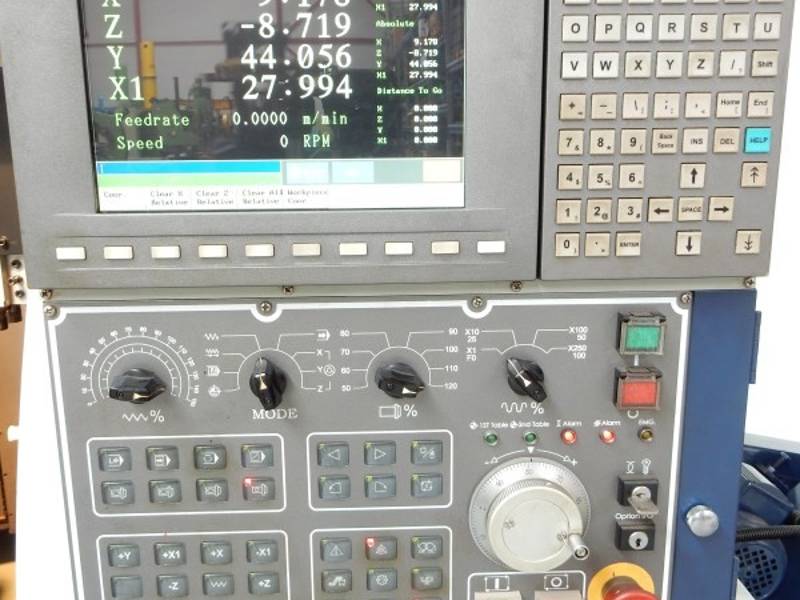

| CNC Control: | Fanuc-0T |
| Spindle speed: | 100 - 4.000 Rpm |
| Spindle bore: | 44 mm |
| Feed on axis: | 0,015 - 5.000 mm/min. |
| X-axis movement: | 175 mm |
| Y-axis movement: | 200 mm |
| Z-axis movement: | 200 mm |
| X1-axis movement: | 250 mm |
| Z1-axis movement: | 235 mm |
| ATC 1: | 9x Tools ER-20 |
| ATC 2: | 4x Tools ER-20 |
| Driven tools: | 2x Tools ER-16 |
| Tooling speed: | 50 - 3.500 Rpm |

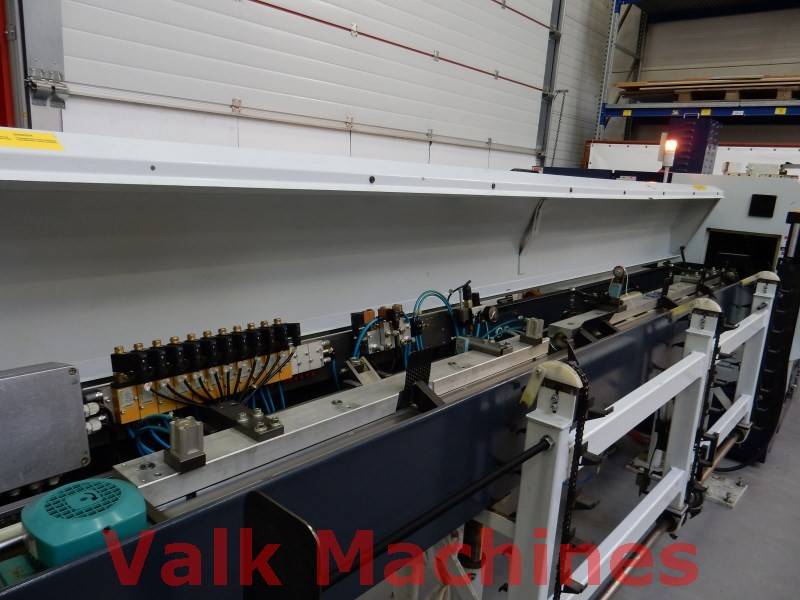

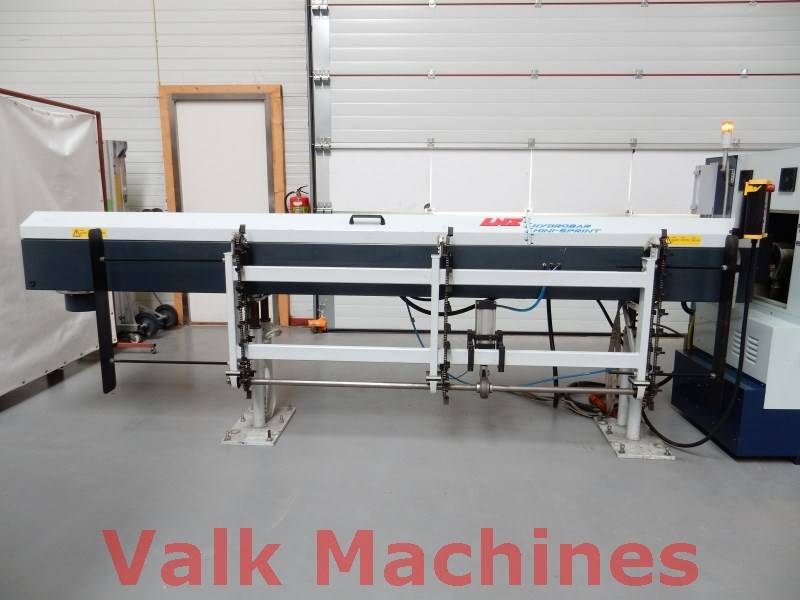

| Bar feeder: | LNS Mini-sprint S2 |
| Bar length: | 3.300 mm |
| Country of Manufacture: | Taiwan |
| Spindle power: | 7,5 kW |
| Machine weight: | 2.750 kg |
| Machine LxWxH: | 2.700 x 1.550 x 1.750 mm |
TECHNICAL SPECIFICATIONS
| CNC Lathe Quick-Tech | |
| Turning diameter | 42 mm |
| Turning length | 225 mm |
| CNC Control | Fanuc-0T |
| Spindle speed | 100 - 4.000 Rpm |
| Spindle bore | 44 mm |
| Feed on axis | 0,015 - 5.000 mm/min. |
| X-axis movement | 175 mm |
| Y-axis movement | 200 mm |
| Z-axis movement | 200 mm |
| X1-axis movement | 250 mm |
| Z1-axis movement | 235 mm |
| ATC 1 | 9x Tools ER-20 |
| ATC 2 | 4x Tools ER-20 |
| Driven tools | 2x Tools ER-16 |
| Tooling speed | 50 - 3.500 Rpm |
| Bar feeder | LNS Mini-sprint S2 |
| Bar length | 3.300 mm |
| Country of Manufacture | Taiwan |
| Spindle power | 7,5 kW |
| Machine weight | 2.750 kg |
| Machine LxWxH | 2.700 x 1.550 x 1.750 mm |
CNC Lathe Quick-Tech ATM120S
