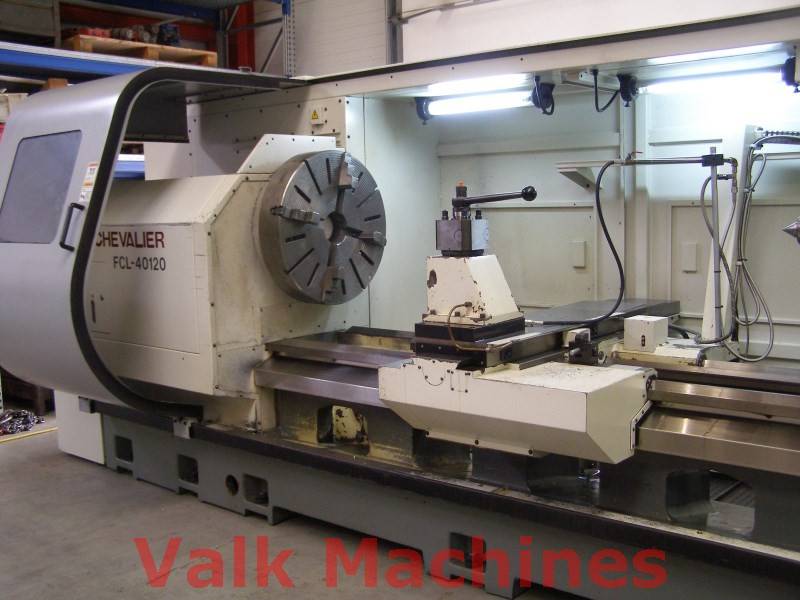

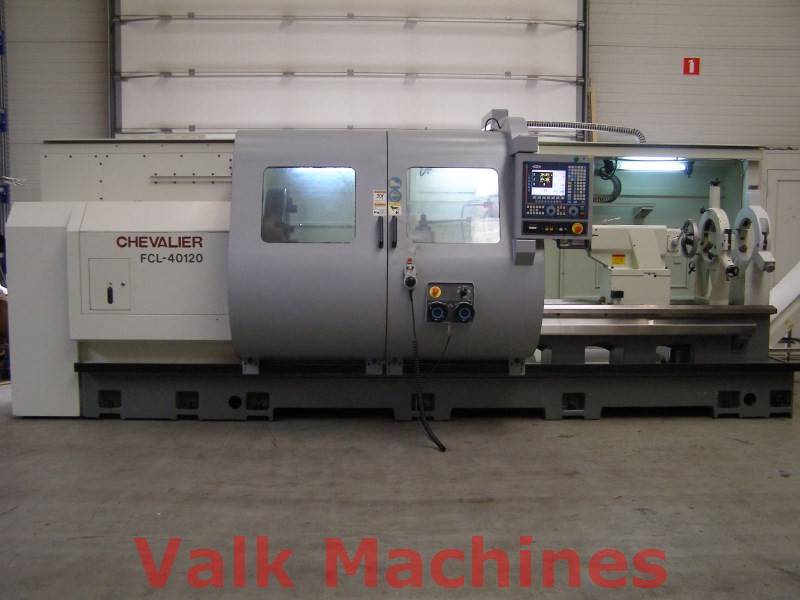

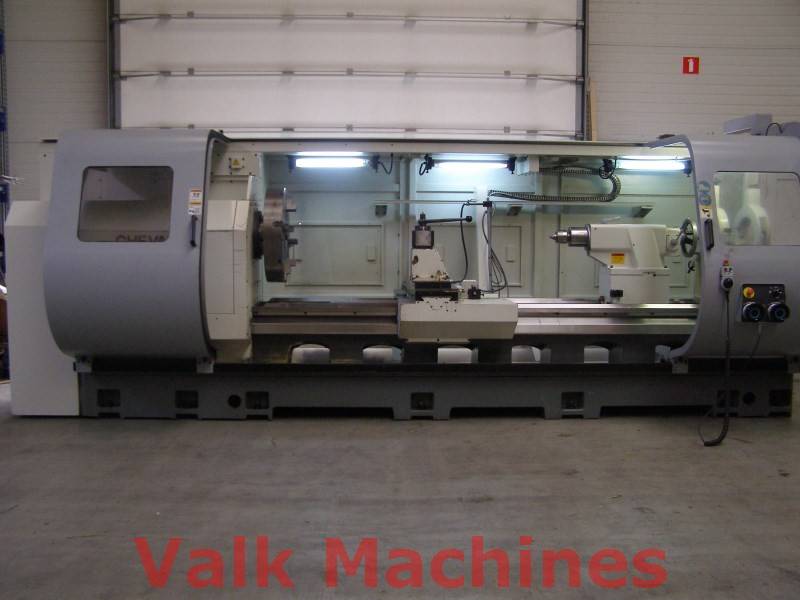

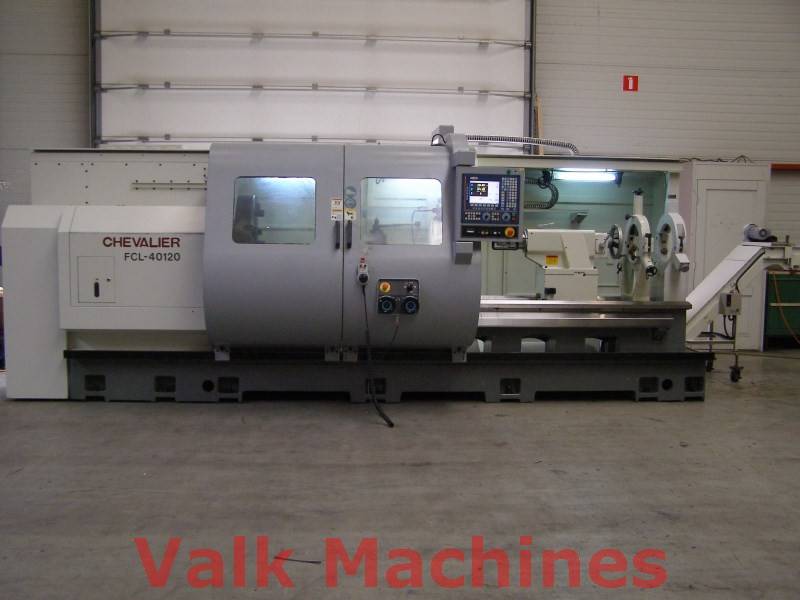

CNC Lathe Chevalier FCL 40120 x 3.000 mm
CNC Lathe Chevalier
| Center distance: | 3.000 mm |
| Center height: | 515 mm |

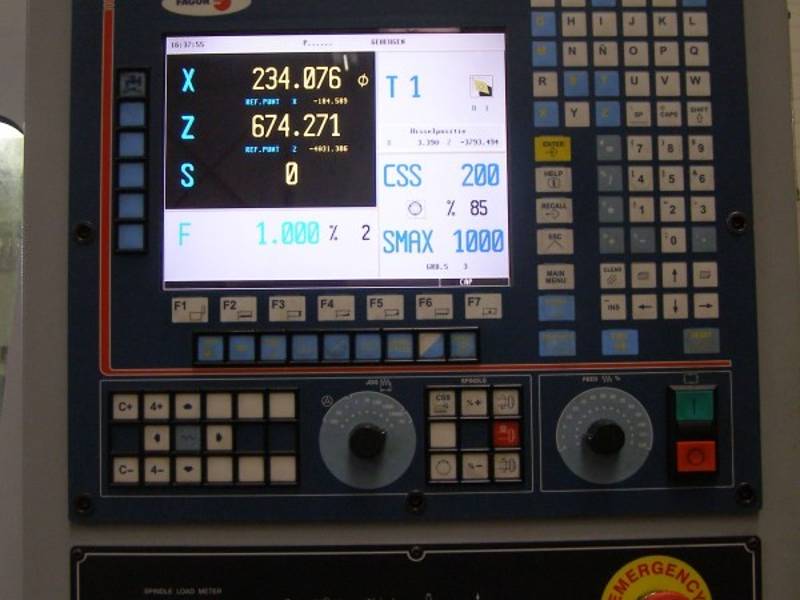

| Controll: | Fagor 8055 TC |
| Turning diameter: | 1.015 mm over bed |
| 670 mm over slides | |
| Bedwide: | 510 mm |
| Spindle bore: | 134 mm |
| Spindle speeds: | 1 - 1.200 Rpm |
| Feed: | 0 - 5.000 mm/min. |
| Travel cross slide / X-axis: | 570 mm |
| Workpiece without steady: | 2.500 kg |
| Workpiece with 1 steady: | 3.500 kg |

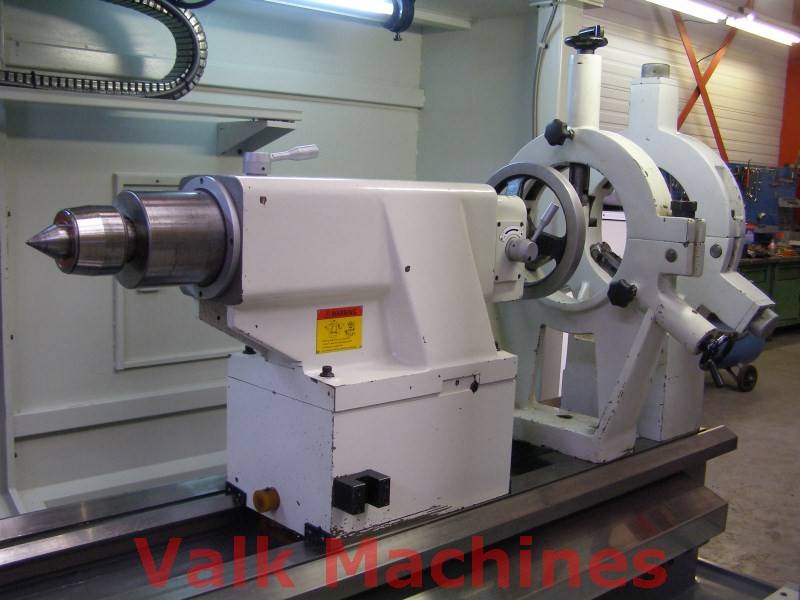

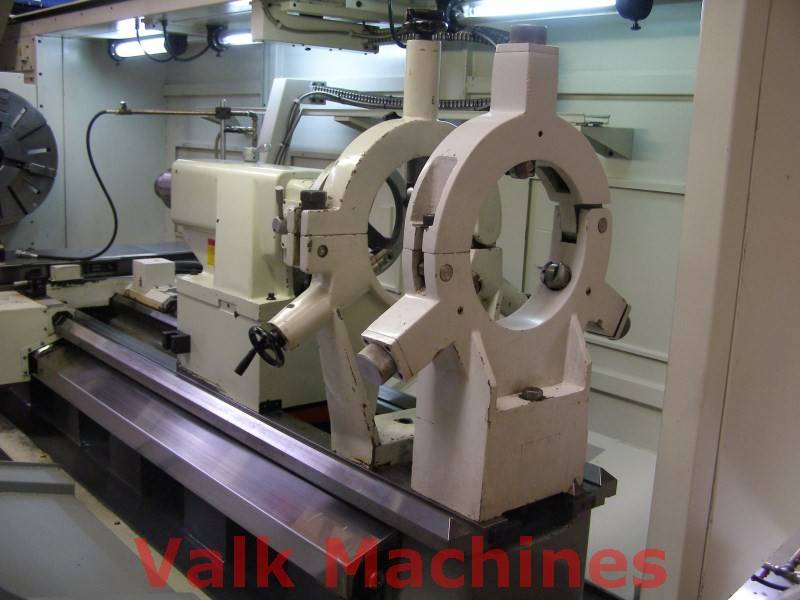

| Featured with: | - 2 Steady rests |

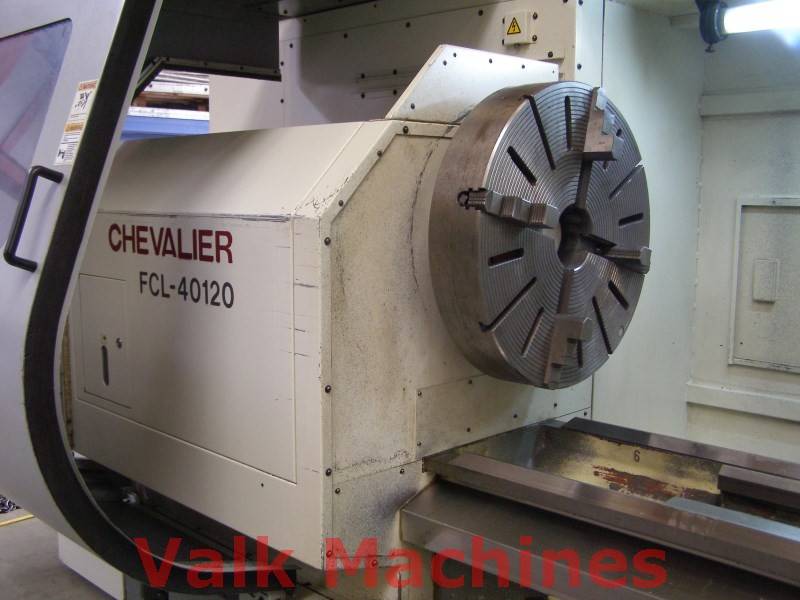

| - 3 & 4 Chucks | |
| - Users manuals | |

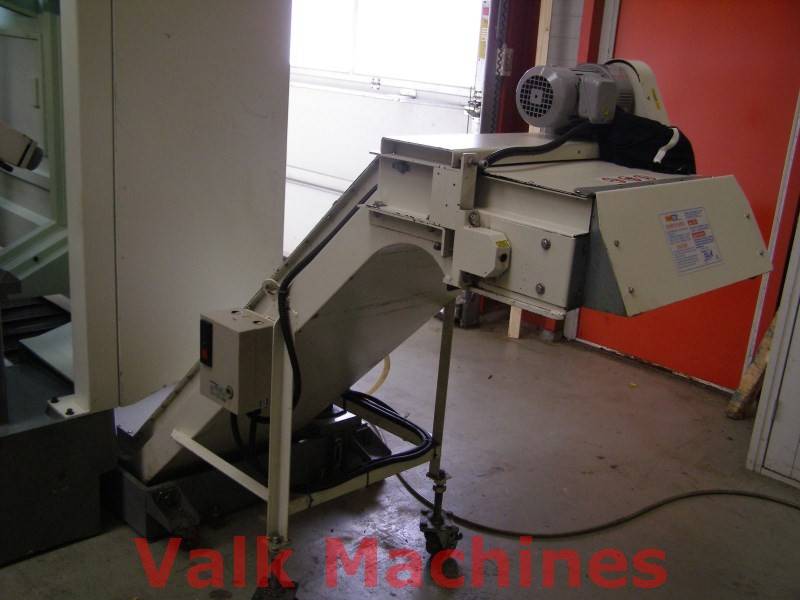

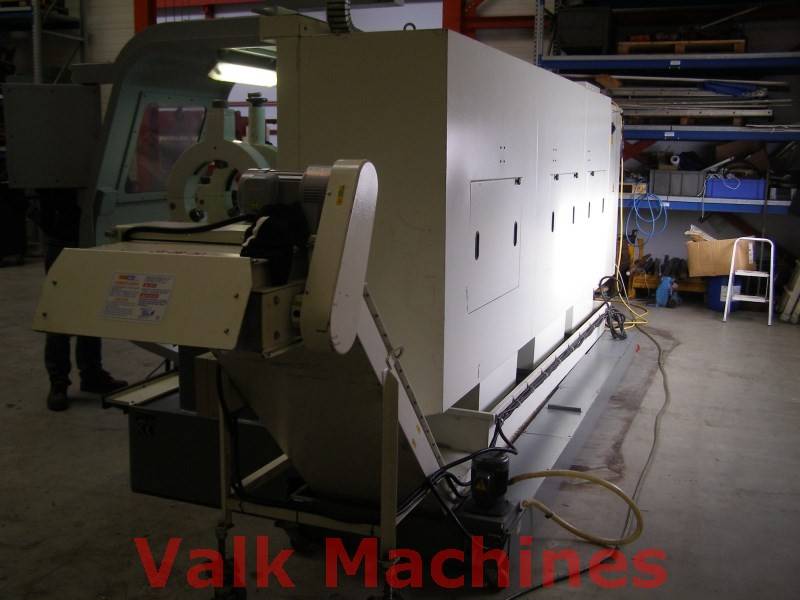

| - Automatic chipconveyor | |
| - Cooling through toolholder | |
| Country of origin: | Taiwan |
| Motor power: | 33 kW |
| Machine weight: | 11.000 kg |
CNC Lathe Chevalier FCL 40120 x 3.000 mm
