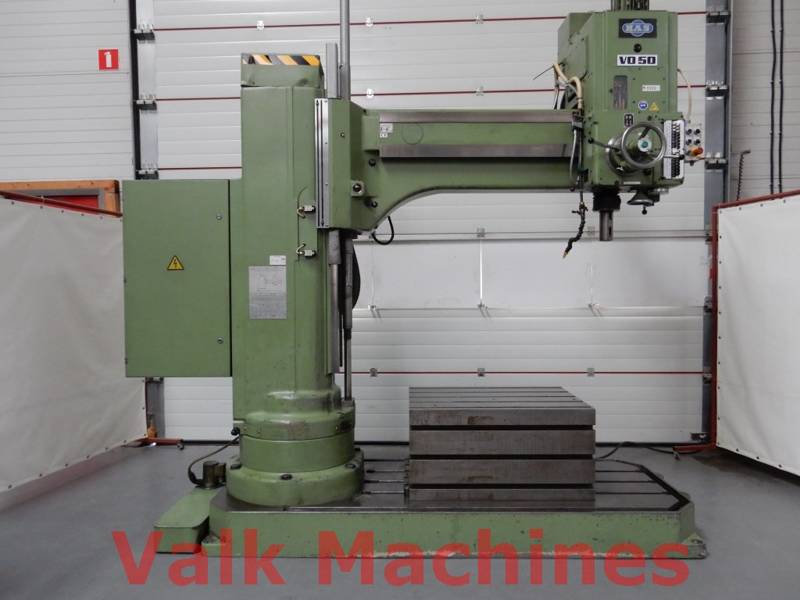

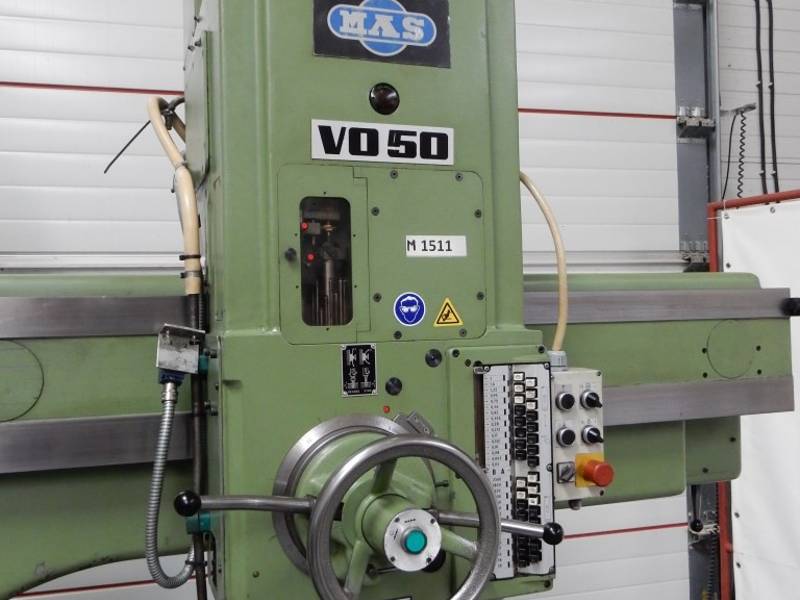

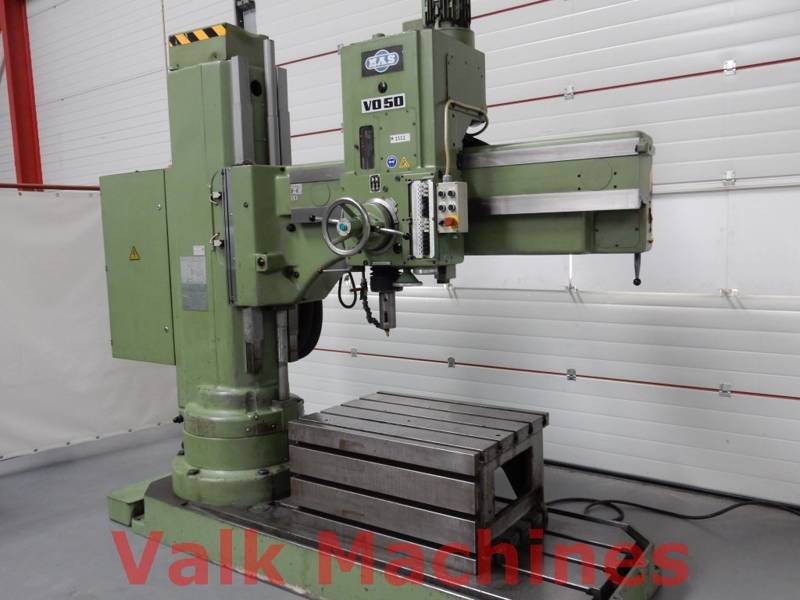

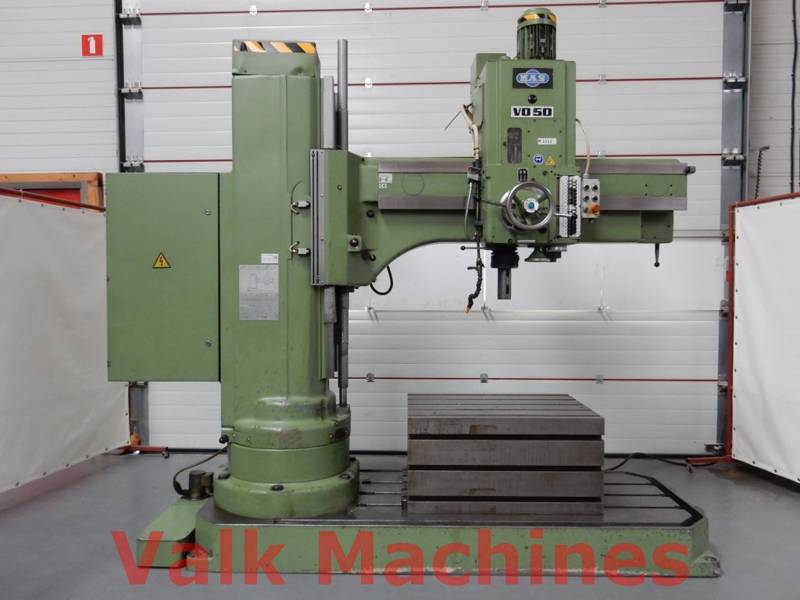

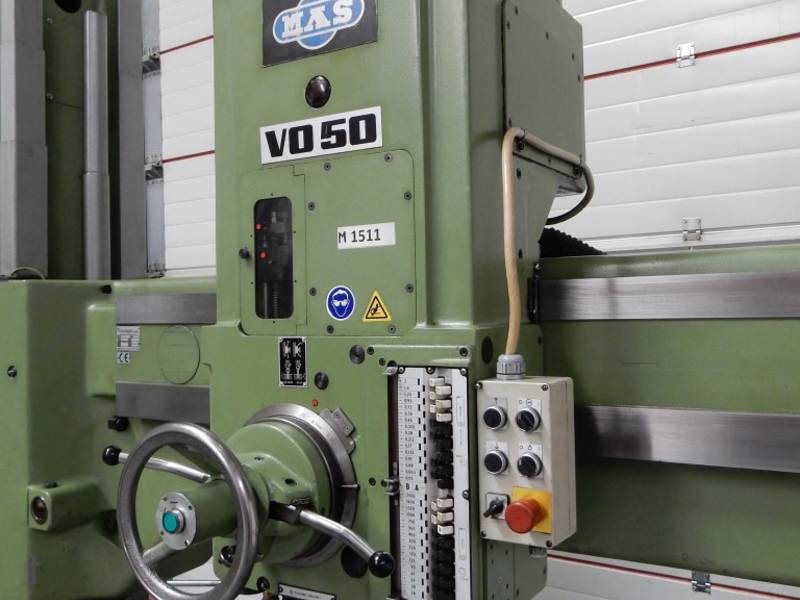

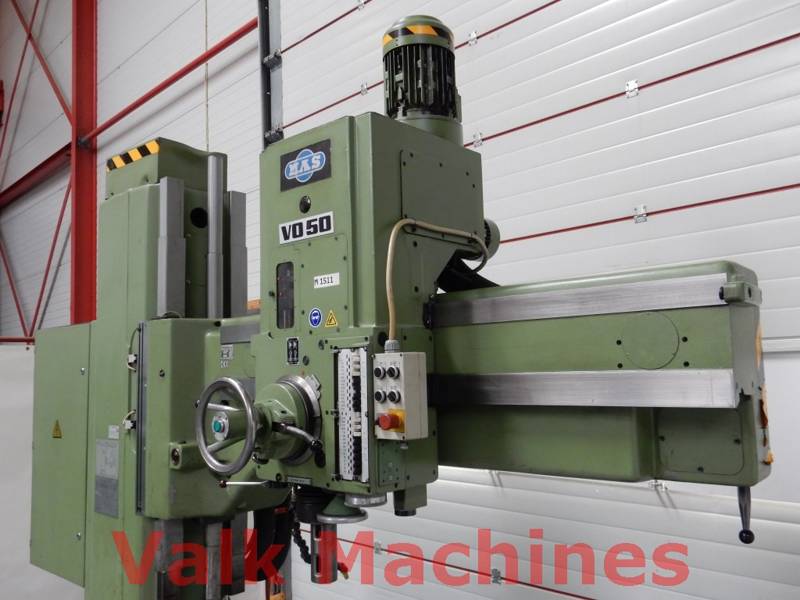

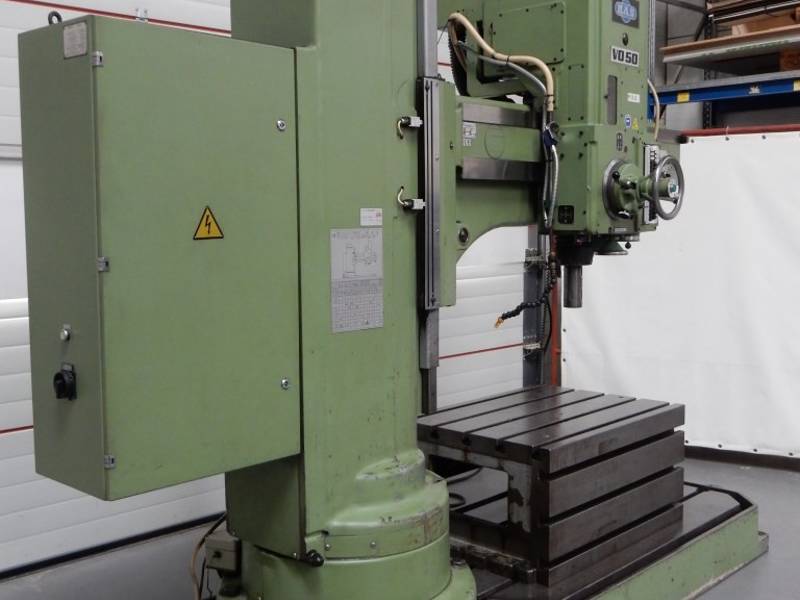

Radial Drilling Machine Mas VO50
TECHNICAL SPECIFICATIONS
| Drillingcapacity steel | Ø 50 mm |
| Tappingcapacity steel | M50 x 1,5 mm |
| Spindle nose | MK 5 |

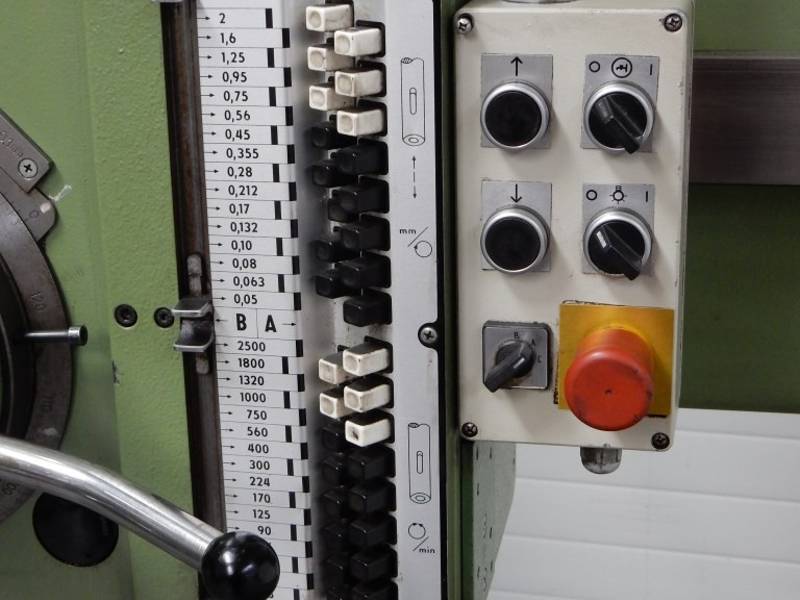

| Spindle speeds | 28 - 2.500 Rpm |
| Spindle feed | 0,05 - 2 mm/rev. |
| Spindle stroke | 310 mm |
| Horizontal throat | 1.600 mm |
| Spindle -> Floorplate | 1.500 max |

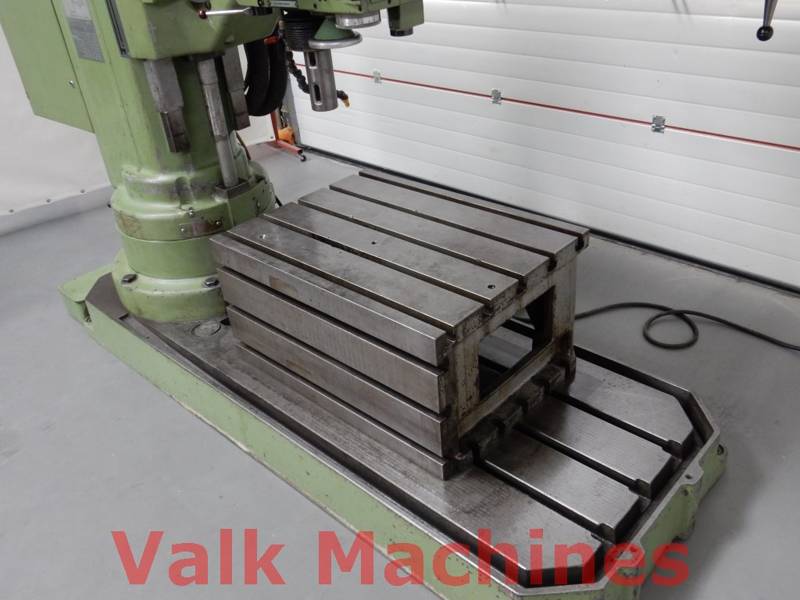

| Drilling table | 1.000 x 750 mm |
| Size floorplate | 1.820 x 986 mm |
| Featured with | - Cooling unit - User manuals |
| Spindle motor | 4 kW |
| Country of origin | Czech Republic |
| Machine weight | 4.500 kg |
| Machine LxWxH | 3.250 x 1.120 x 3.400 mm |
