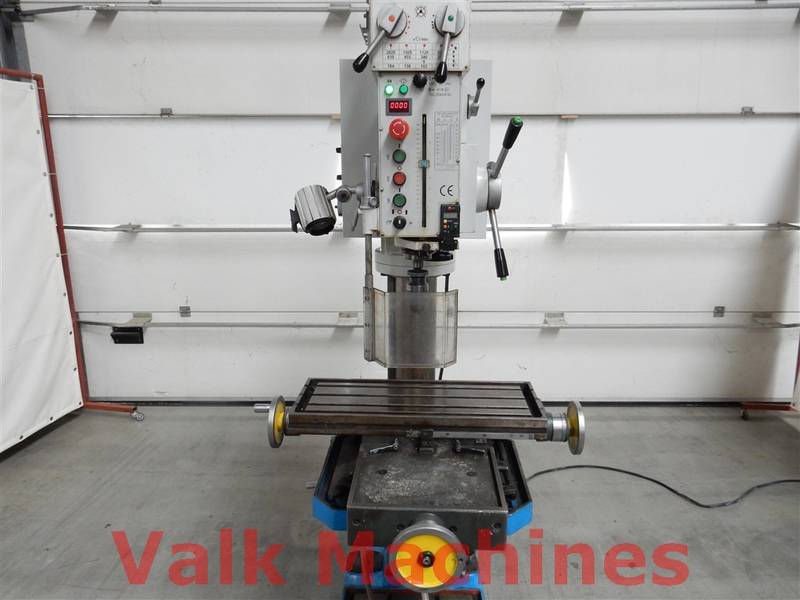

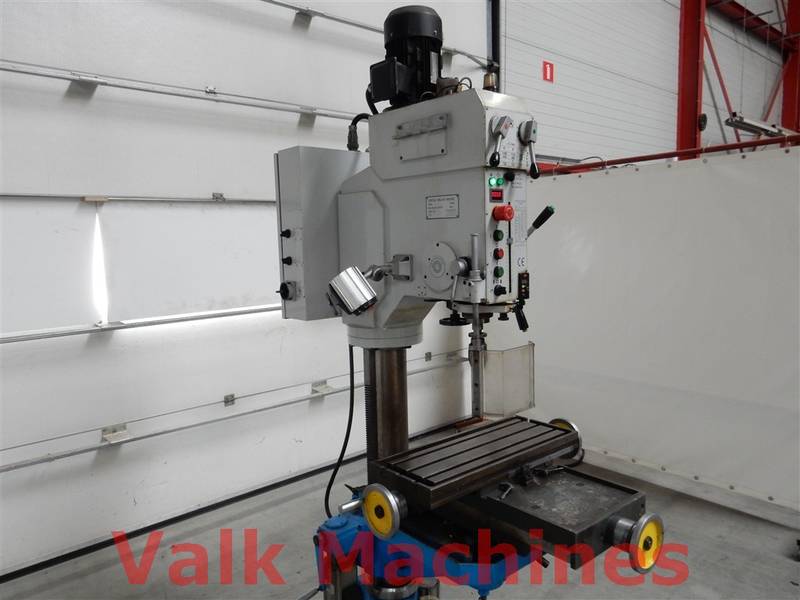

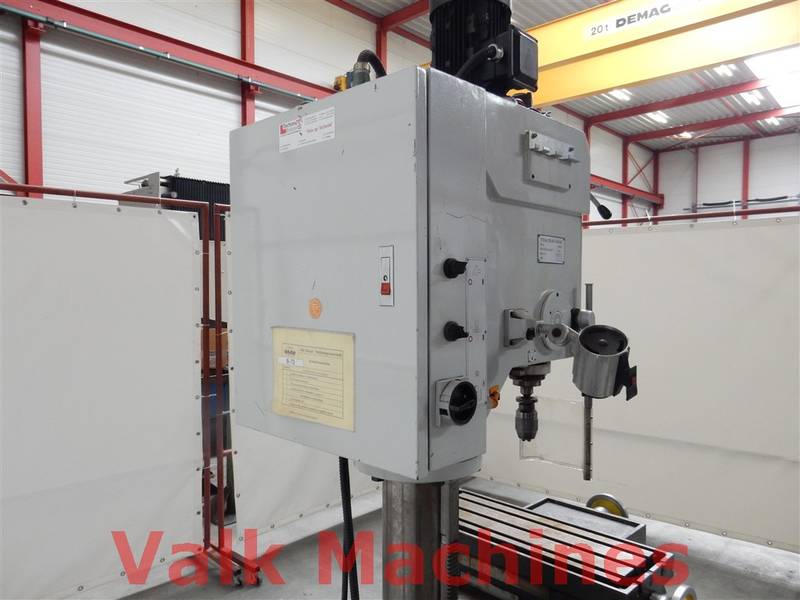

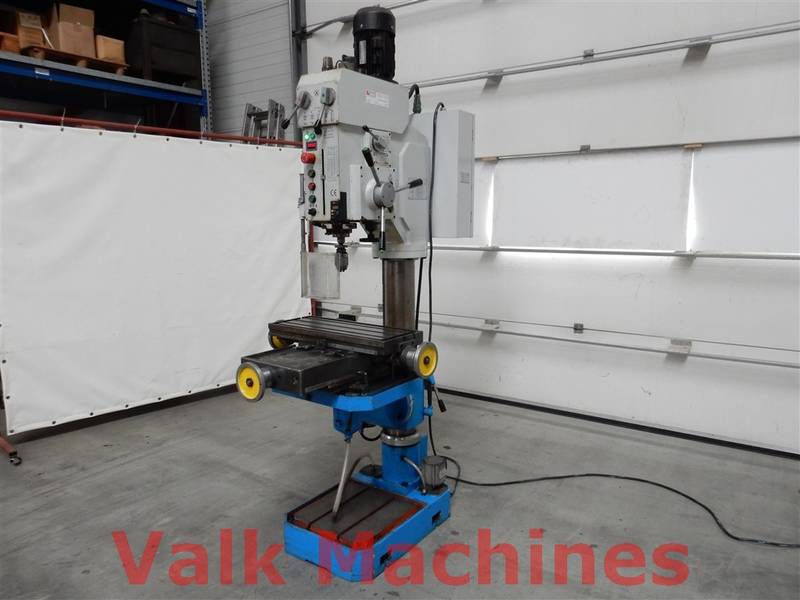

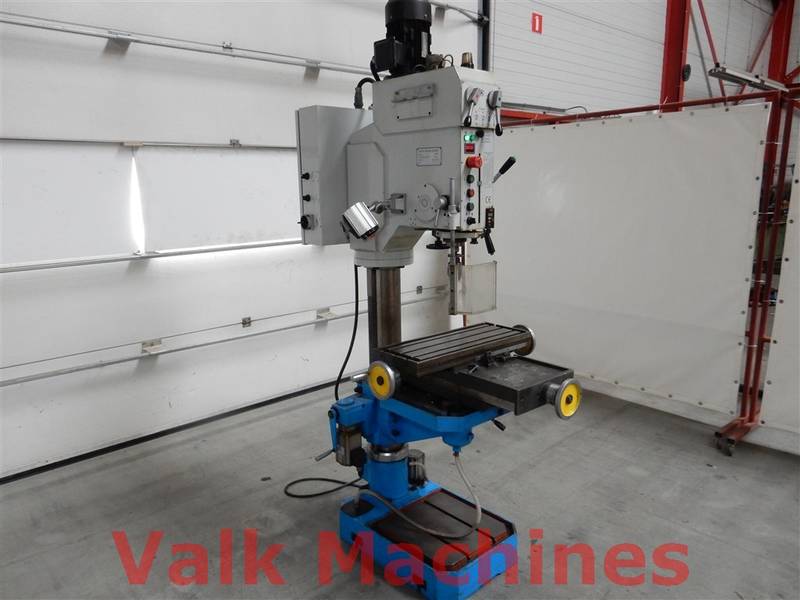

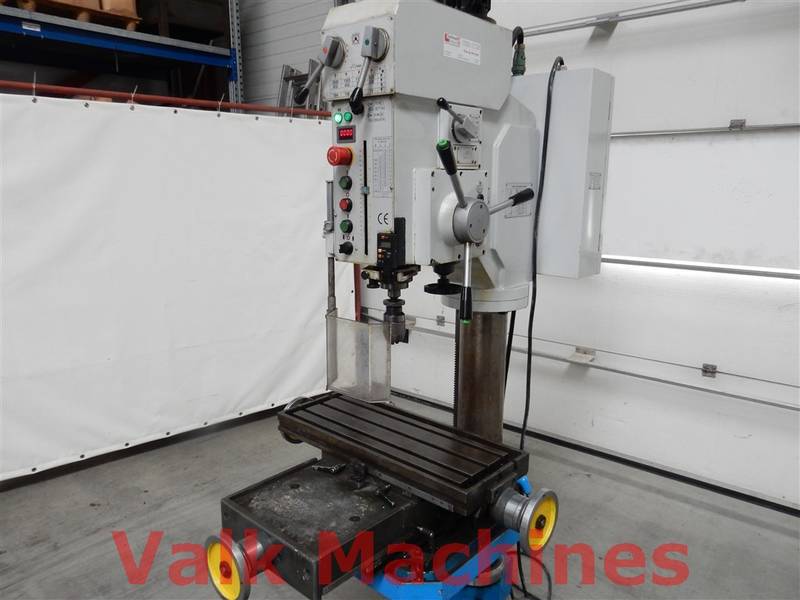

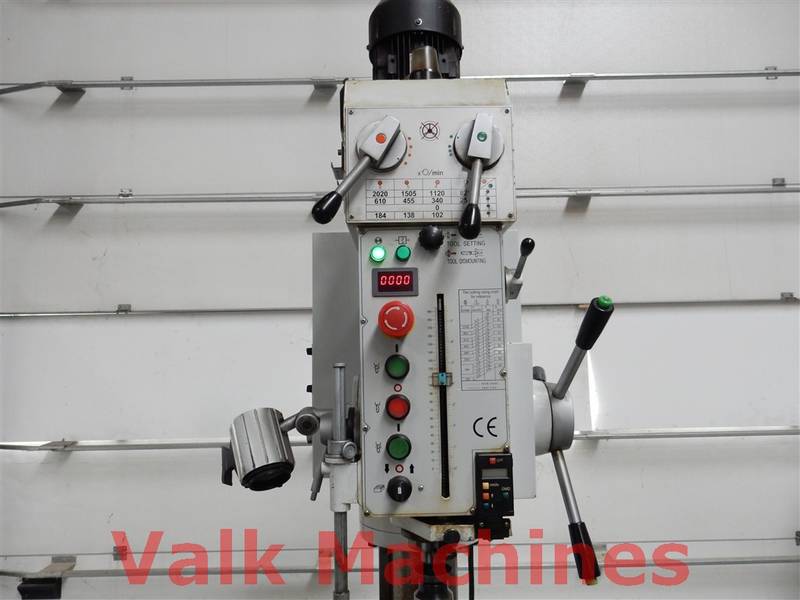

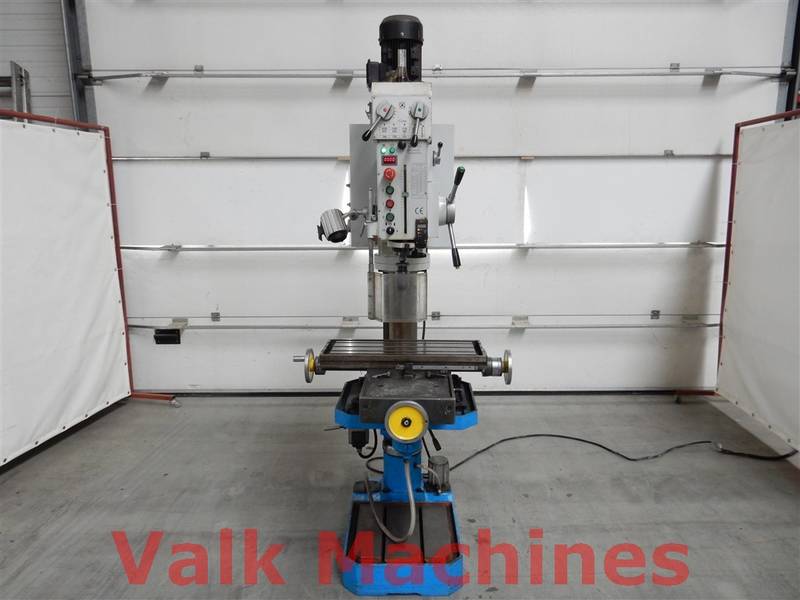

Power drill Bulldog ø35 mm
TECHNICAL SPECIFICATIONS
| Max. drilling capacity (steel): | Ø 35 mm |
| Max. drilling capacity (cast iron): | Ø 40 mm |
| Max. tapping capacity: | M24 |
| Spindle taper: | MT4 |
| Spindle speed range: | 75 – 2020 rpm (12 steps) |

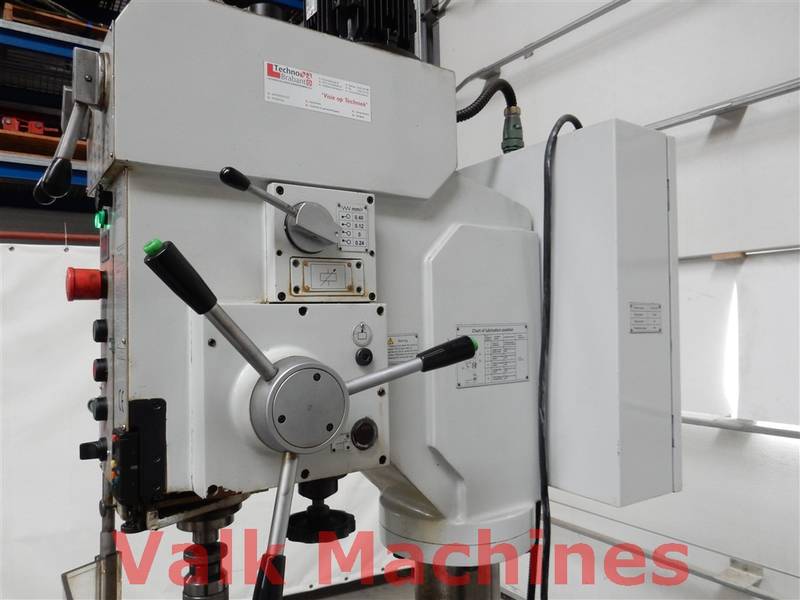

| Spindle auto feed: | 0.12 / 0.24 / 0.40 mm/rev. |
| Spindle stroke: | 190 mm |
| Throat depth: | 340 mm |

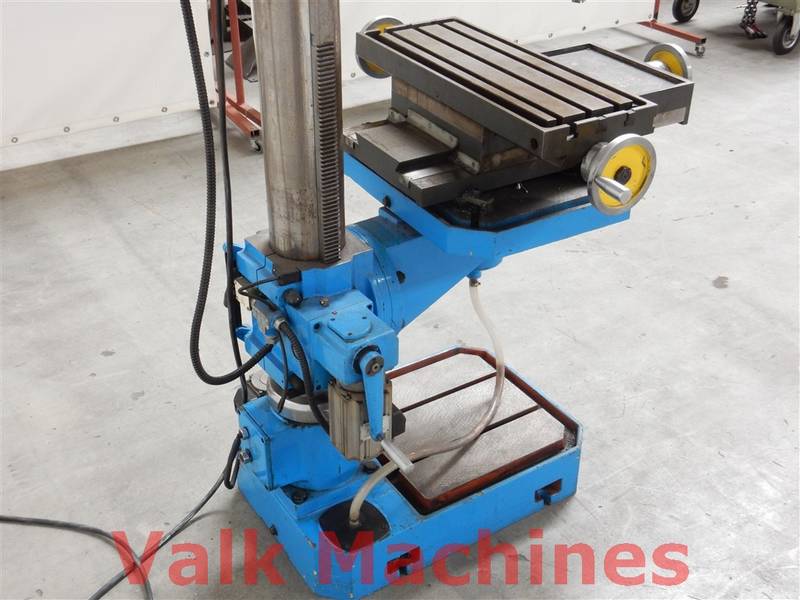

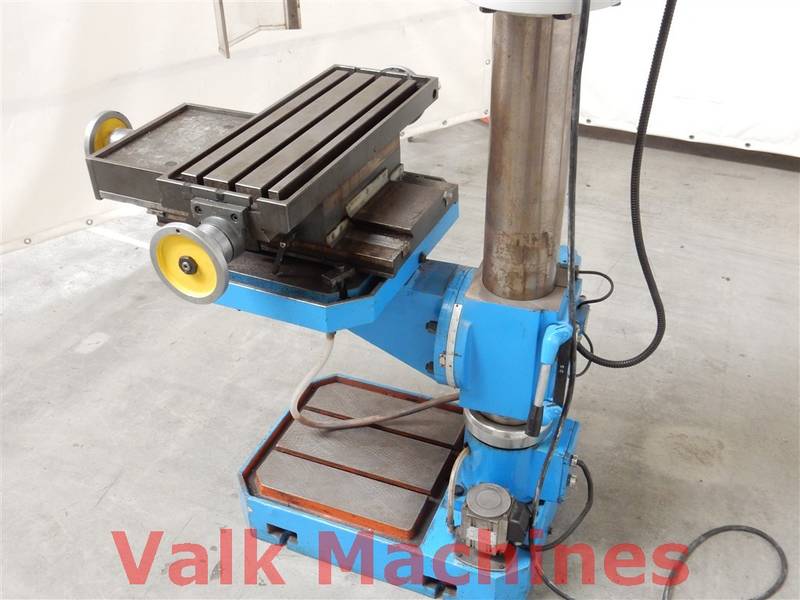

| Crosstable X/Y: | 630 x 250 mm |
| Worktable size: | 540 × 440 mm (14 mm T-slots) |
| Max. spindle-to-table: | 605 mm |
| Max. spindle-to-base: | 1195 mm |
| Column diameter: | 140 mm |
| Complete with: | - Powered lifting worktable - Cooling pump - Worklight - Drill protection - Digital speed display |
| Motor power: | 1.5 kW |
| Machine (L×W×H): | 90 × 66 × 230 cm |
| Machine weight: | 500 kg |
