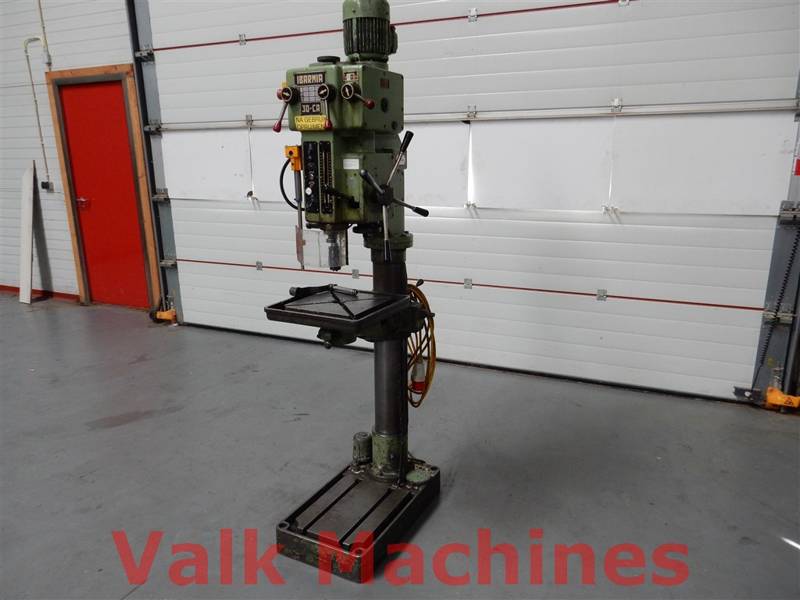

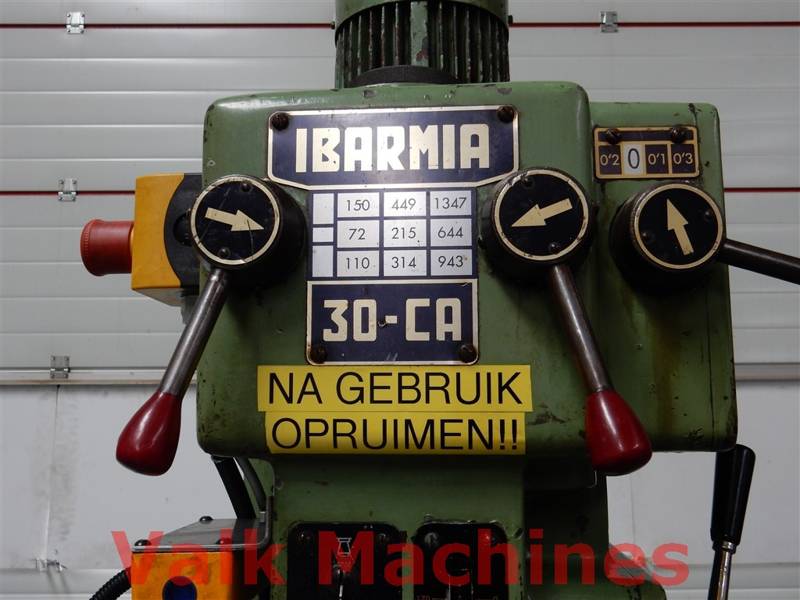

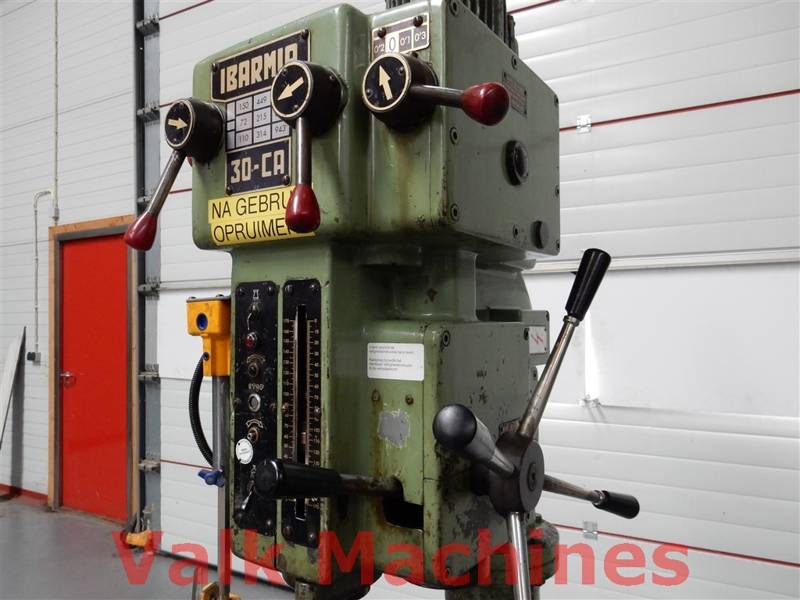

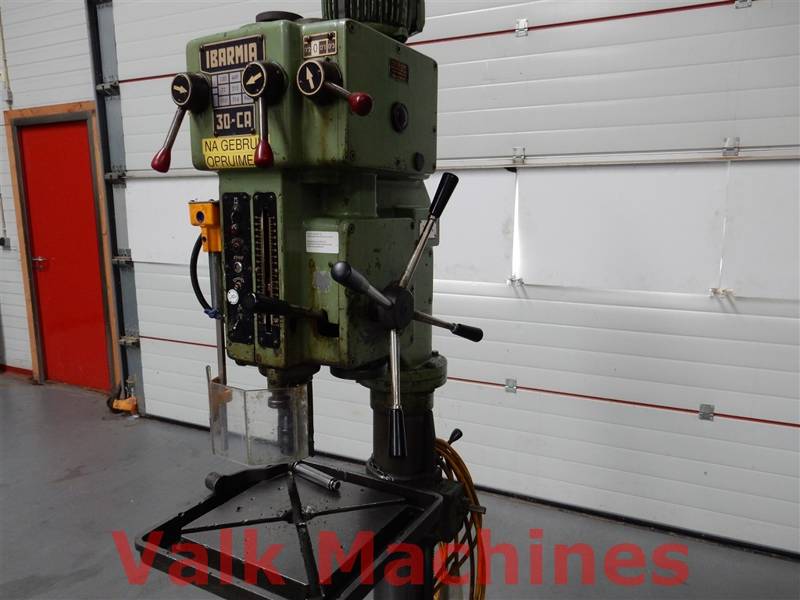

Pilar drill Ibarmia 30-CA
TECHNICAL SPECIFICATIONS
| Drilling capacity steel: | ΓΈ 30 mm |
| Drilling table size: | 310 x 310 mm |
| Spindle nose: | MK3 |
| Spindle speeds: | 72 - 943 rpm |
| Spindle stroke: | 170 mm |
| Throat: | 330 mm |
| Featured with: | - Spindle protectionhatch - Spindle feed - Gearboxed machine - Coolingunit |
| Country of origin: | Spain |
| Motor power: | 1,1 kW |
| Machine LxWxH: | 500 x 700 x 2150 mm |
| Machine weight: | 300 kg |
Pilar drill Ibarmia 30-CA
