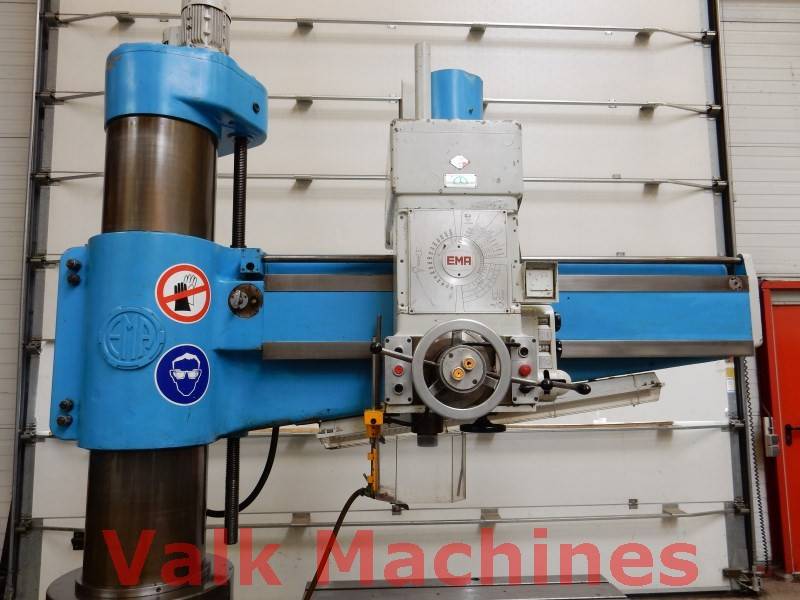

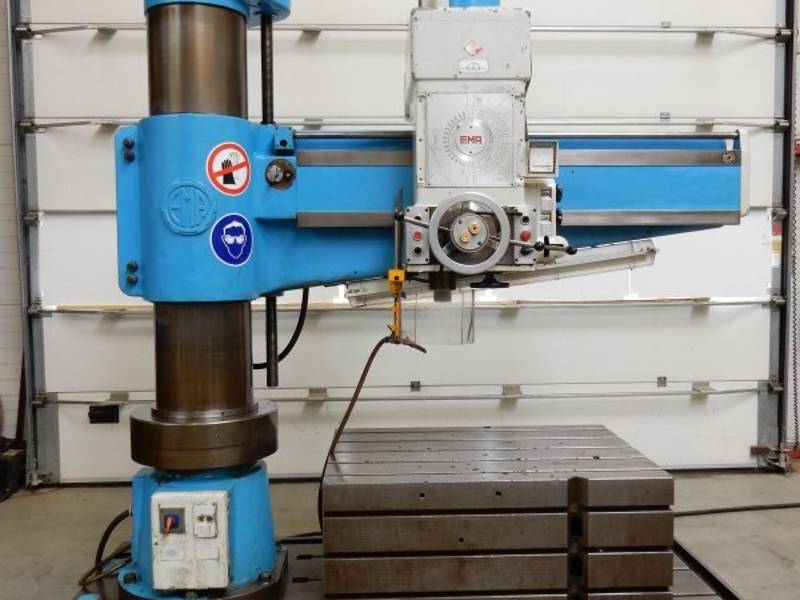

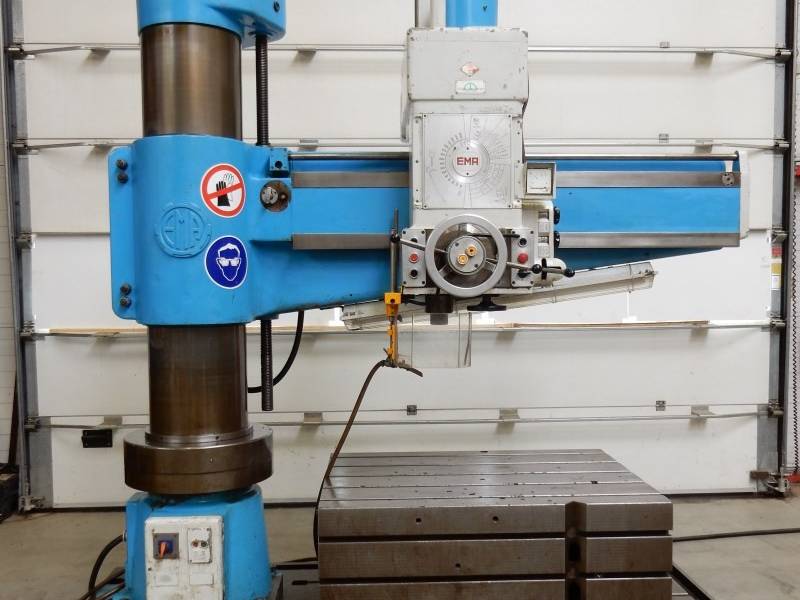

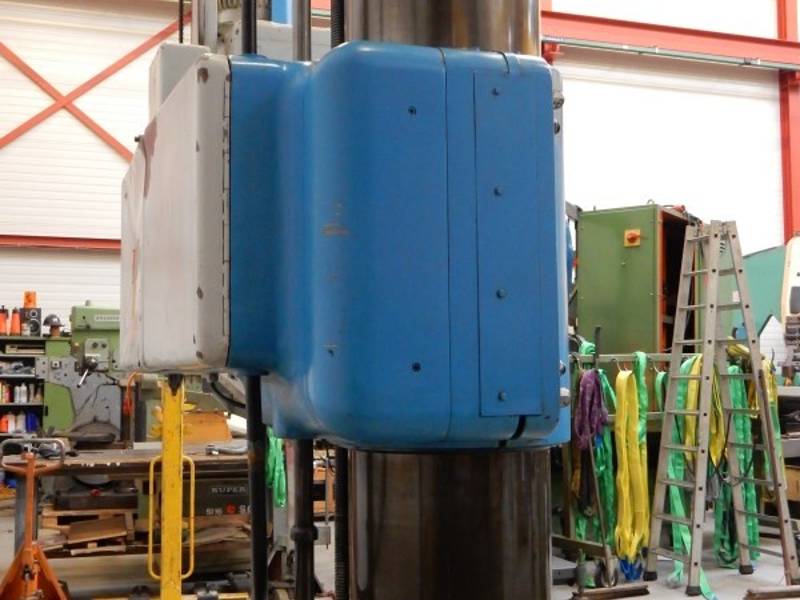

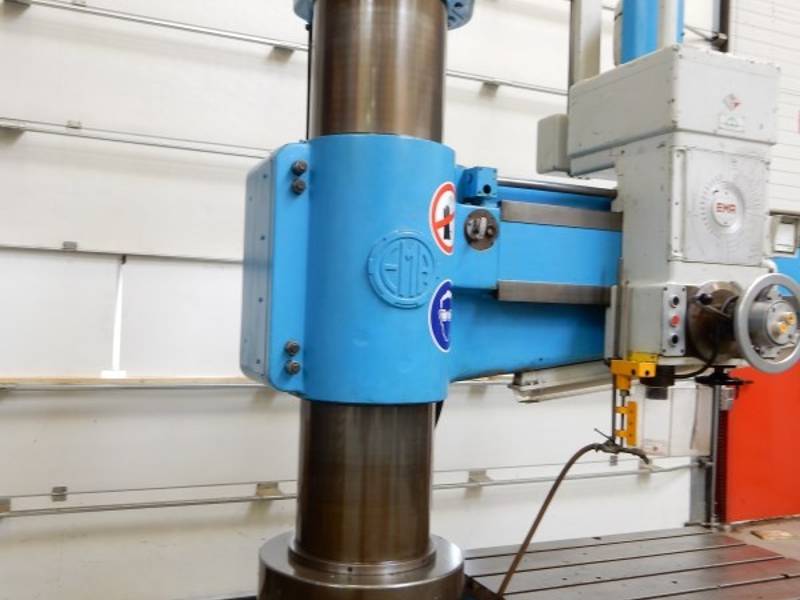

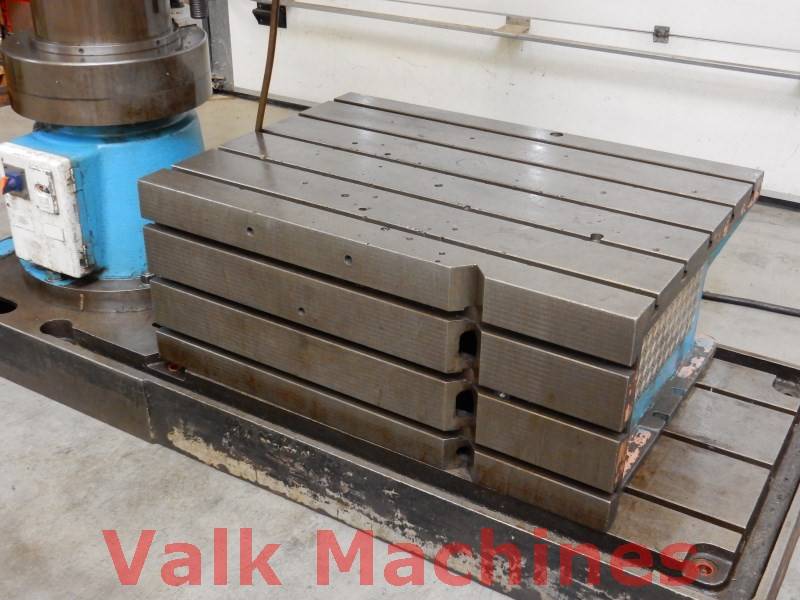

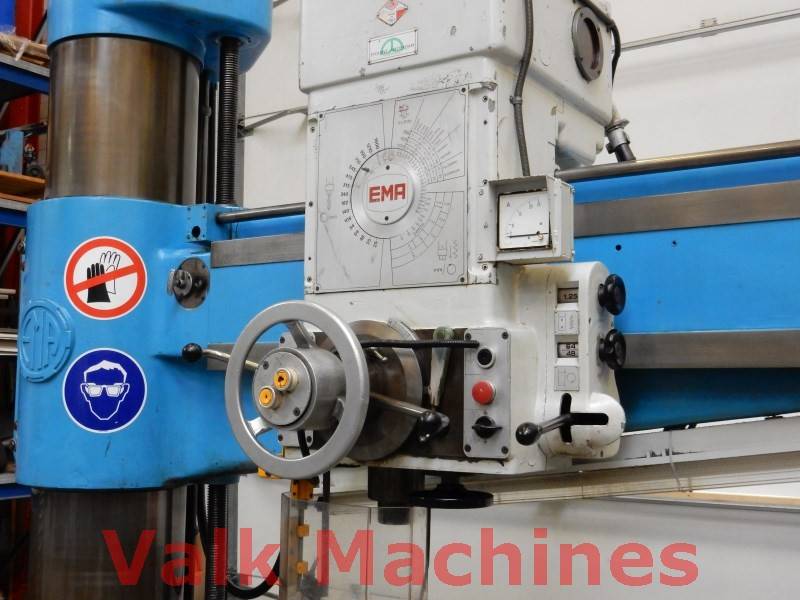

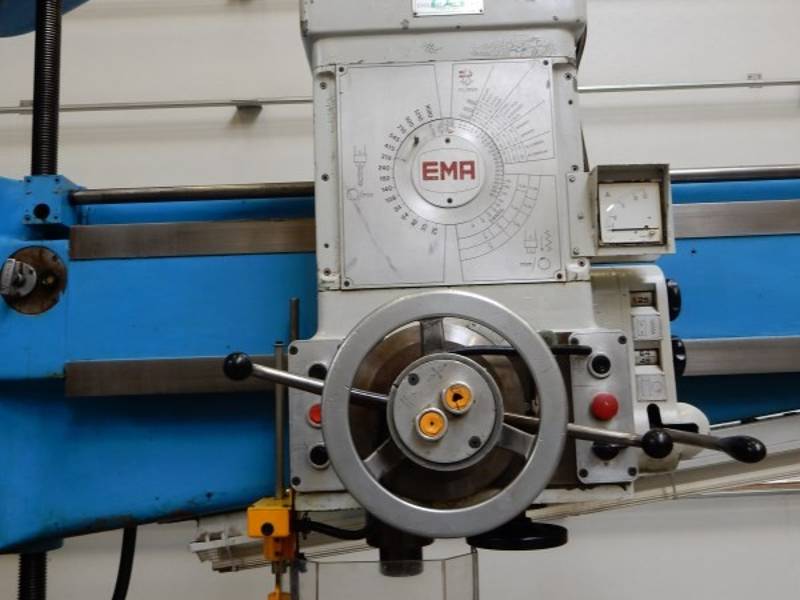

Radialdrill EMA Ø 50 mm
Radialdrill EMA
| Drilling capacity: | Ø 50 mm |
| Spindle nose: | MK5 |
| Spindle speeds: | 25 - 1.600 Rpm |
| Spindle feed: | 0,12 - 1,25 mm/rev. |
| Spindle stroke: | 400 mm |
| Horizontal throat max.: | 1.400 mm |
| Spindle -> Floorplate: | |
| Minimum: | 750 mm |
| Maximum: | 1.500 mm |
| Floorplate LxB: | 1.600 x 810 mm |
| Drilling cube LxBxH: | 1.260 x 910 x 510 mm |
| Column diameter: | 380 mm |
| Country of Manufacture: | Italy |
| Machine weight: | 5.500 kg |
| Machine LxWxH: | 2.600 x 1.000 x 3.000 mm |
Radialdrill EMA Ø 50 mm
