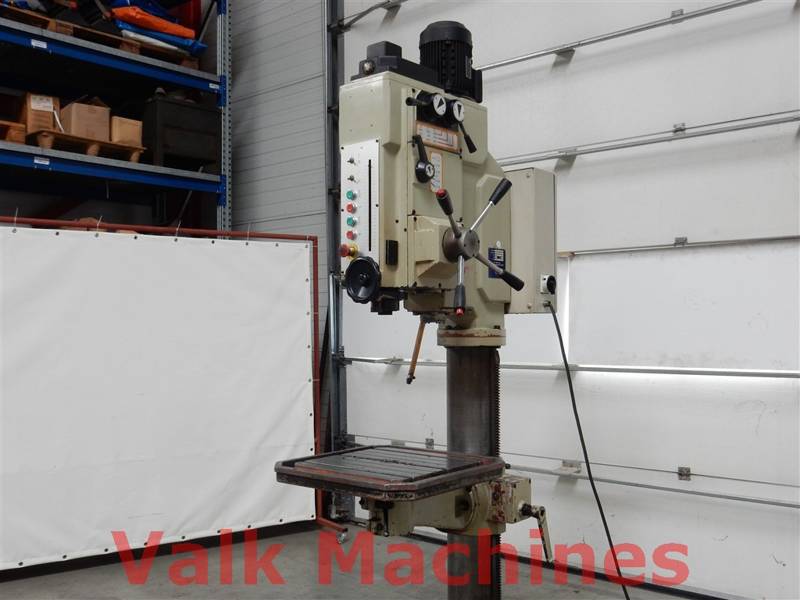

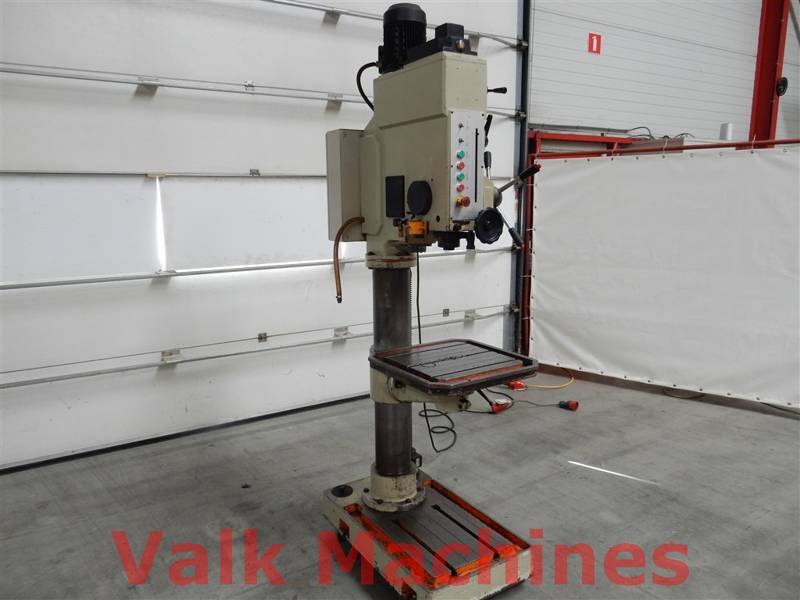

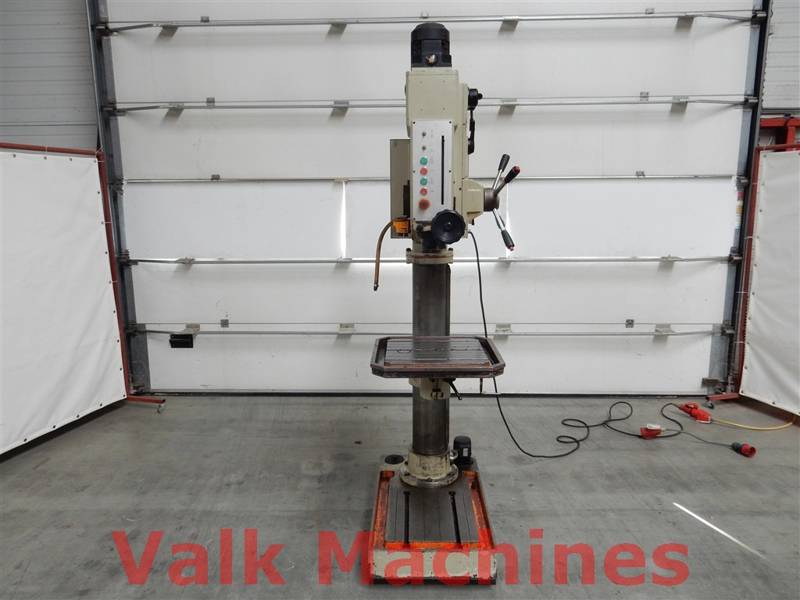

Pilar drill Erlo ø40 mm
TECHNICAL SPECIFICATIONS
| Drilling capacity: | Ø 40 mm |
| Spindle nose: | MK-4 |

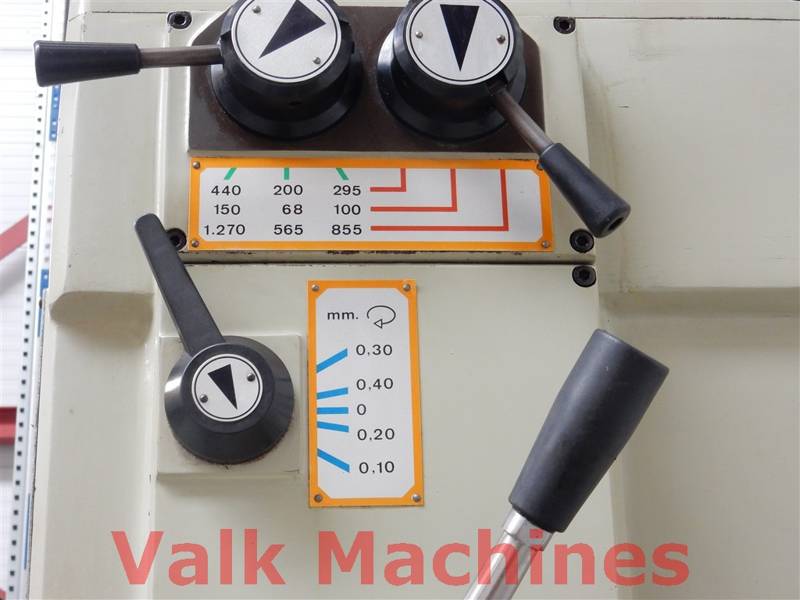

| Spindle speeds: | 68 - 1.270 rpm |
| Spindle feeds: | 0,10 - 0,20 - 0,30 - 0,40 mm/rev. |
| Spindle stroke: | 200 mm |

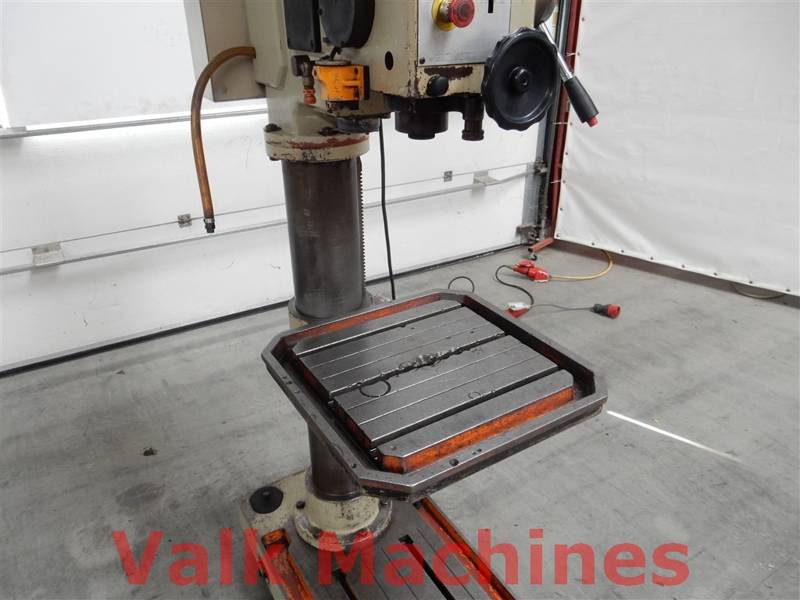

| Table size: | 550 x 550 mm |
| Throat: | 360 mm |
| Country of origin: | Spain |
| Motor power: | 2,2 kW |
| Machine LxWxH: | 900 x 600 x 2.350 cm |
| Machine weight: | 650 kg |
Pilar drill Erlo ø40 mm
