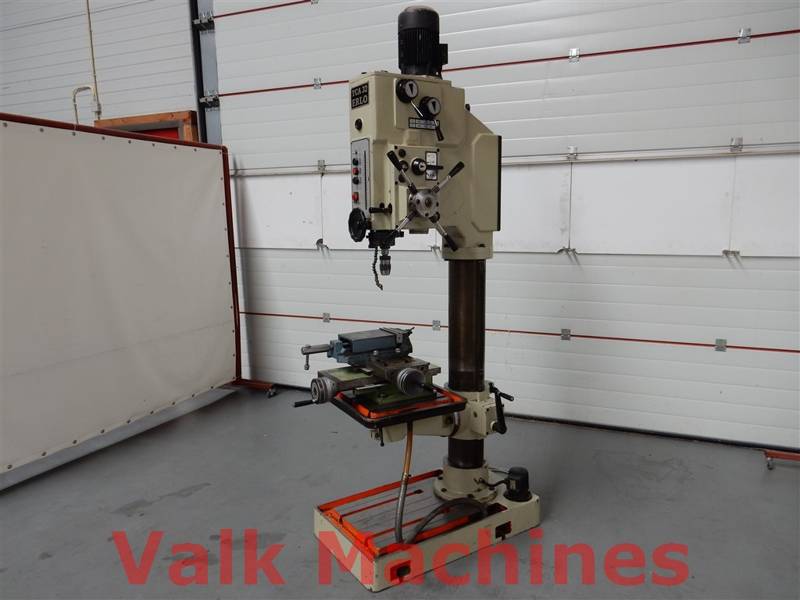

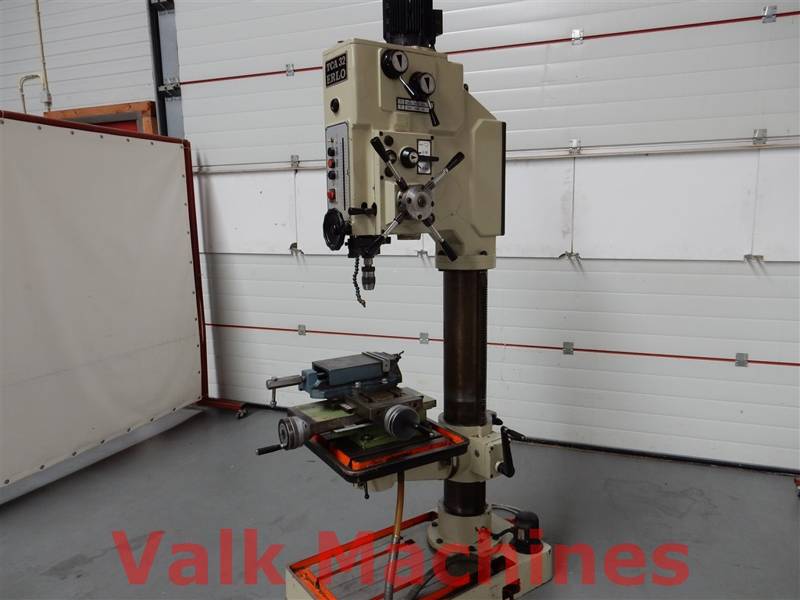

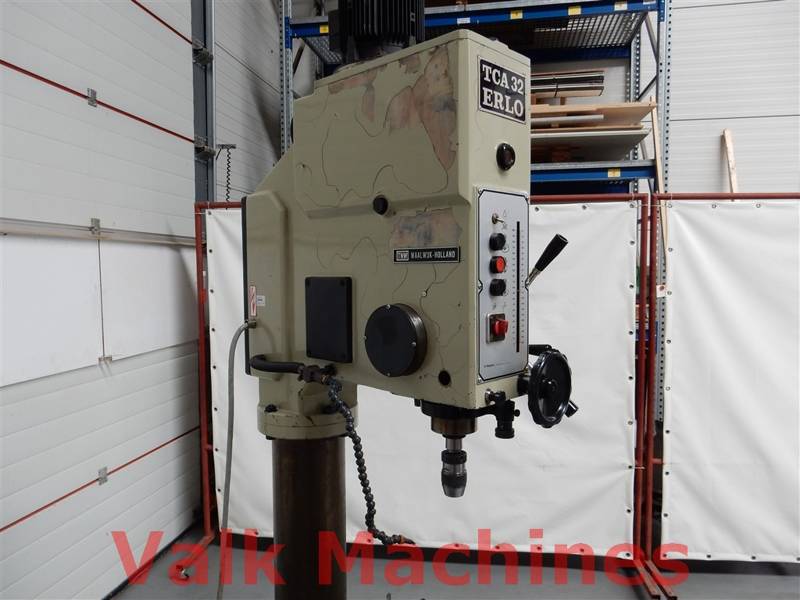

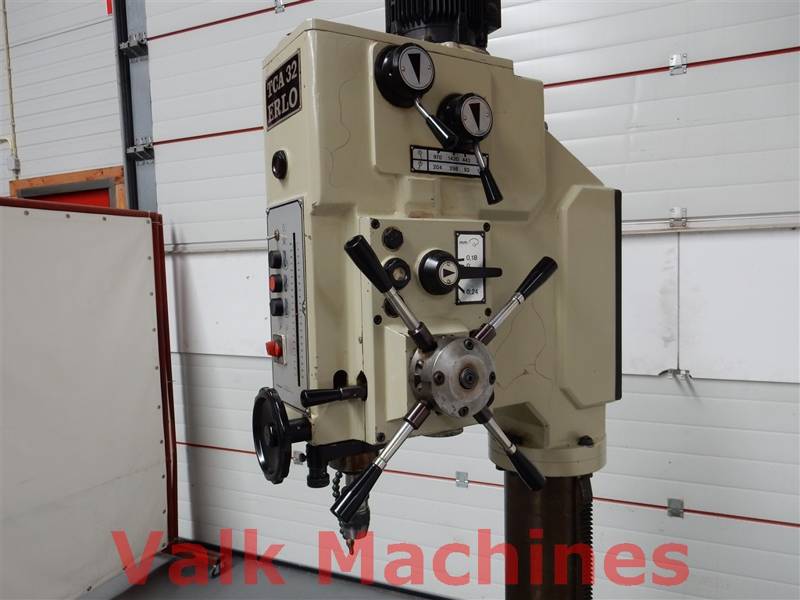

Drillingmachine Erlo TCA32
TECHNICAL SPECIFICATIONS
| Drilling capacity: | Ø 32 mm |
| Spindle nose: | MK4 |
| Spindle speeds: | 93 - 1420 rpm |
| Spindle feed: | 0,10 - 0,18 - 0.24 mm/rev. |
| Spindle stroke: | 200 mm |
| Table size: | 370 x 450 mm |
| Throat: | 360 mm |

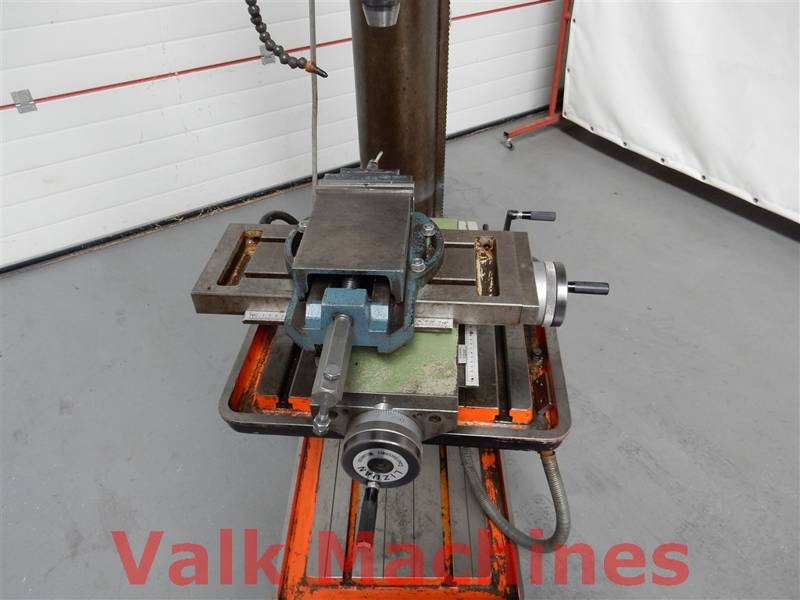

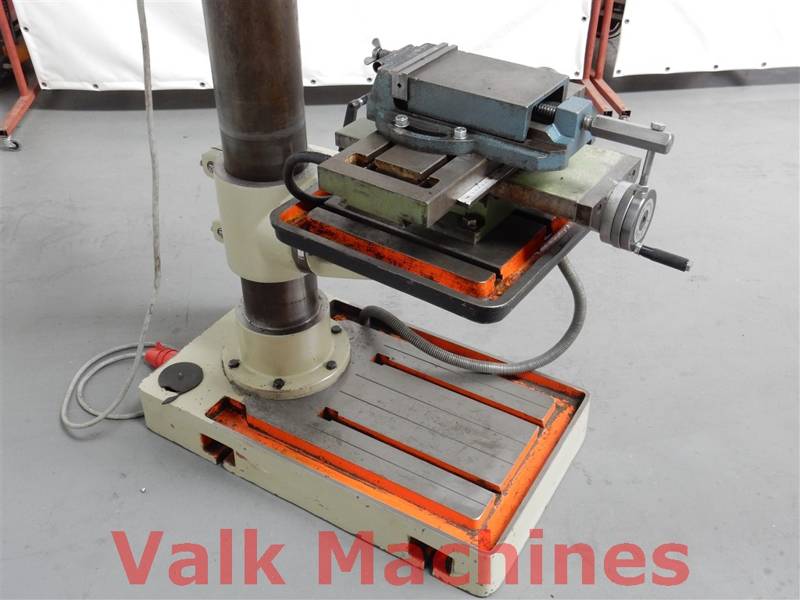

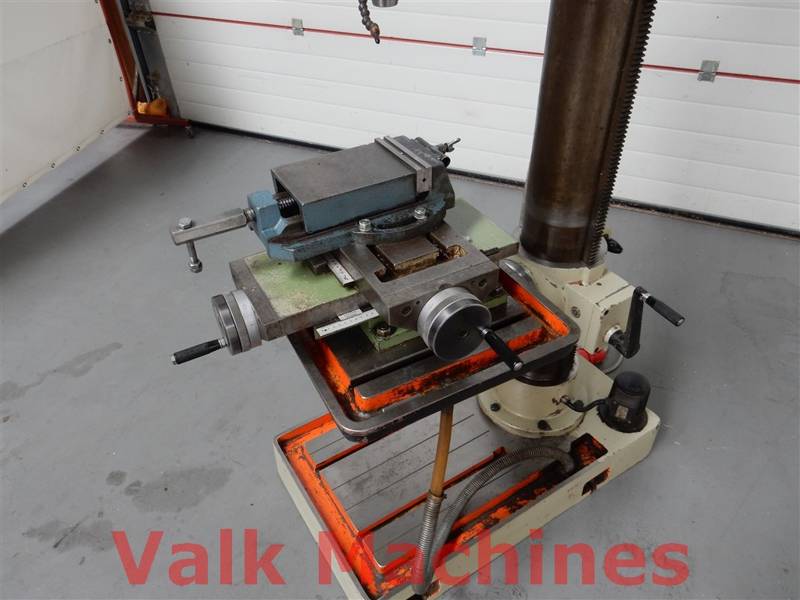

| Featured with: | - Cross table - Materialclamp - Coolingpump |
| Country of origin: | Spain |
| Machine LxWxH: | 900 x 600 x 2350 mm |
| Machine weight: | 700 kg |
Drillingmachine Erlo TCA32
