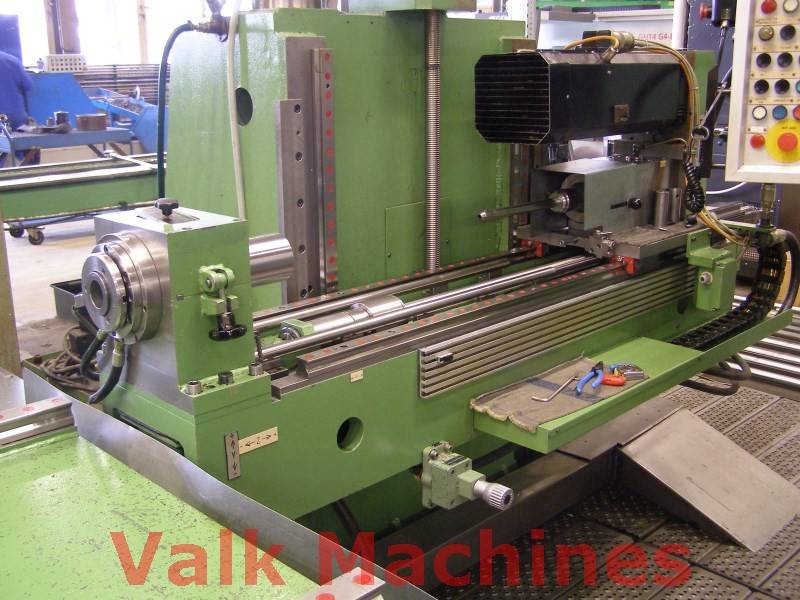

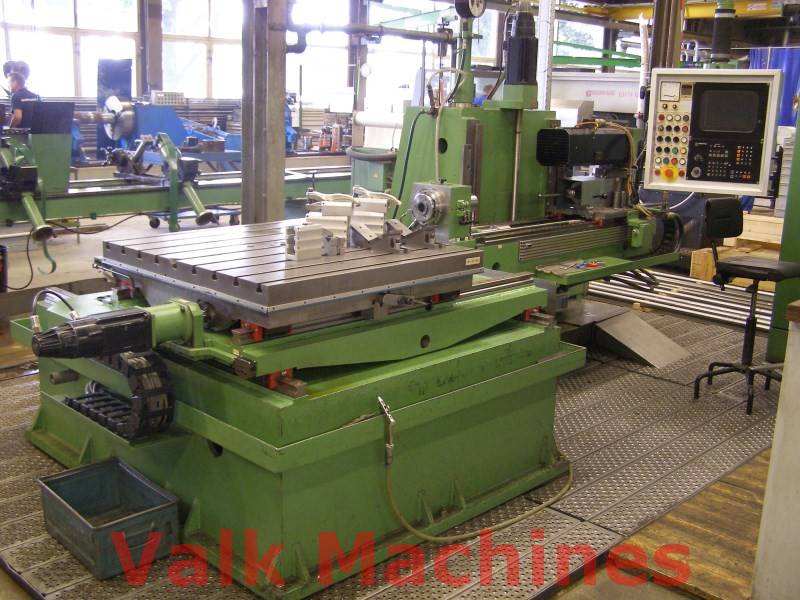

Deephole drill Loch Ø15 x 1.000 mm
ELB Deep hole drillingmachine Loch
| Drilling capacity: | Ø 2 - Ø 15 mm |
| Drilling depth: | 1.000 mm |

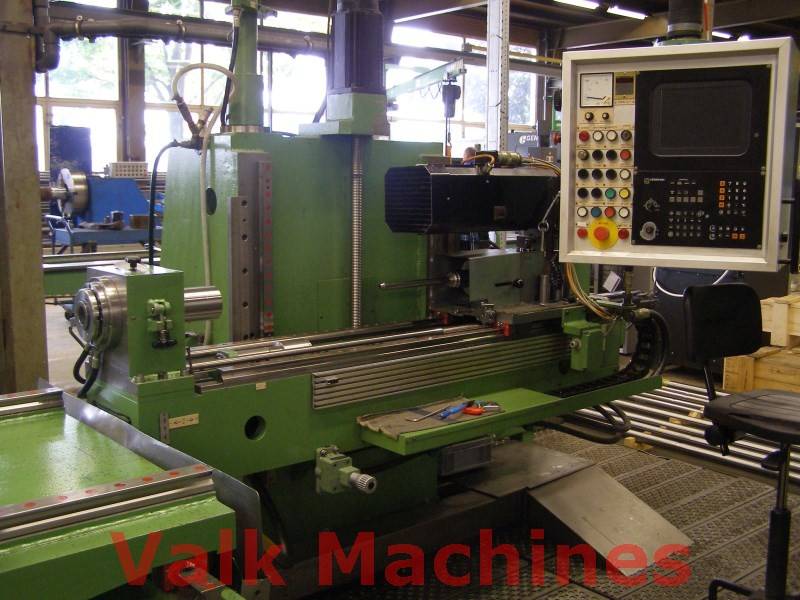

| CNC controll: | Heidenhain TNC 151 |
| X-axis travel: | 500 mm |
| Y-axis travel: | 700 mm |
| Z-asix travel: | 1.000 mm |
| W-axis travel: | 500 mm |
| Spindel speeds: | 250 - 4.000 Rpm |
| Spindel feed: | 0 - 1.000 Rpm |

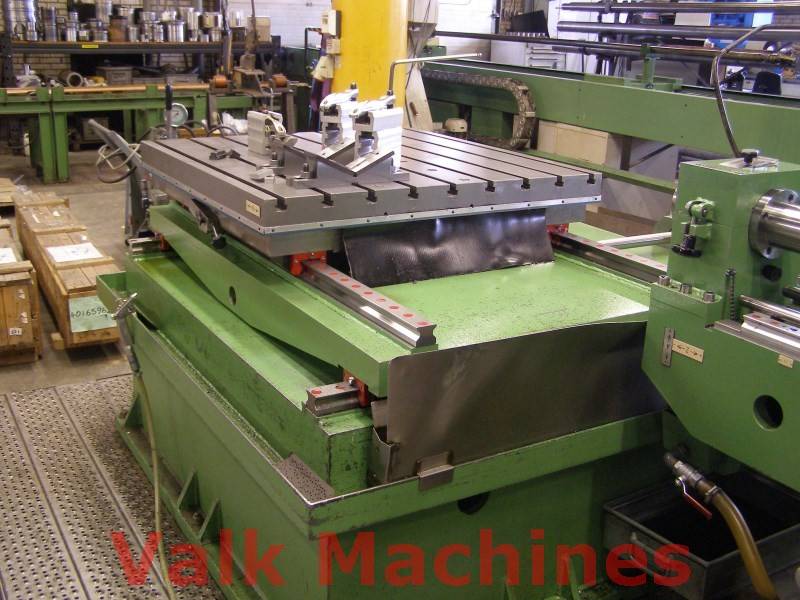

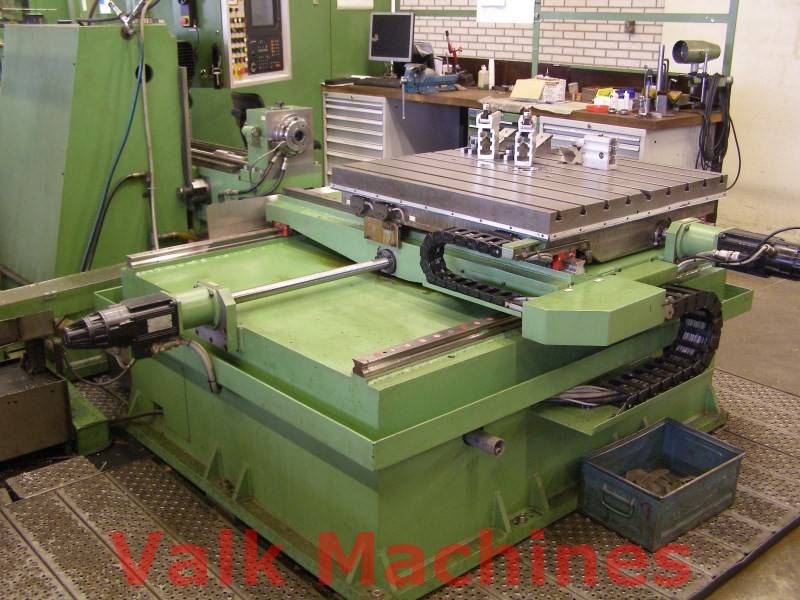

| Table size: | 1.000 x 1.000 mm |
| Table capacity: | 2.000 kg |

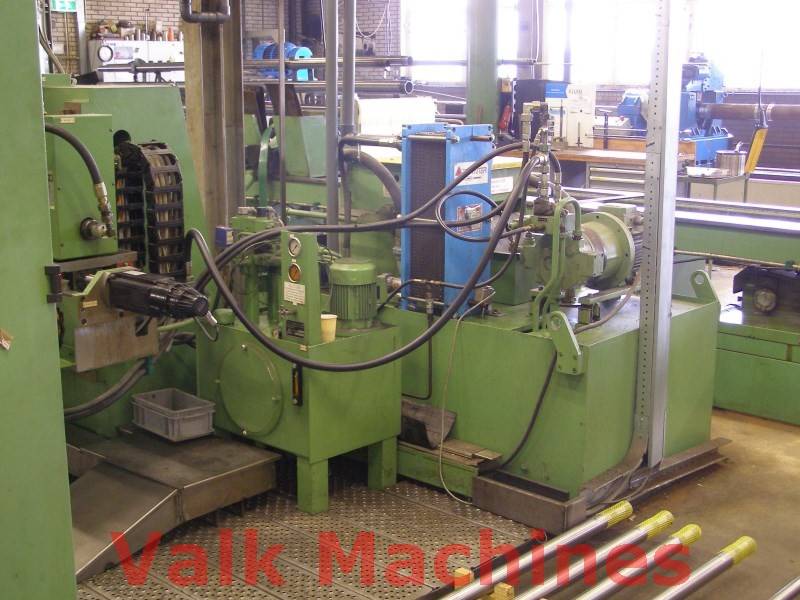

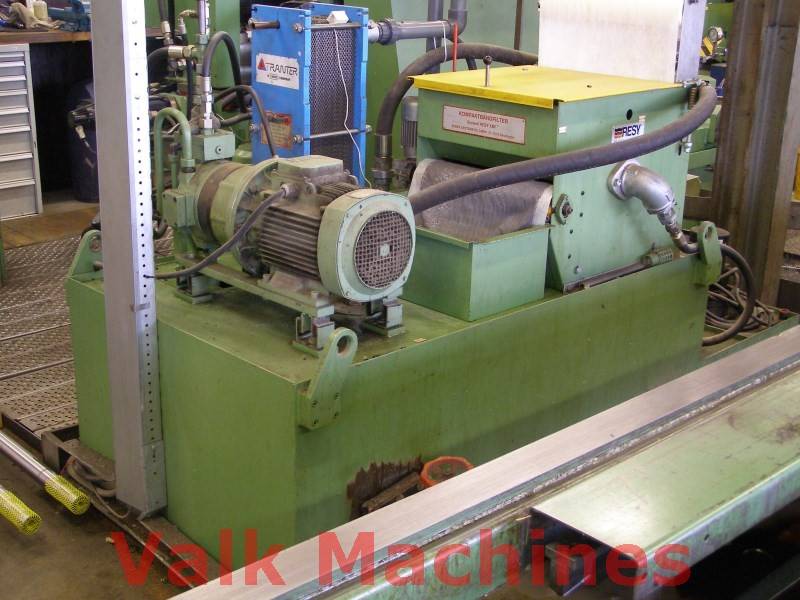

| Featured with: | - Resy KBF band filter |
| - Chipconveyor | |
| - Documentation | |
| Country of origin: | Germany |
| Engine power: | 20 kW |
| Machine weight: | 6 Ton |
| Machine LxWxH: | 5.000 x 2.500 x 2.500 mm |
Deephole drill Loch Ø15 x 1.000 mm
