BTA Deep Hole Drill Gildemeister Knoll Ø250 mm
TECHNICAL SPECIFICATIONS
| Drilling capacity: | ø 22 - ø 250 mm |
| Drilling depth: | 0 - 2.200 mm |

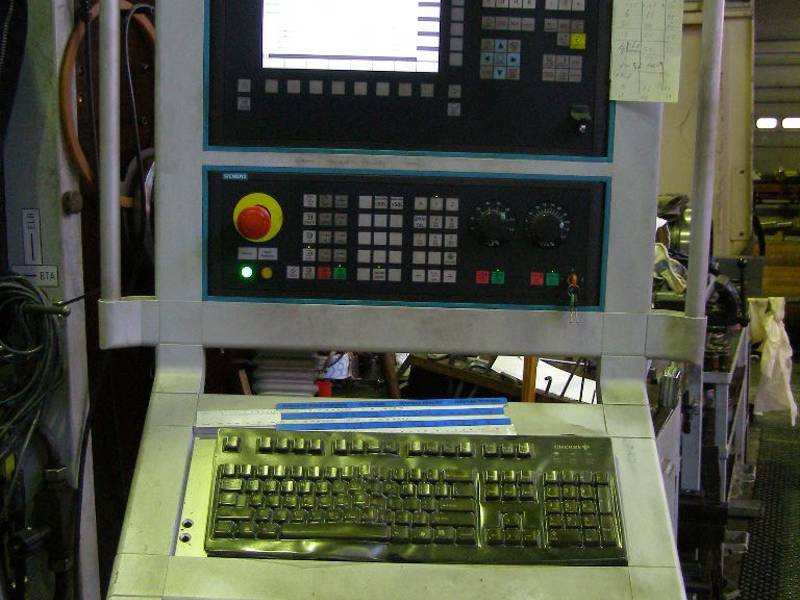

| CNC controll: | Siemens 840D (New in 2012) |
| X-axis travel: | 2.000 mm |
| Y-axis travel: | 2.200 mm |
| Z-axis travel: | 500 mm |
| Spindel speeds: | 0 - 800 Rpm |
| Spindel feeds: | 0 - 4.000 mm/min. |
| Table size: | 1.500 x 2.000 mm |
| Table load: | 10.000 kg |
| Featured with: | - Drillingbars, sealingheads, drillingbushes, etc - 2 ELB steadies/saddles - Documentation - New control in 2012 |
| Country of origin: | Germany |
| Machine weight: | 10 Ton |
| Machine LxWxH: | 6.000 x 5.000 x 1.600 mm |
BTA Deep Hole Drill Gildemeister Knoll Ø250 mm
| Manufacturer: | Gildemeister Knoll |
| Type: | M03-2000B-GT |
| Year: | 1980/2012 |
PRICE REQUEST
