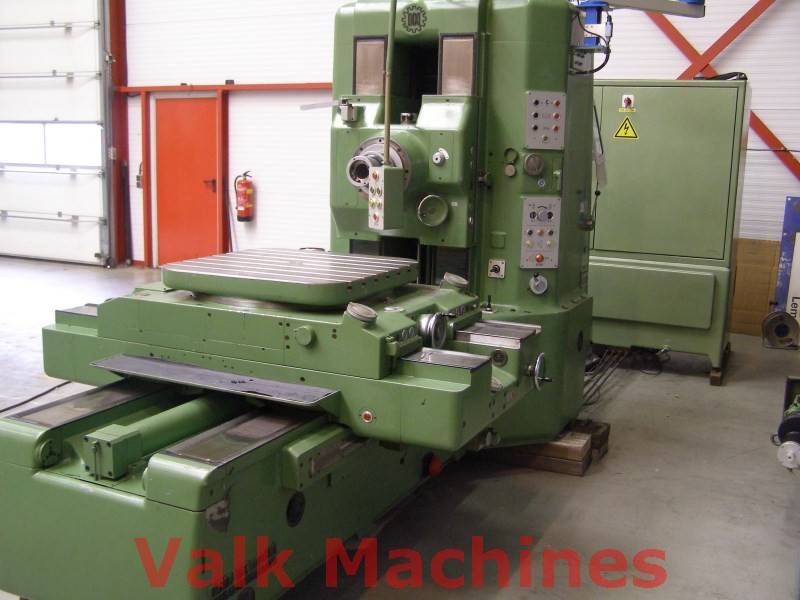

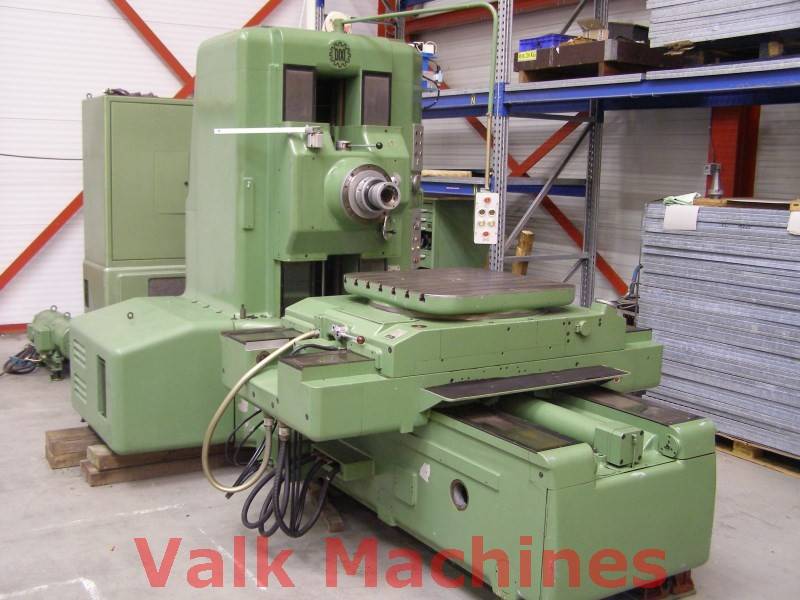

Boring Mill Dixi 3SO
Horizontal Boring Mill Dixi
| Spindle diameter: | 95 mm |
| Spindle nose: | ISO50 |
| Spindle speeds: | 14 - 1.575 Rpm |
| X-axis travel: | 570 mm |
| Y-axis travel: | 590 mm |
| Z-axis travel: | 750 mm |
| Table size: | 810 x 810 mm |

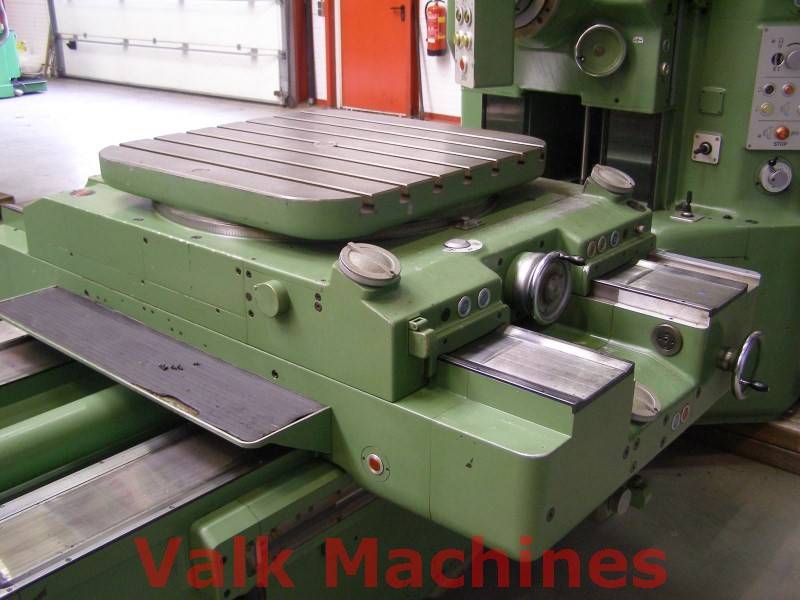

| Turning table: | 360° |
| Feed on axis: | 6 - 2.500 mm/min. |
| Optical read out: | Wild Heerbrugg |
| Featured with: | - Variomatic speed adjustment |
| - Hydraulic clamping of all axis | |
| - Manuals and drawings | |
| Country of origin: | Switzerland |
| Motor power: | 14 kW |
| Machine weight: | 9.000 kg |
Boring Mill Dixi 3SO
