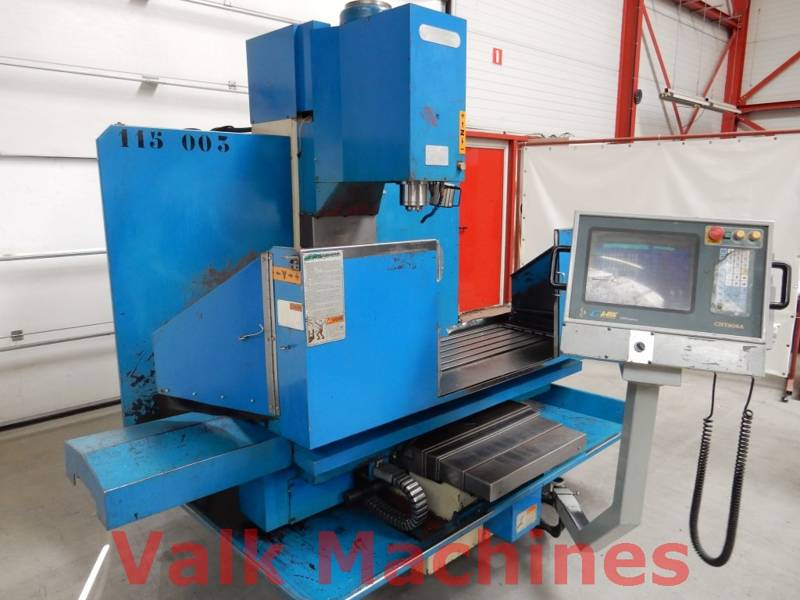

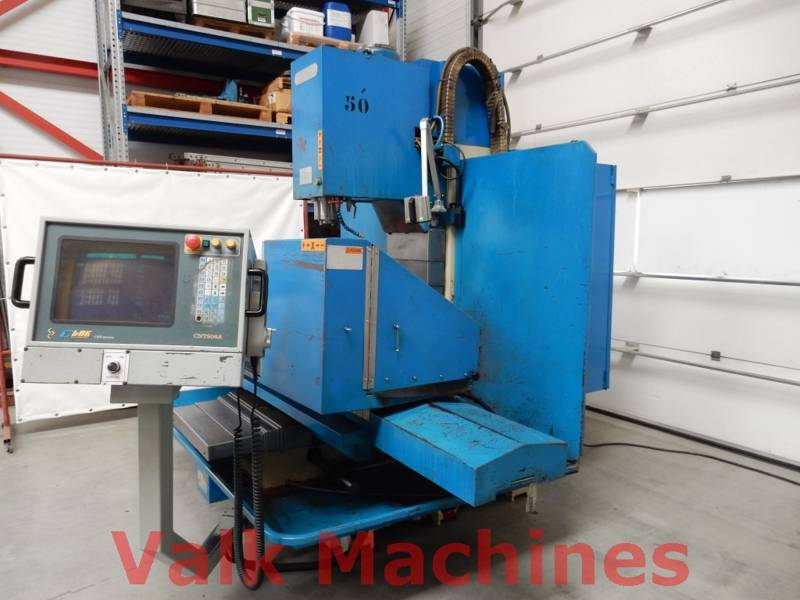

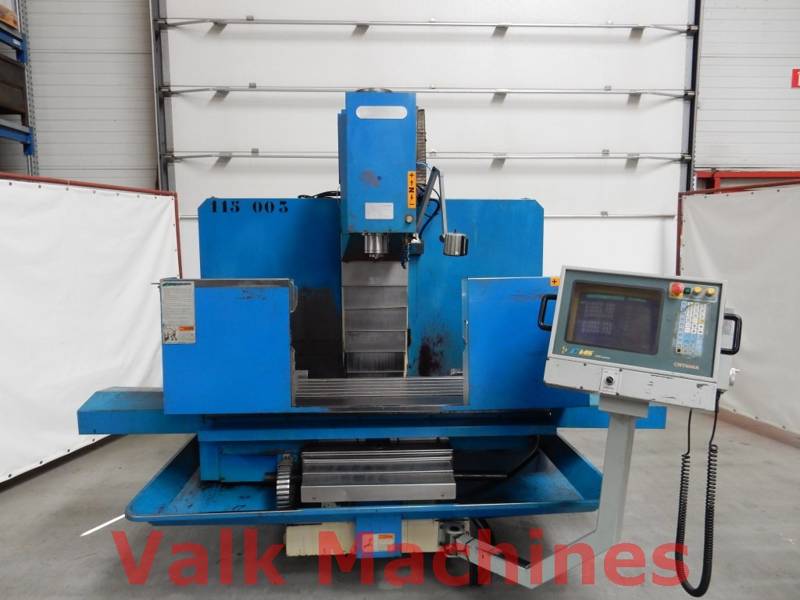

CNC Millingmachine CinCh-Mill 25

TECHNICAL SPECIFICATIONS

CNC Millingmachine CinCh-Mill
X-axis travel 1.300 mm
Y-axis travel 500 mm
Z-axis travel 600 mm

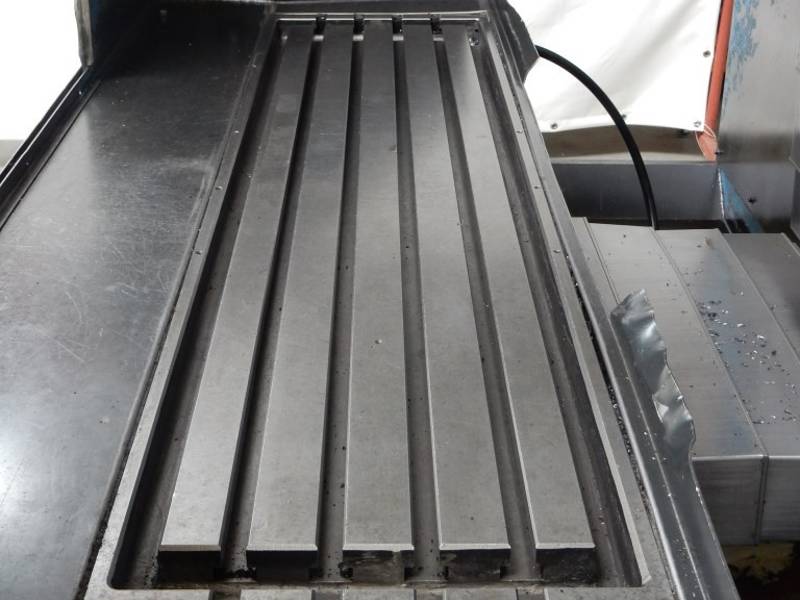

Table surface 1.700 X 406 mm

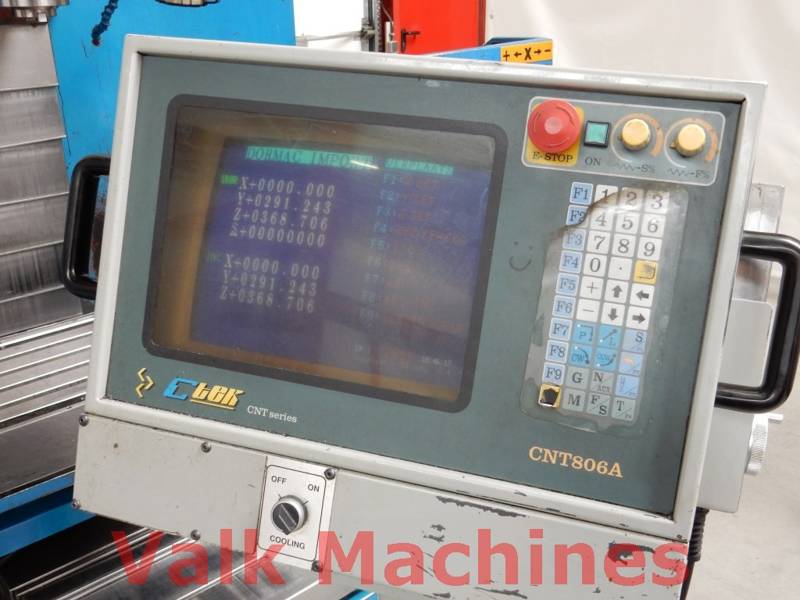

CNC controller NUM CNT806A

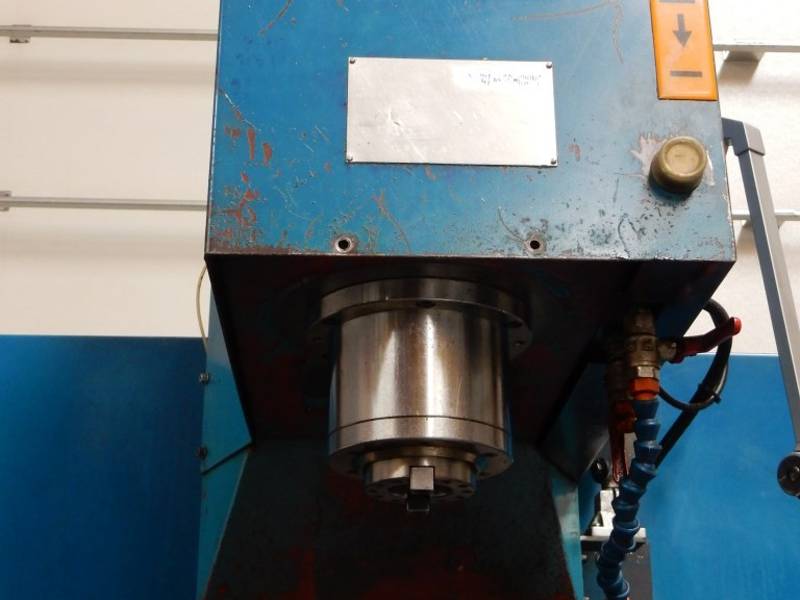

Spindle taper ISO 40
Spindle speed 1.285 Rpm
Rapid feed XY-axis 7.000 mm /min.
Rapid feed Z-axis 5.000 mm /min.
Country of origin Taiwan
Spindle power 10 HP
Machine weight 3.800 kg
Machine LxWxH 3.300 x 2.300 x 2350 mm

CNC Millingmachine CinCh-Mill 25

Manufacturer:CinCH-Mill
Type:25
Year:12/1999
