Gantry Milling Torresmill 5-axis

TECHNICAL SPECIFICATIONS

X-axis:	13.000 mm
Y-axis:	4.500 mm
Z-axis:	1.000 mm
Distance between columns:	6.500 mm

C-axis:	190º
A-axis:	110º
Positioning speed XYZ:	15.000 mm/min.
Positioning speed AC:	10 tpm

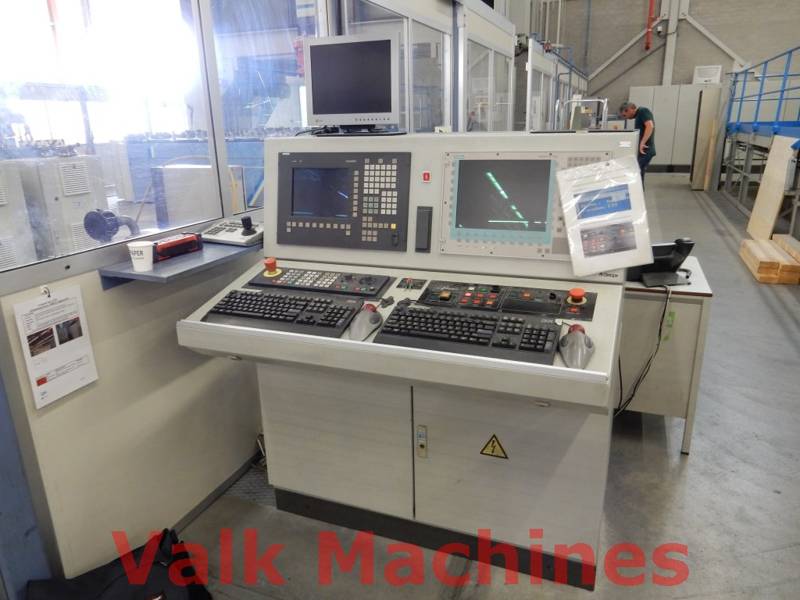

CNC Controller:	Siemens 840D

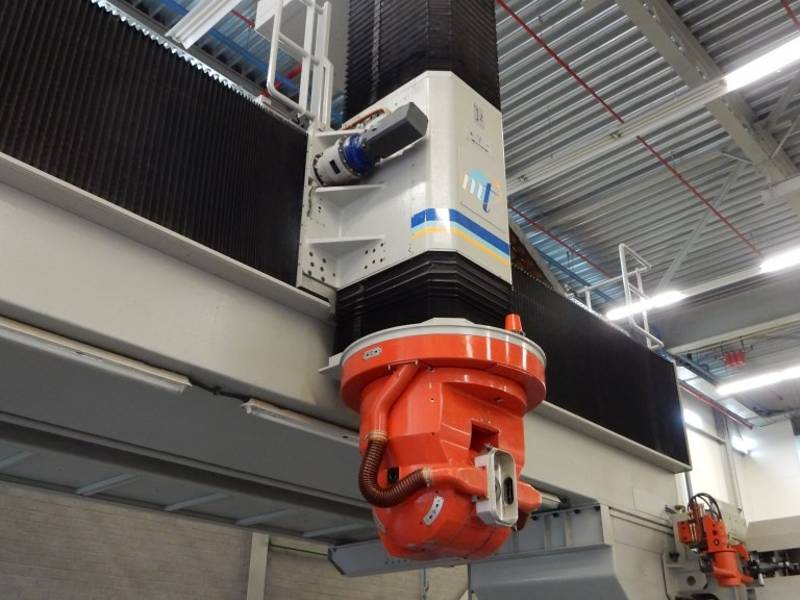

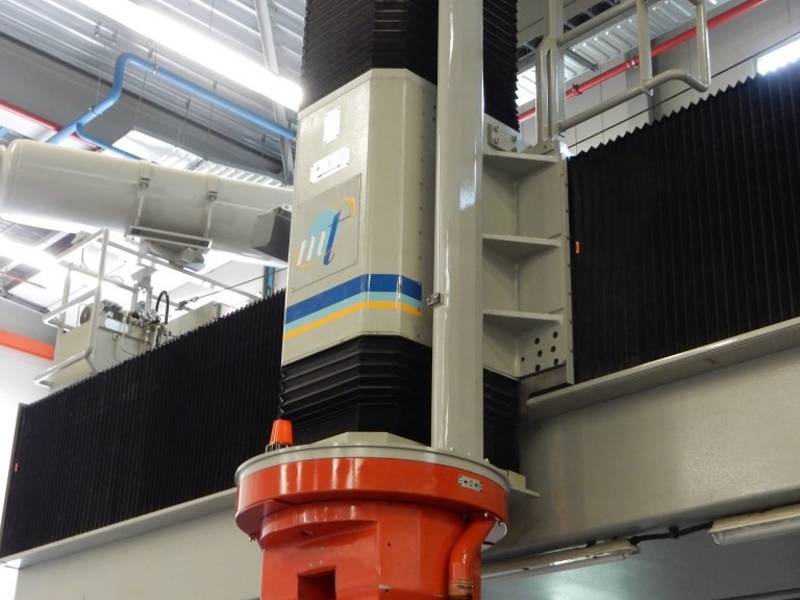

Spindle nose:	HSK A63
Spindle speed:	30.000 rpm
Spindle power:	20 kW

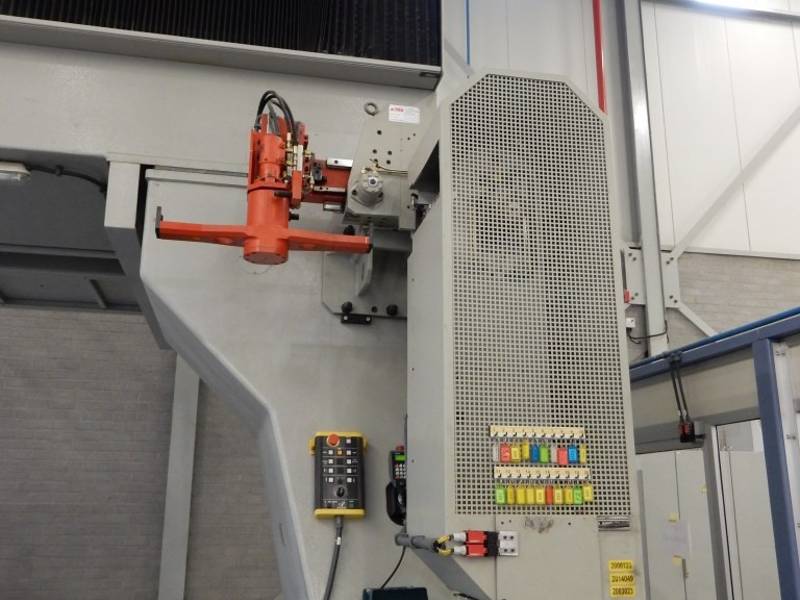

Toolchanger:	20 Pockets

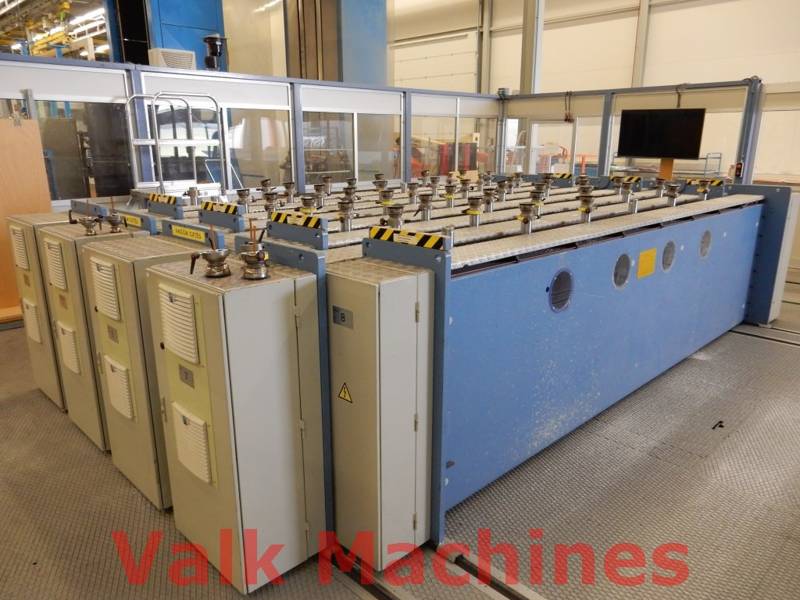

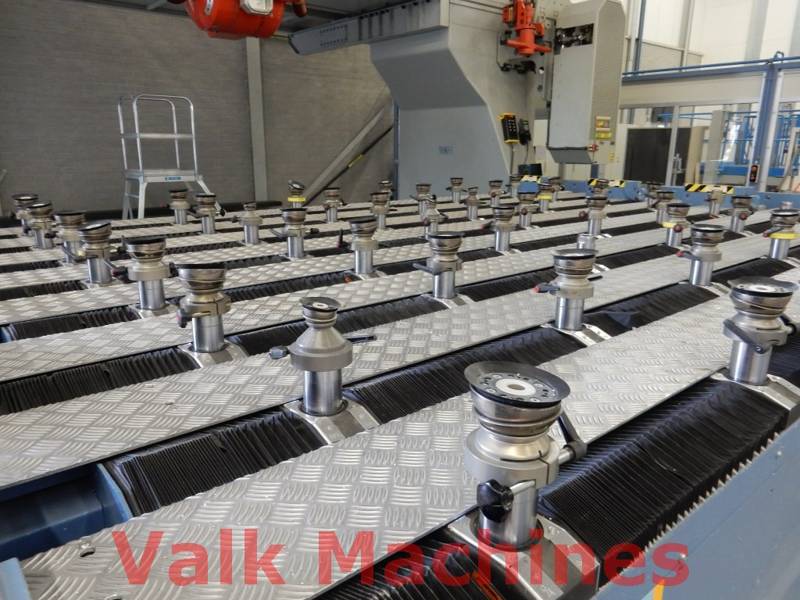

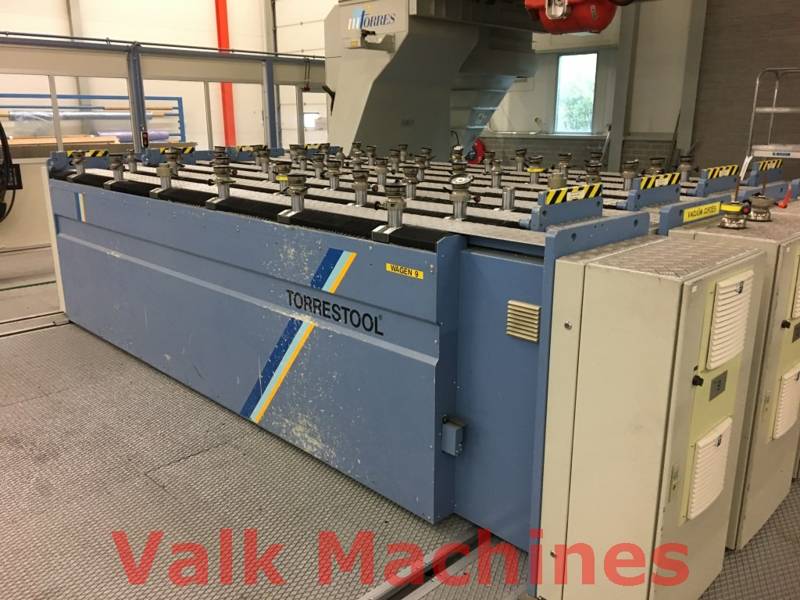

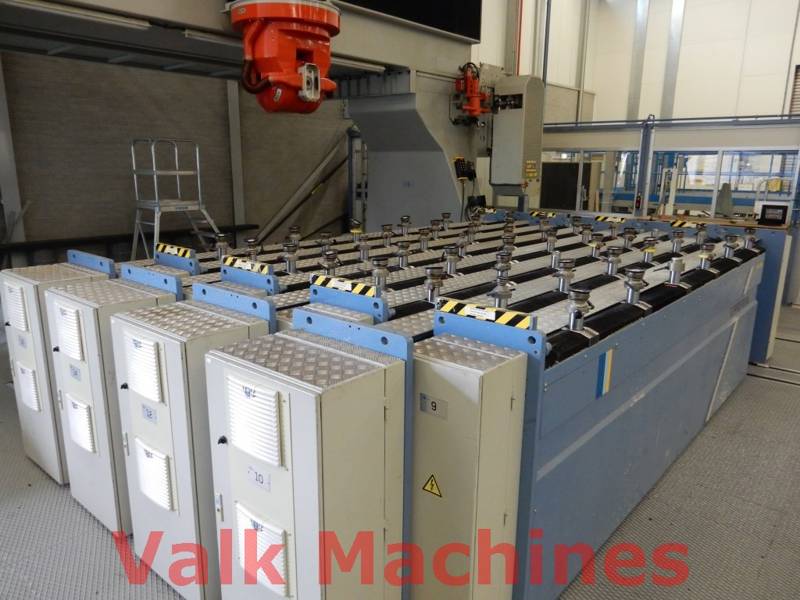

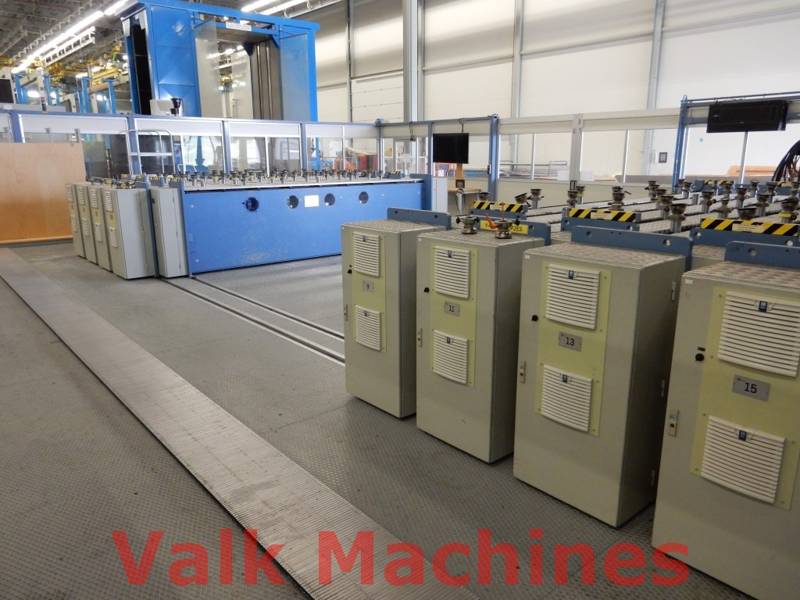

Torrestool tables:	16x
X-axis:	11.500 mm
Y-axis:	3.500 mm
Z-axis:	750 mm

Country of origin:	Spain
Machine size LxWxH:	19.000 x 11.000 x 6770 mm
Machine weight:	70.000 kg

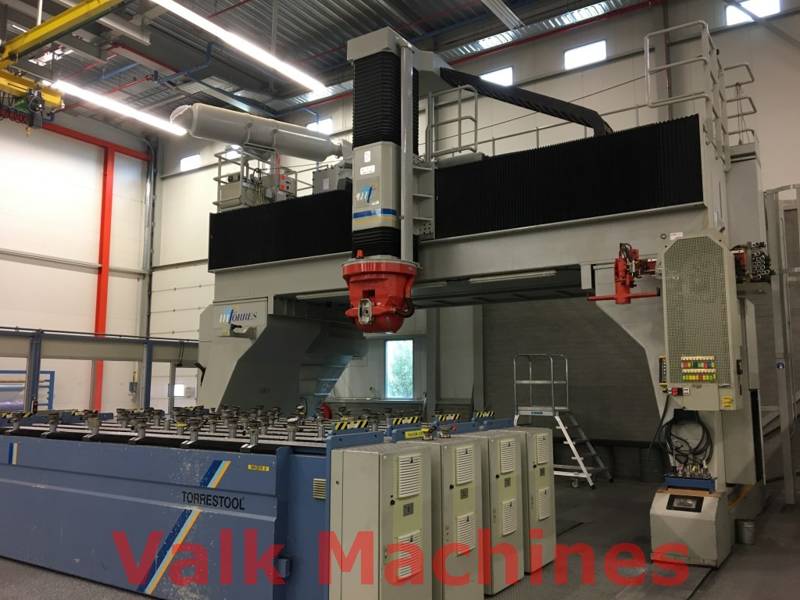

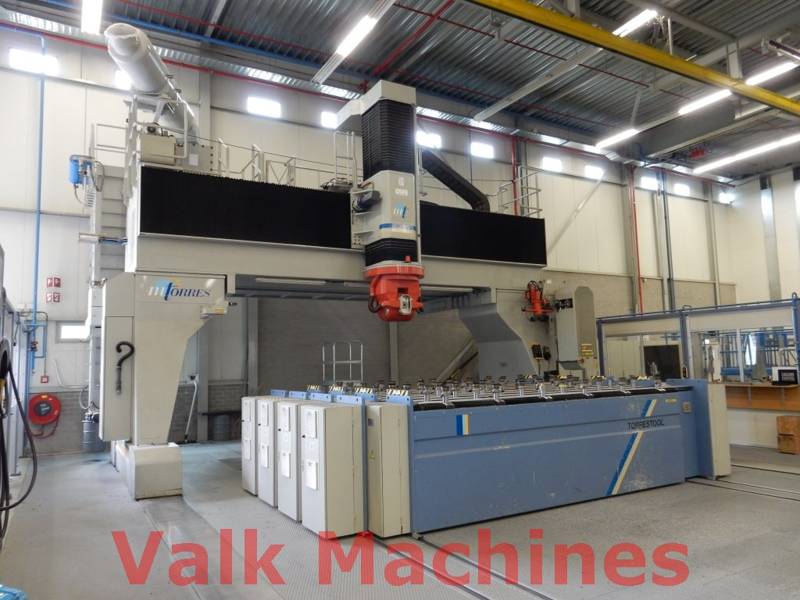

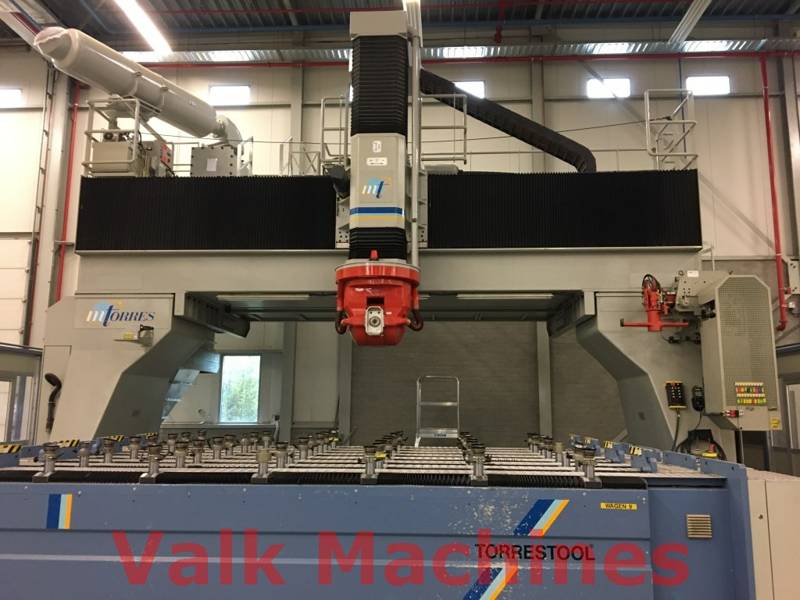

	The Torresmill Gantry is a 5-axis CNC milling and drilling machine, specially designed to work on aeronautical materials (Composite, Aluminum, Titanium, Steel, ...). The Torresmill gantry is perfectly combined with the Torrestool universal clamping device, guaranteeing flexibility and process time.
