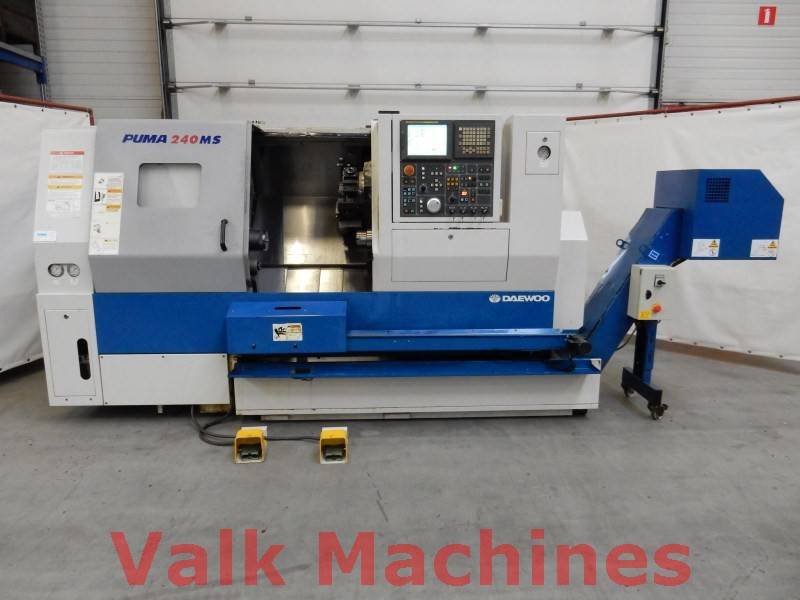

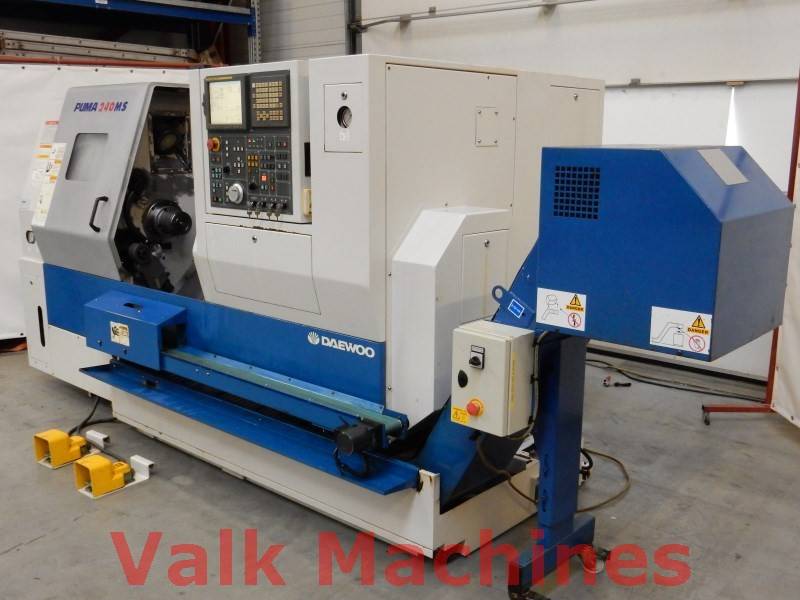

CNC lathe Daewoo Puma 240MSB
CNC lathe Daewoo with sub-spindle
| Turning diameter: | 550 mm over bed |
| 300 mm over slide | |
| Distance between spindles: | 513 mm |
| Spindle bore: | Ø 65 mm |

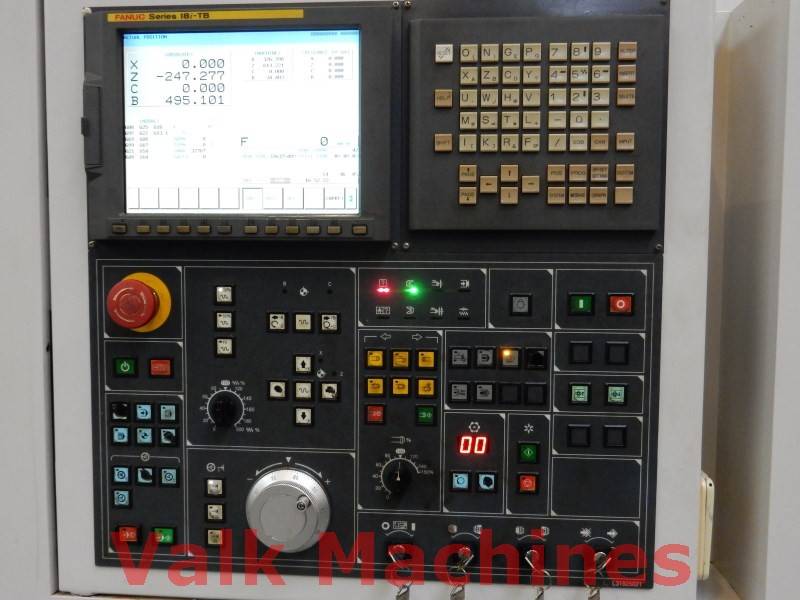

| CNC Controller: | Fanuc Series 18i-TB |
| X-axis travel: | 205 mm |
| Z-axis travel: | 580 mm |
| B-axis travel: | 580 mm |
| Main spindle | |
| Diameter: | 76 mm |
| Speeds: | 4.500 rpm |
| Spindle indexing (C-axis): | min. 0.001° |

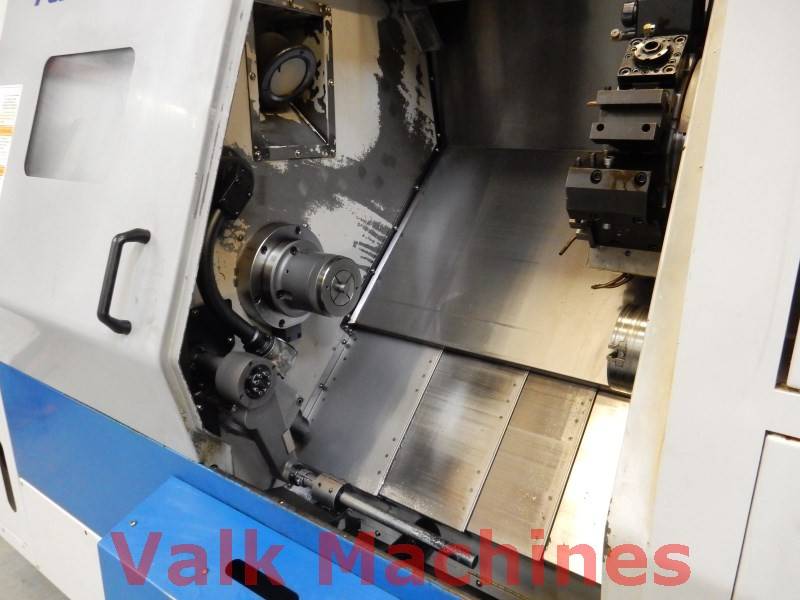

| Sub spindle | |
| Diameter: | 45 mm |
| Speeds: | 6.000 rpm |
| Spindle indexing (C-axis): | min. 0.001° |

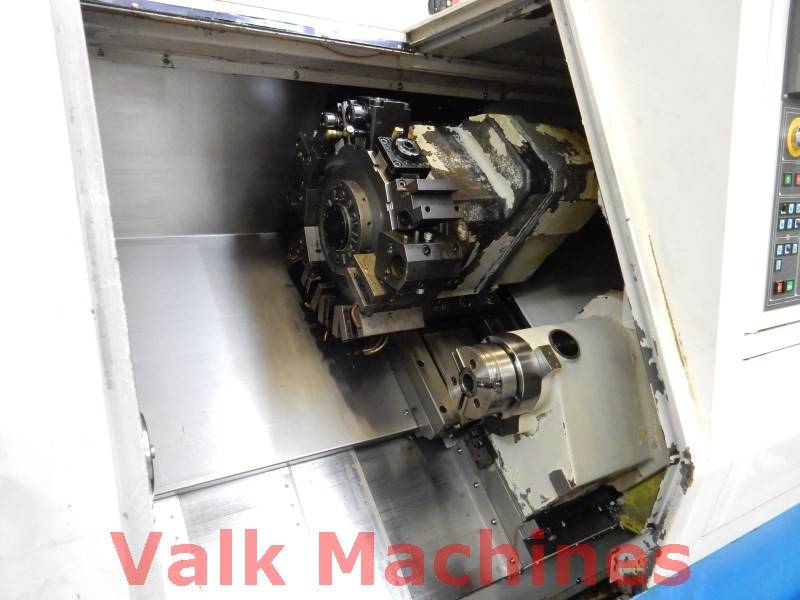

| Turret | |
| Tools: | 12 x live tooling |
| Indexing: | 0,15 sec. |
| Speed: | 5.000 |
| Featured with: | - Coolingsystem |
| - Chip conveyor | |
| - Tooling | |
| - User manuals | |
| Country of origin: | Korea |
| Machine LxWxH: | 3300 x 1600 x 1800 mm |
| Machine weight: | 4.500 kg |
CNC lathe Daewoo Puma 240MSB
