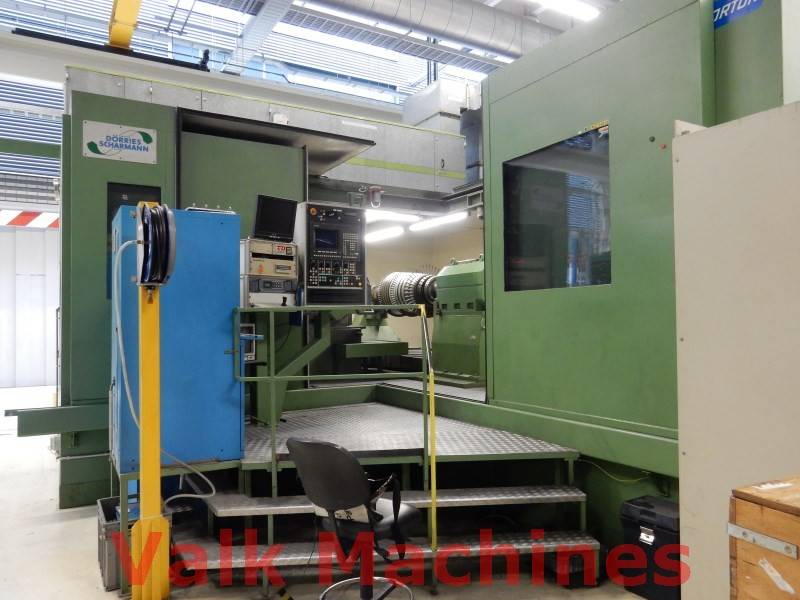

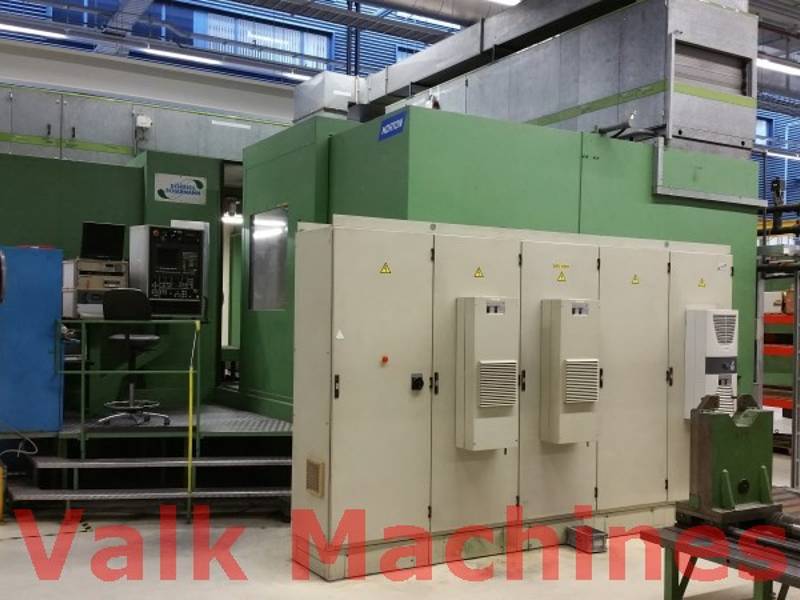

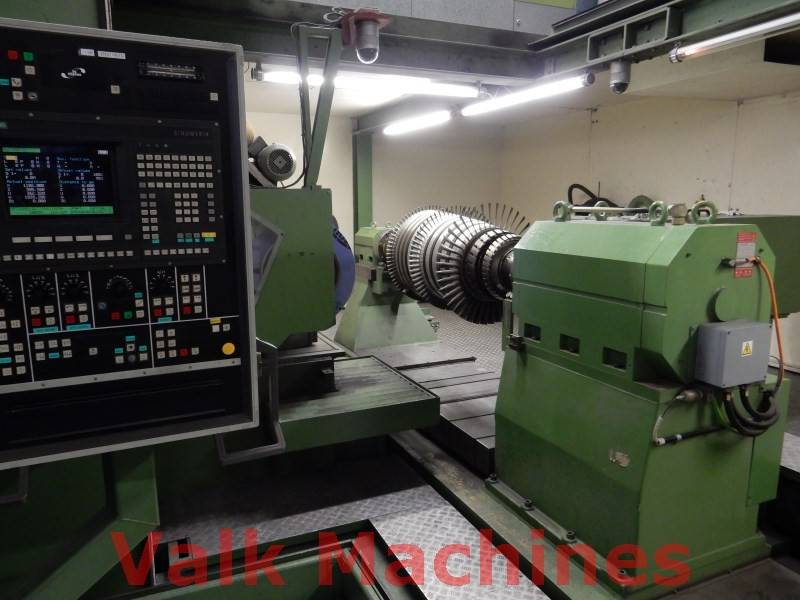

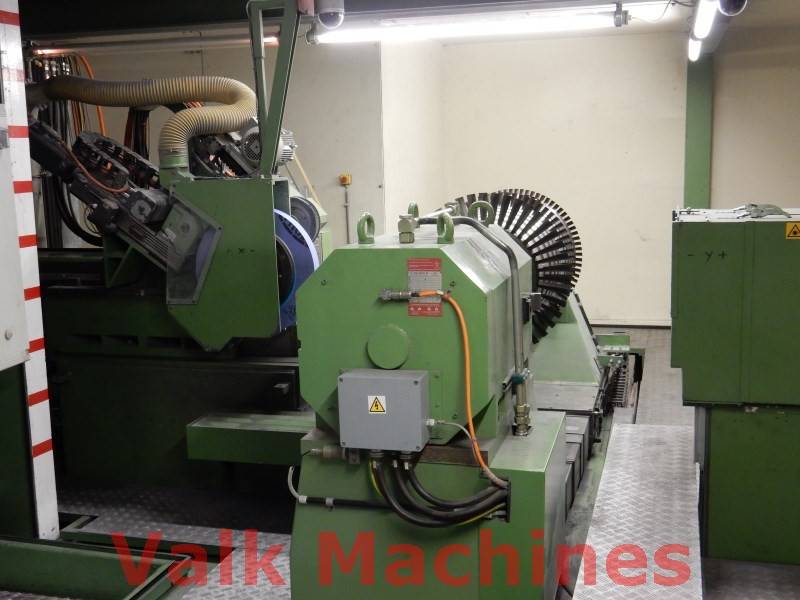

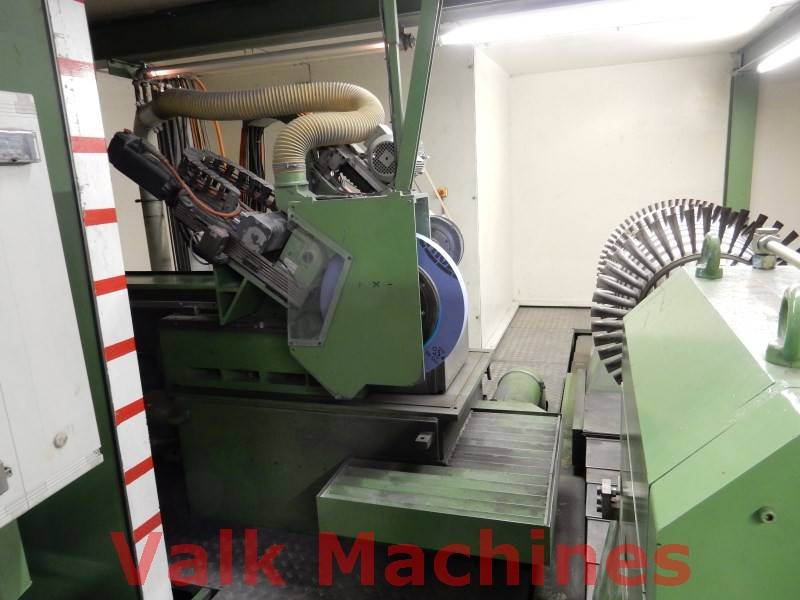

CNC HSG Grinder Dörries Scharmann

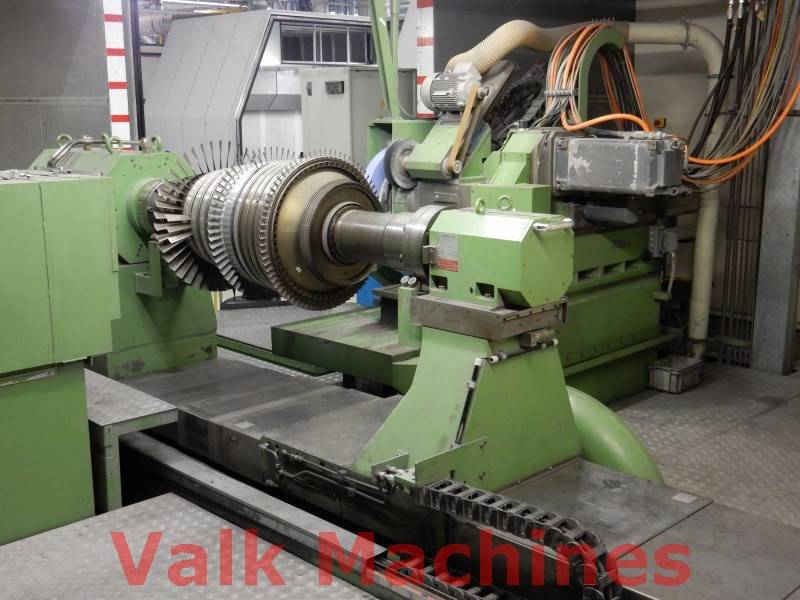

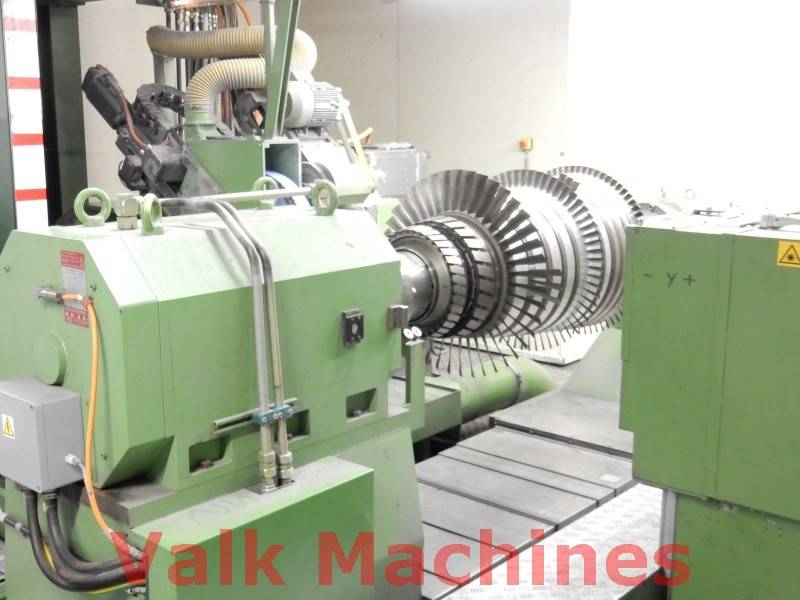

CNC High Speed Tip Blade Grinder Dörries Scharmann
6-axis controlled

Grinding diameter: Ø 1.500 mm
Grinding length:  100 - 2.000 mm

X-axis travel: 2.000 mm
Z-axis travel: 650 mm
B-axis travel: +20º / -20º (Swifel grinding wheel)
U-axis travel: 150 mm (Dresser)

Grinding wheel: Ø 800 mm (max)
Grinding width: 1" - 3"
Grinding wheel speed: 300 - 2.000 Rpm
Grinding wheel stroke: 650 mm
Feed grinding stroke: 0,01 - 5.000 mm/min.
Grinding wheel power: 30 kW

Workpiece weight max: 1.000 kg
Workpiece spindle speed: 100 - 6.000 Rpm
Stroke of table: 2.000 mm
Feed table stroke 0,01 - 5.000 mm/min.

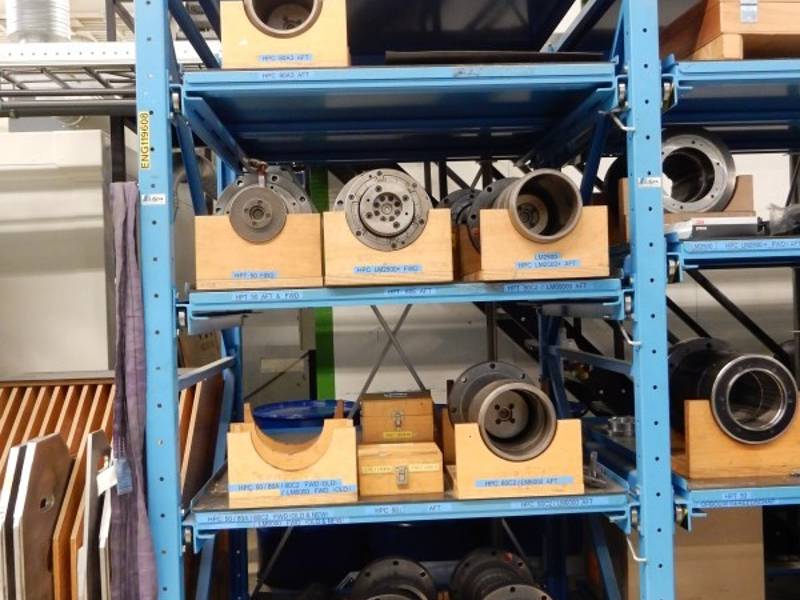

Rotor chucks for: - CFM-56-7B / CFM-3
  - CF6-50 / LM2500 / LM6000
  - CF6-80A / CF6-80C2 / CF680E1
  - LM1600

Featured with aot: - CNC laser probe (Y-axis)
  - CNC tailstock (W-axis)
  - Compressor Master Rotor

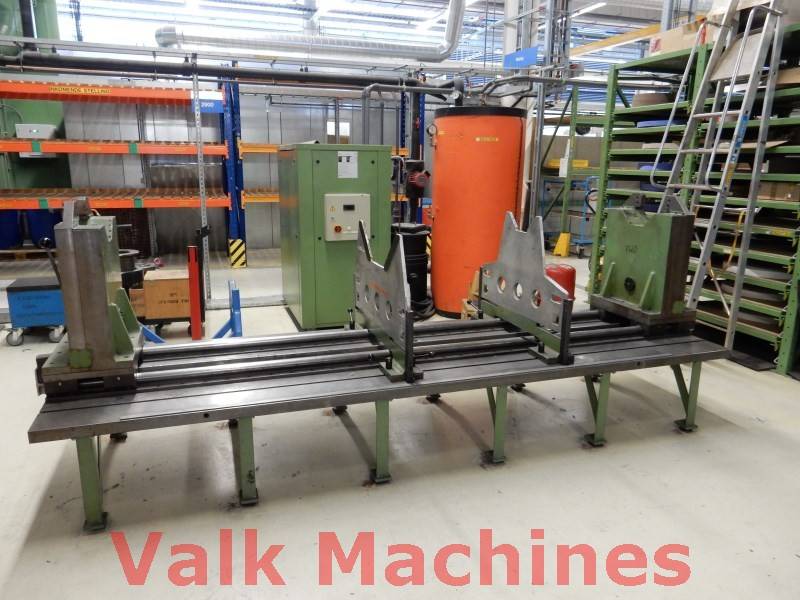

  - Rotor balancing table
  - 2x Dome camera's inside housing

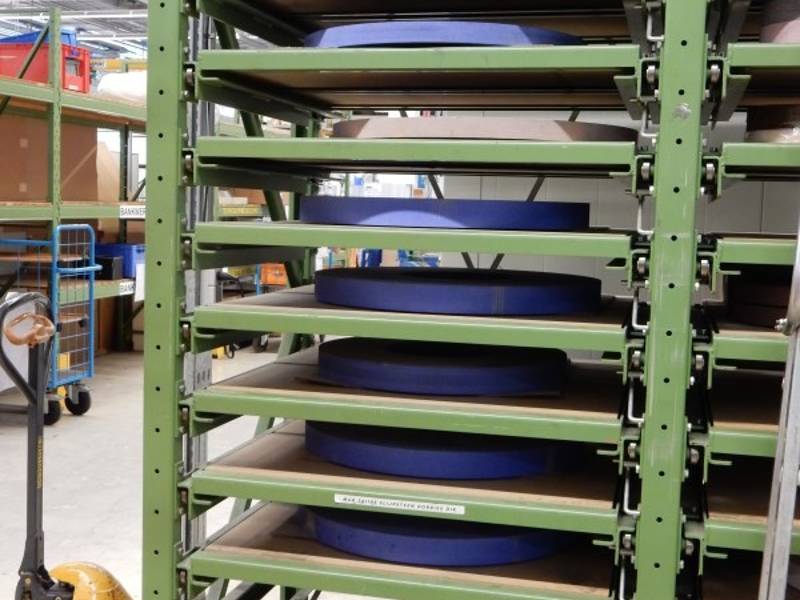

  - Grinding wheels
  - Dustcollector
  - Full housing
  - Full documentation

Country of origin: Germany
Machine weight: 35.000 kg


TECHNICAL SPECIFICATIONS

CNC High Speed Tip Blade Grinder Dörries Scharmann
6-axis controlled
Grinding diameter ø 1.500 mm
Grinding length 100 - 2.000
X-axis travel 2.000 mm
Z-axis travel 650 mm
B-axis travel +20º /-20º (Swifel grinding wheel)
U-axis travel 150 mm (Dresser)
Grinding wheel ø 800 mm (max)
Grinding width 1" - 3''
Grinding wheel speed 300 - 2.000 Rpm
Grinding wheel stroke 650 mm
Feed grinding stroke 0,01 - 5.000 mm/min.
Grinding wheel power 30 kW
Workpiece weight max 1.000 kg
Workpiece spindle speed 100 - 6.000 omw/min.
Stroke of table 2.000 mm
Feed table stroke 0,01 - 5.000 mm/min.
Rotor chucks for - CFM-56-7B / CFM-3
- CF6-50 / LM2500 / LM6000
- CF6-80A / CF6-80C2 / CF680E1
- LM1600
Featured with - CNC laser probe (Y-axis)
- CNC tailstock (W-axis)
- Compressor Master Rotor
- Rotor balancing table
- 2x Dome camera's inside housing
- Grinding wheels
- Dustcollector
- Full housing
- Full documentation
Country of origin Germany
Machine weight 35.000 kg

CNC HSG Grinder Dörries Scharmann

Manufacturer:Dörries Scharmann
Type:HSC 200
